Identifying Connector C601
Identifying Connector C601

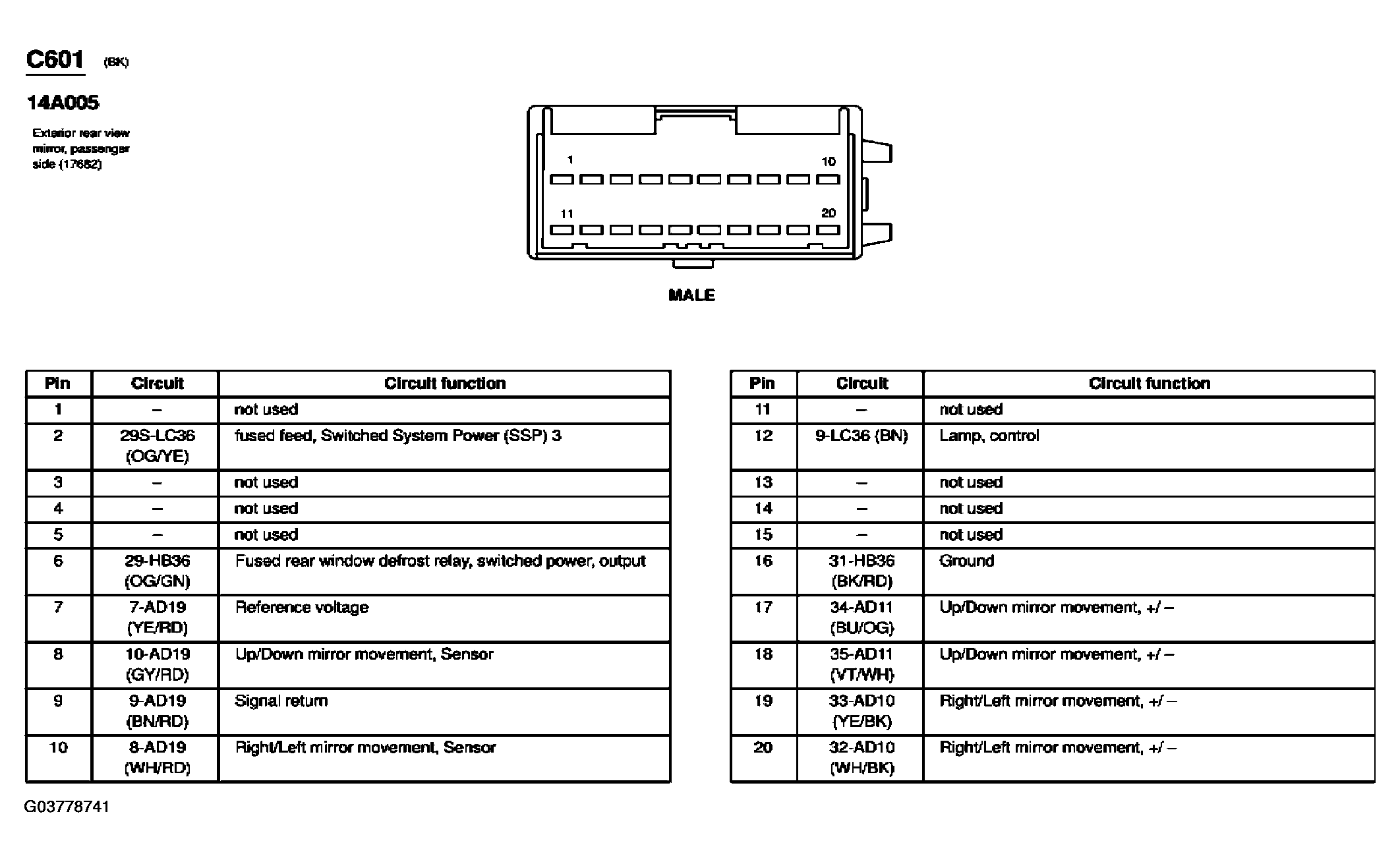

Fig 1: Exterior Rear View Mirror, Passenger Side Connector End View (C601)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
