Front Door Trim Panel: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side is shown. RH side is similar.
  1. Remove the parts in the order indicated in the following illustration.

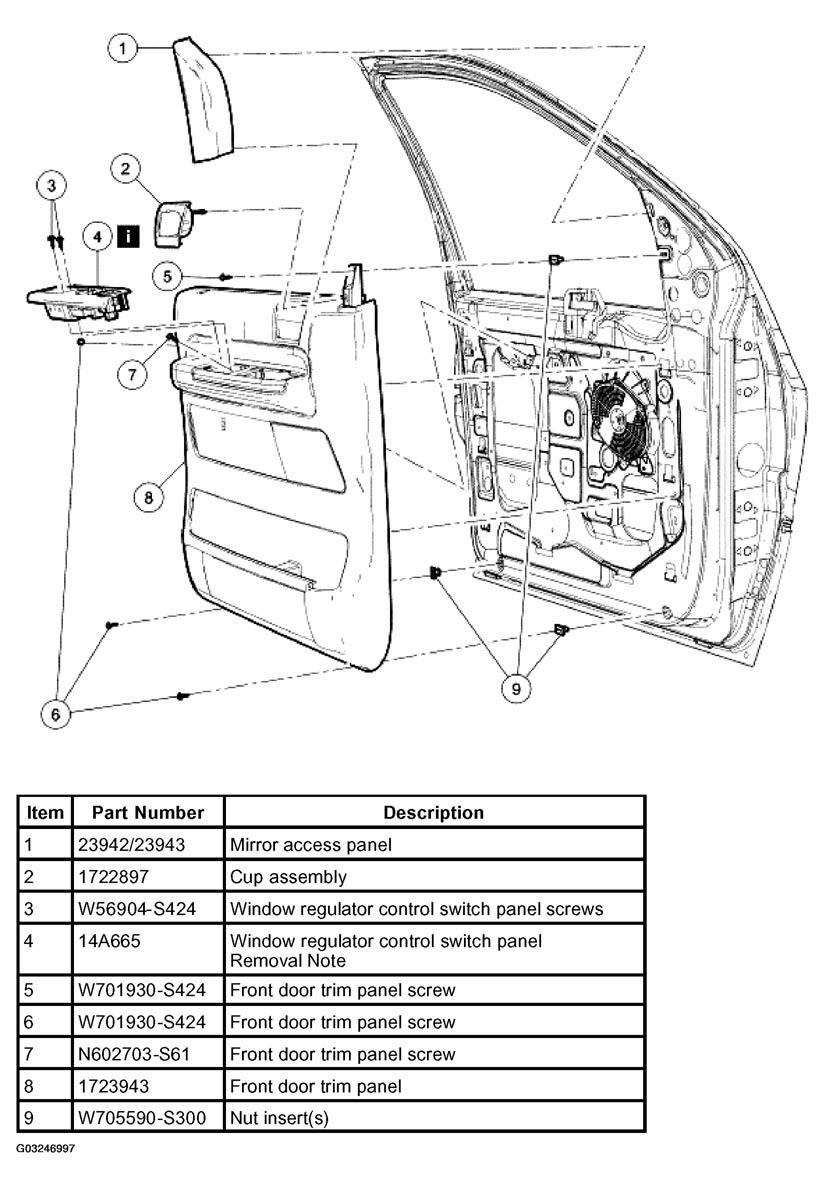

    Fig 1: Removing Front Door Trim Panel
    G03246997Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
