Identifying Connector C520
Identifying Connector C520

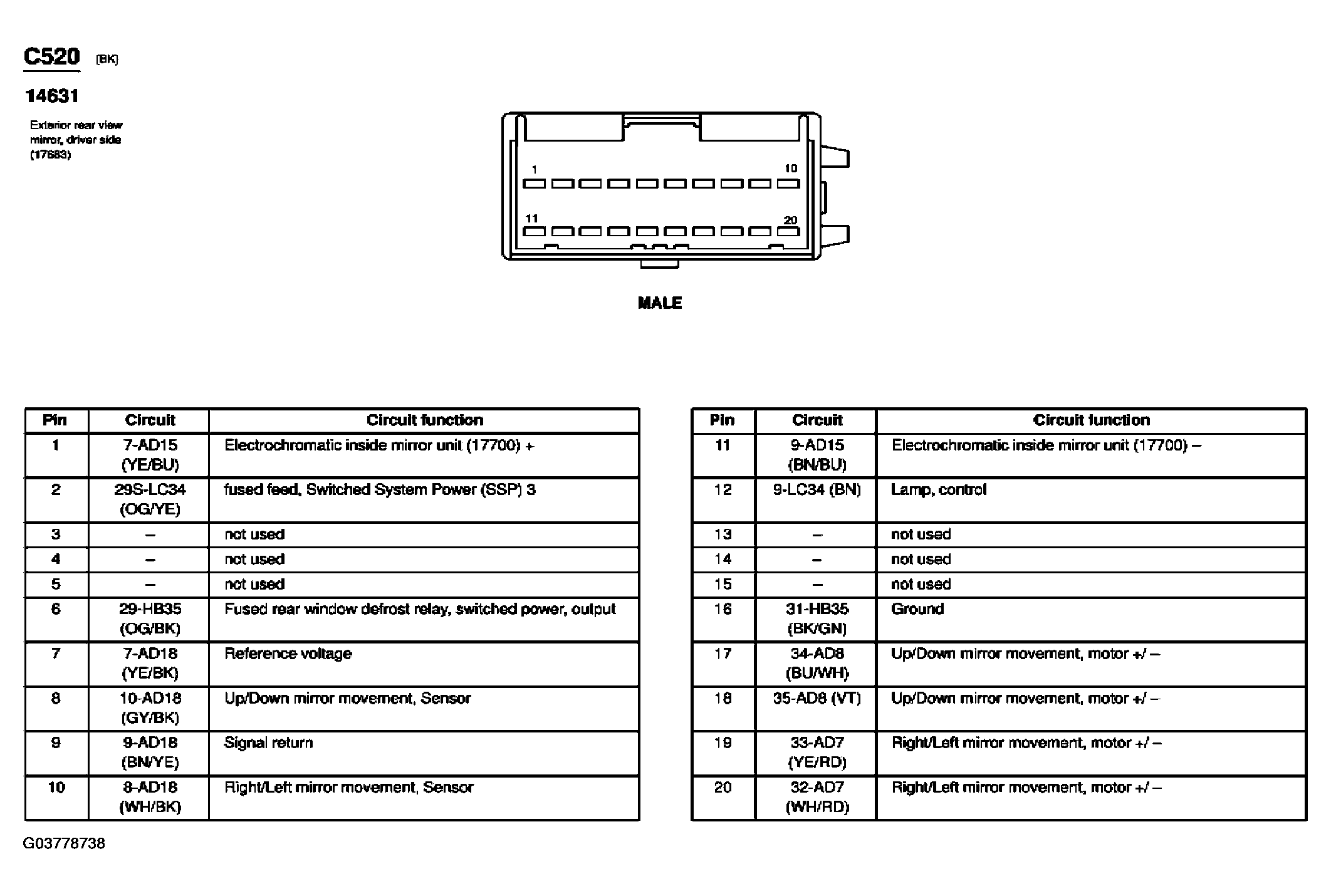

Fig 1: Exterior Rear View Mirror, Driver Side Connector End View (C520)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
