Identifying Connector C420c
Identifying Connector C420c

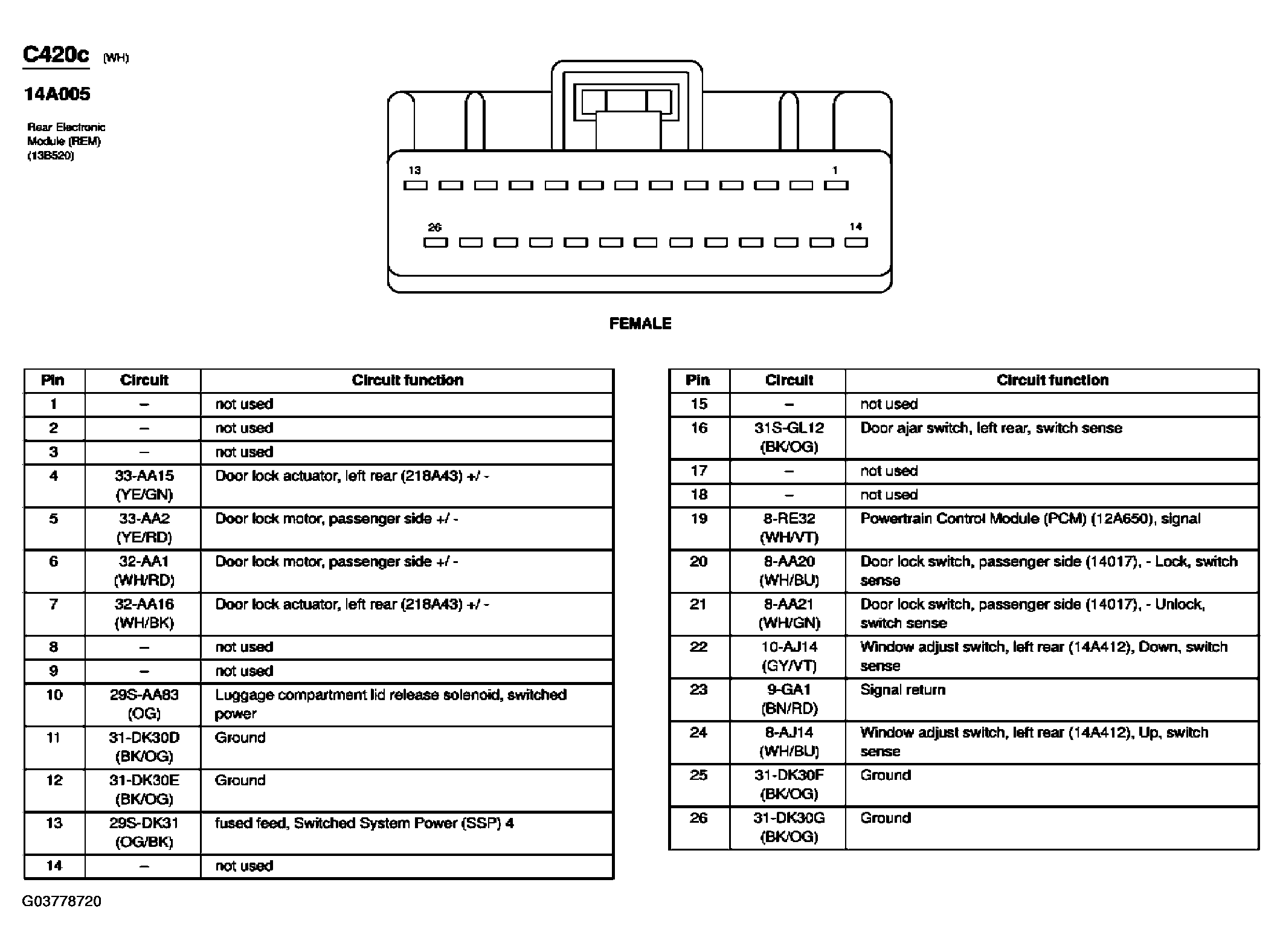

Fig 1: Rear Electronic Module (REM) Connector End View (C420c)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
