Identifying Connector C3031a
Identifying Connector C3031a

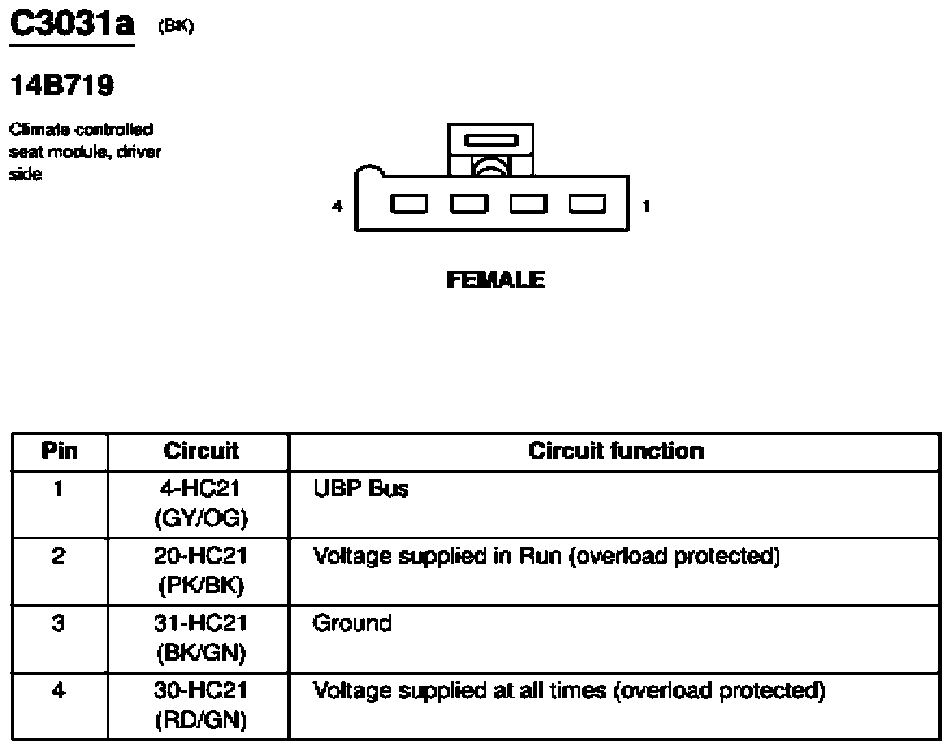

Fig 1: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
