Identifying Connector C310a

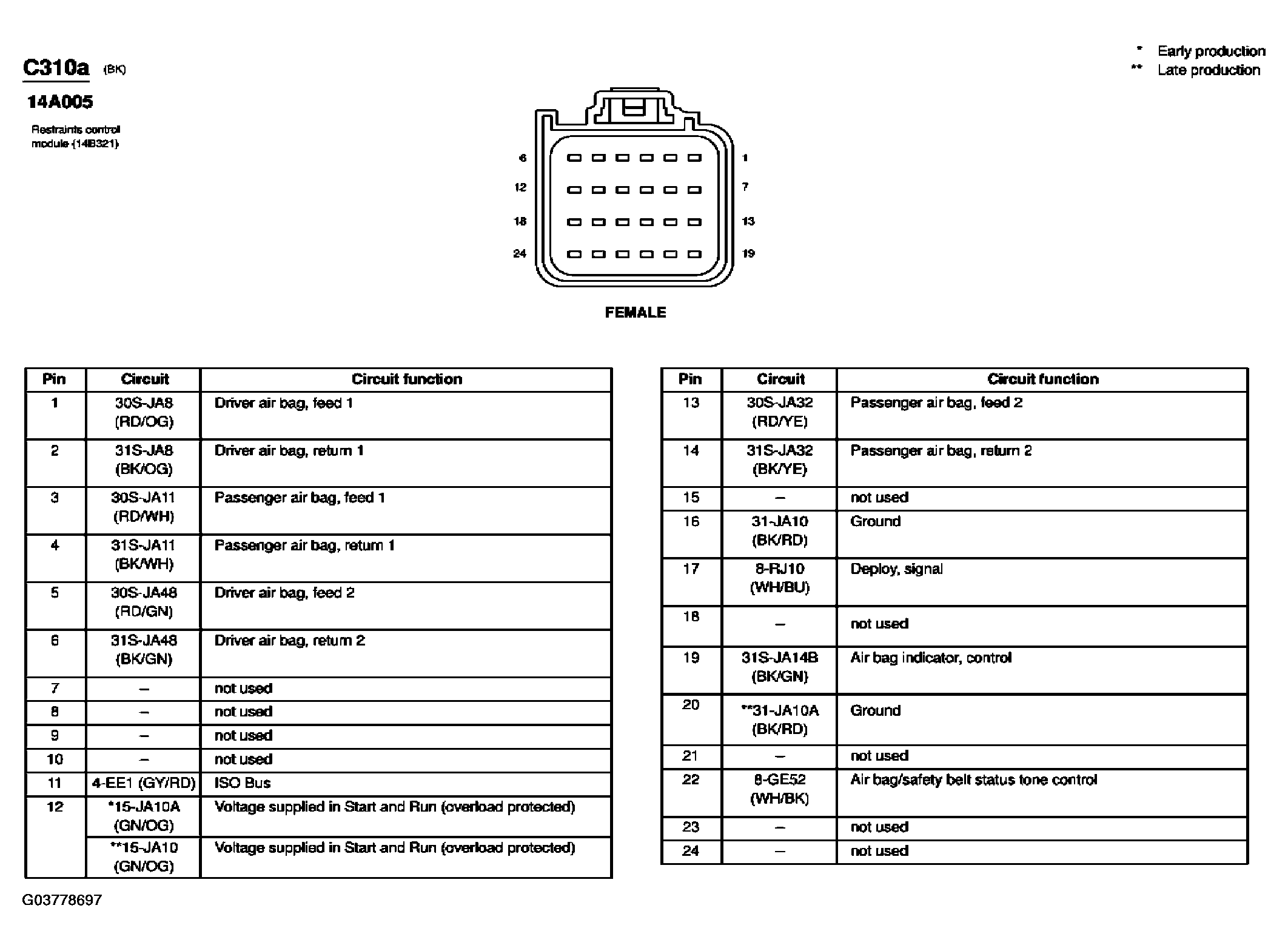

Fig 1: Restraints Control Module Connector End View (C310a)
G03778697Courtesy of FORD MOTOR CO.
