Identifying Connector C228a
Identifying Connector C228a

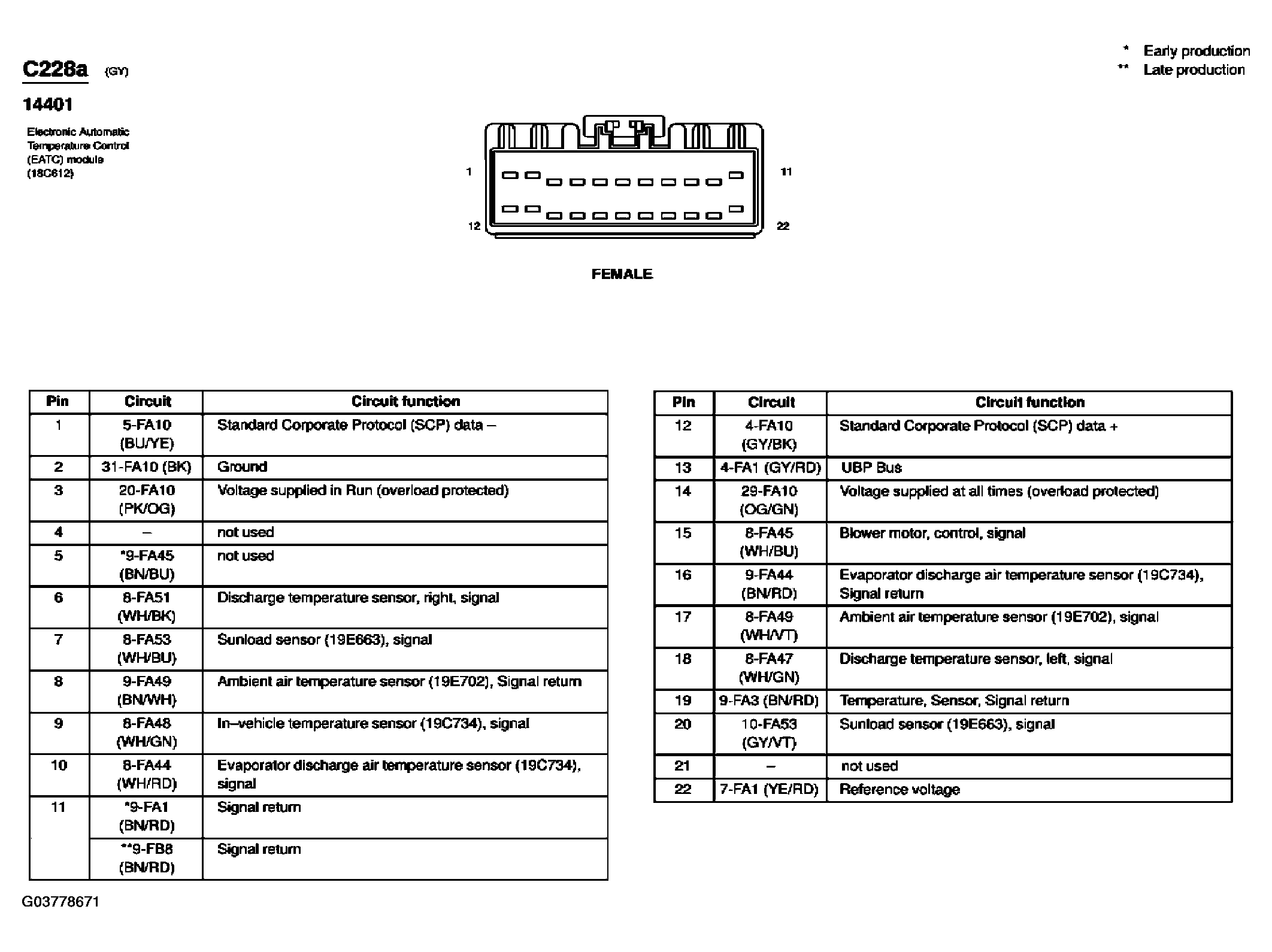

Fig 1: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
