Identifying Connector C201e
Identifying Connector C201e

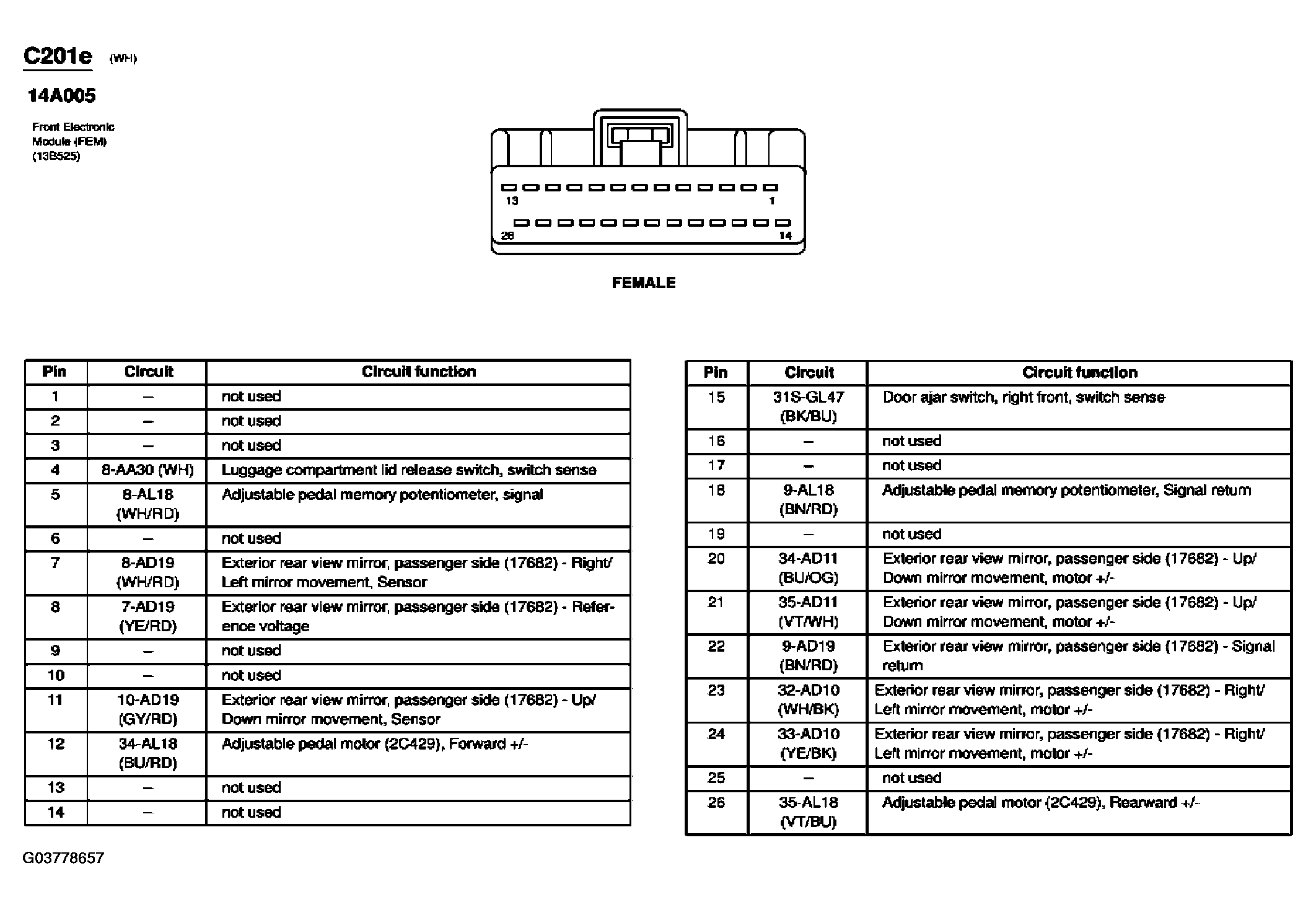

Fig 1: Front Electronic Module (FEM) Connector End View (C201e)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
