Identifying Connector C155
Identifying Connector C155

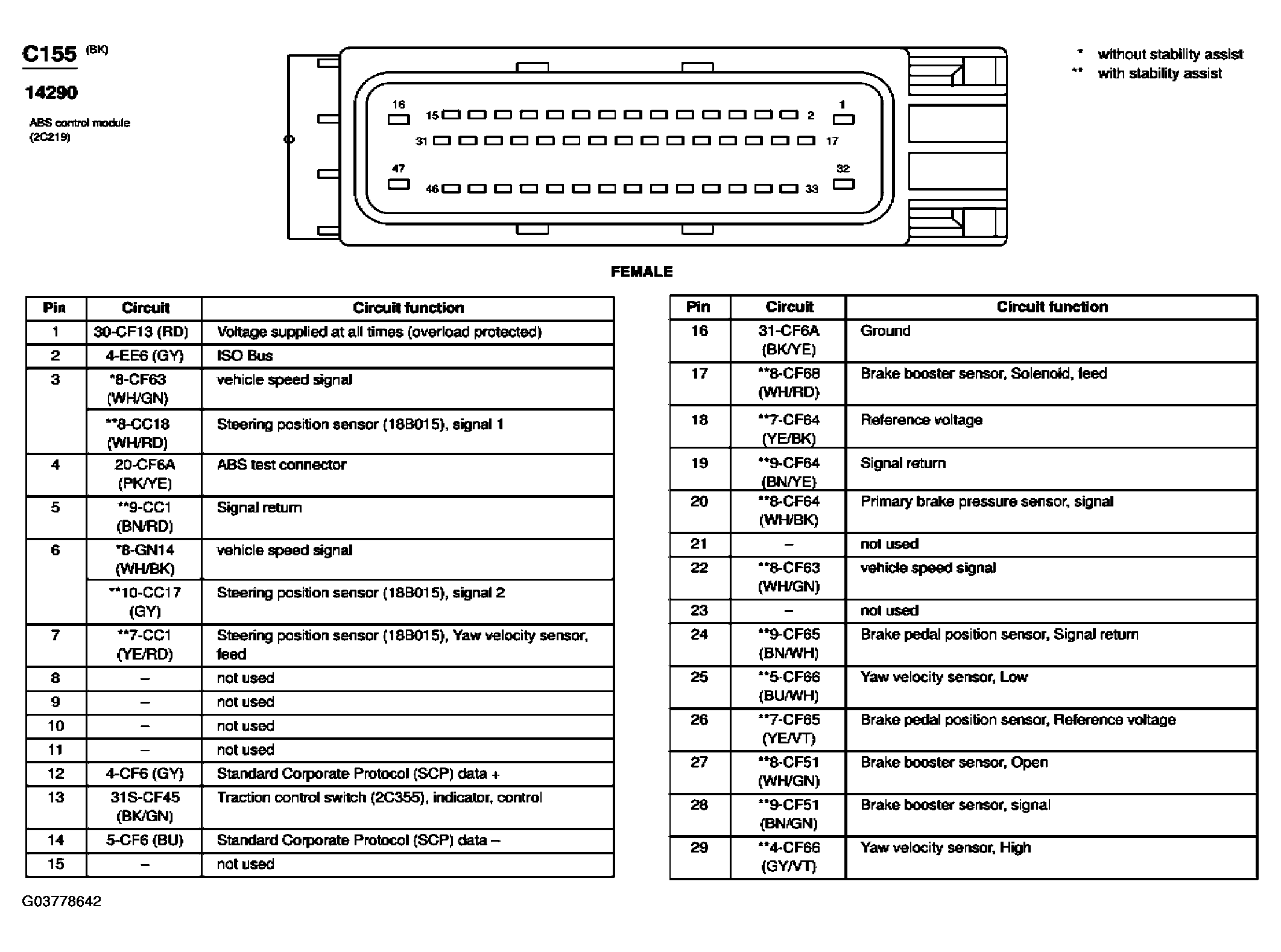

Fig 1: ABS Control Module Connector End View (C155) (1 Of 2)
Courtesy of FORD MOTOR CO.

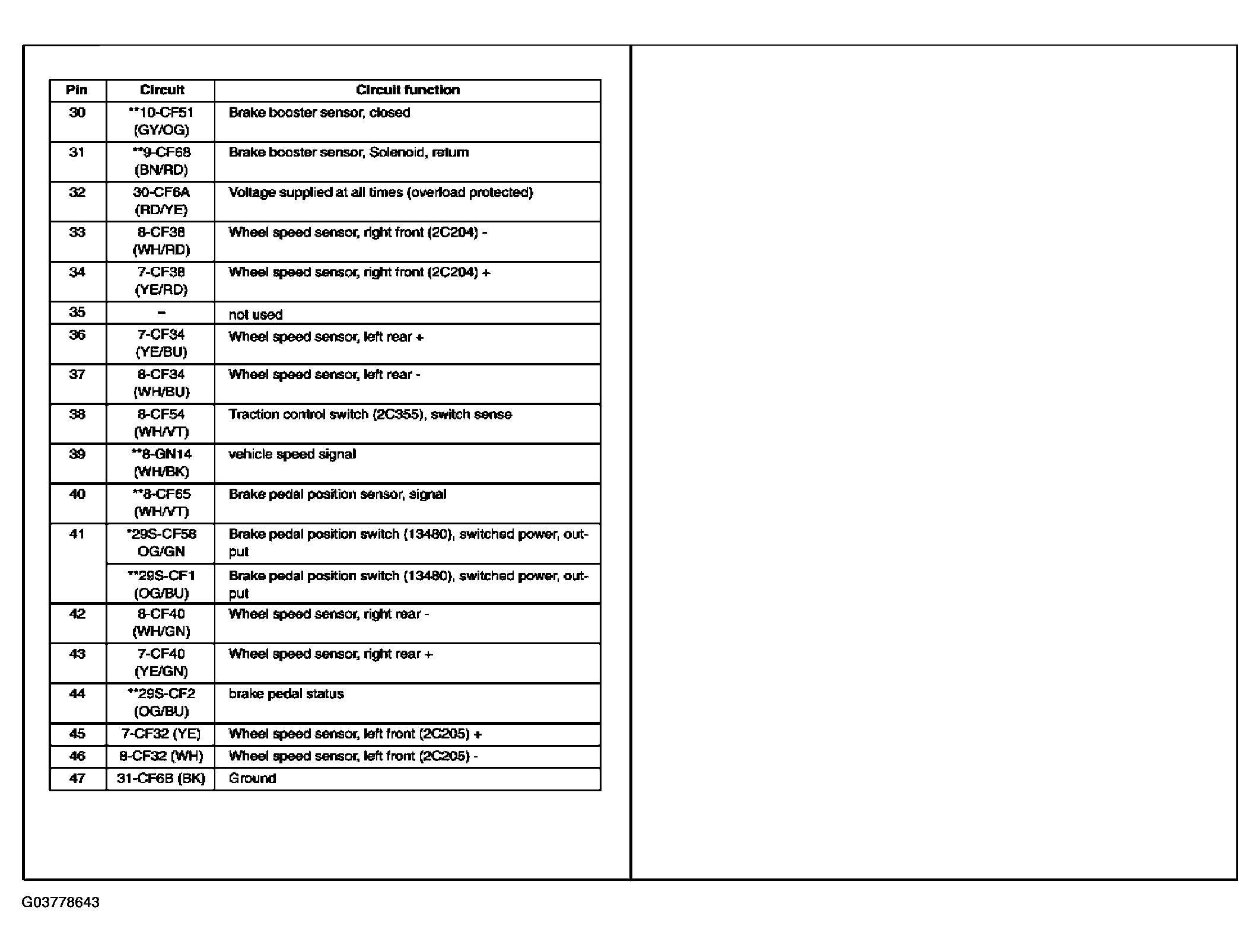

Fig 2: ABS Control Module Connector End View (C155) (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
