Valve Spring Squareness

  1. Measure the out-of-square on each valve spring.
    • Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. Refer to ENGINE - 3.0L (4V) or ENGINE - 3.9L for the procedure.

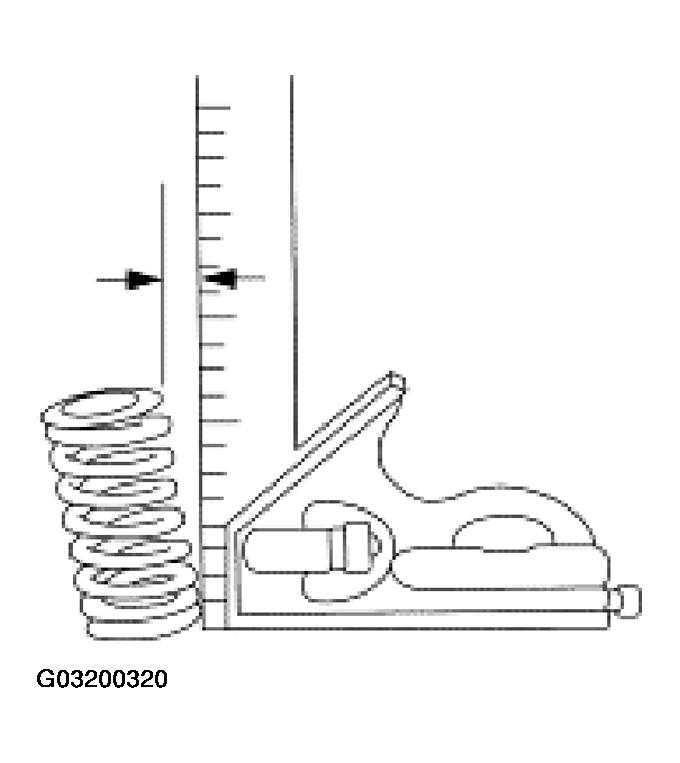

    Fig 1: Measuring Out-Of-Square On Valve Spring
    G03200320Courtesy of FORD MOTOR CO.
