Solenoid Body Assembly: Material

MATERIAL SPECIFICATIONS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON®V
  1. With the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration and table.

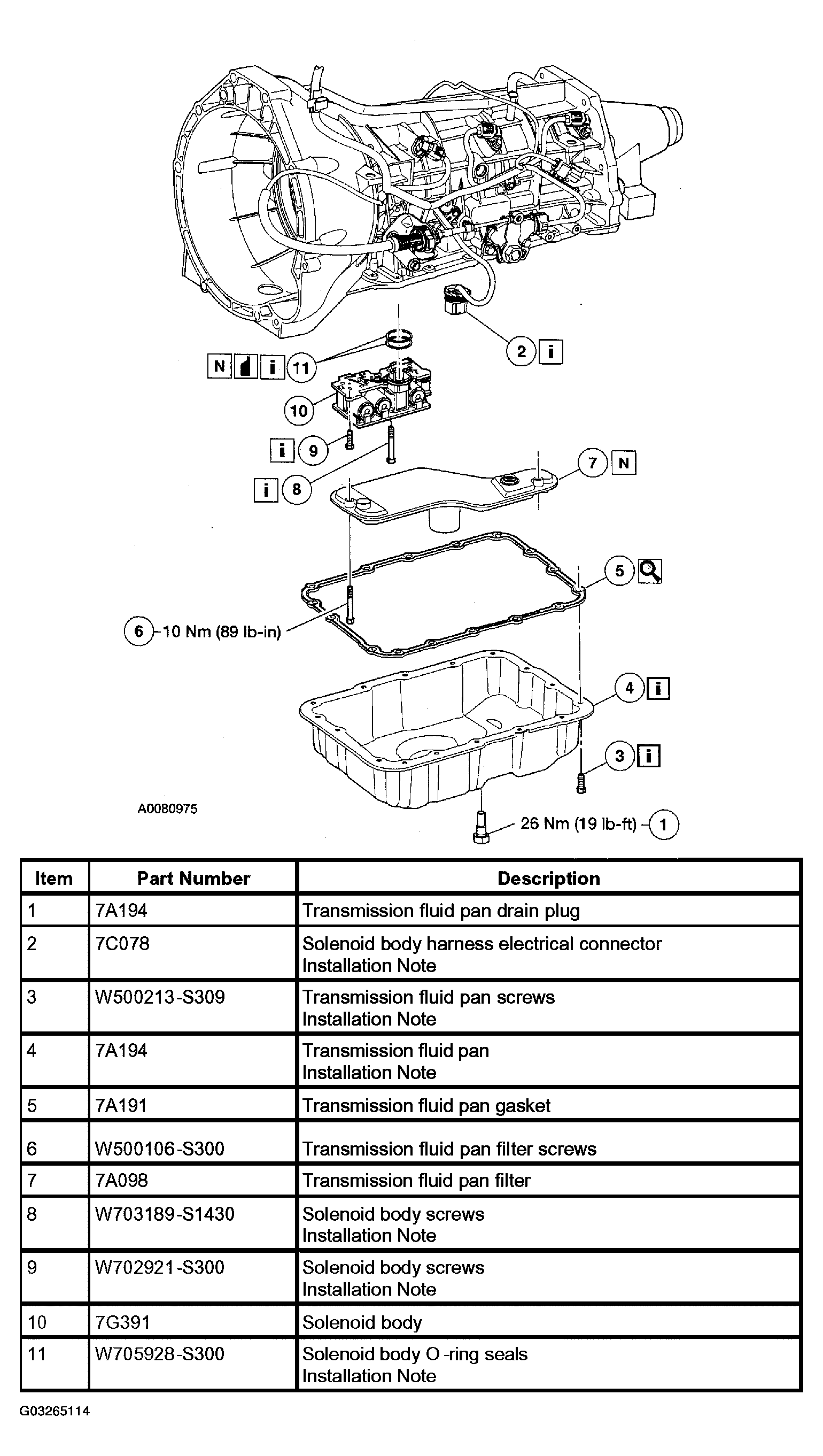

    Fig 1: Removing Transmission Fluid Pan Components
    G03265114Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
  4. Fill the transmission with clean automatic transmission fluid. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
