Extension Housing Gasket - 4X2: Notes

  1. Remove the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
  2. Support the transmission with a suitable jack.
  3. Remove the rear transmission support insulator. For additional information, refer to TRANSMISSION SUPPORT INSULATOR - 4X2 .
  4. Remove the parts in the order indicated in the following illustration and table.

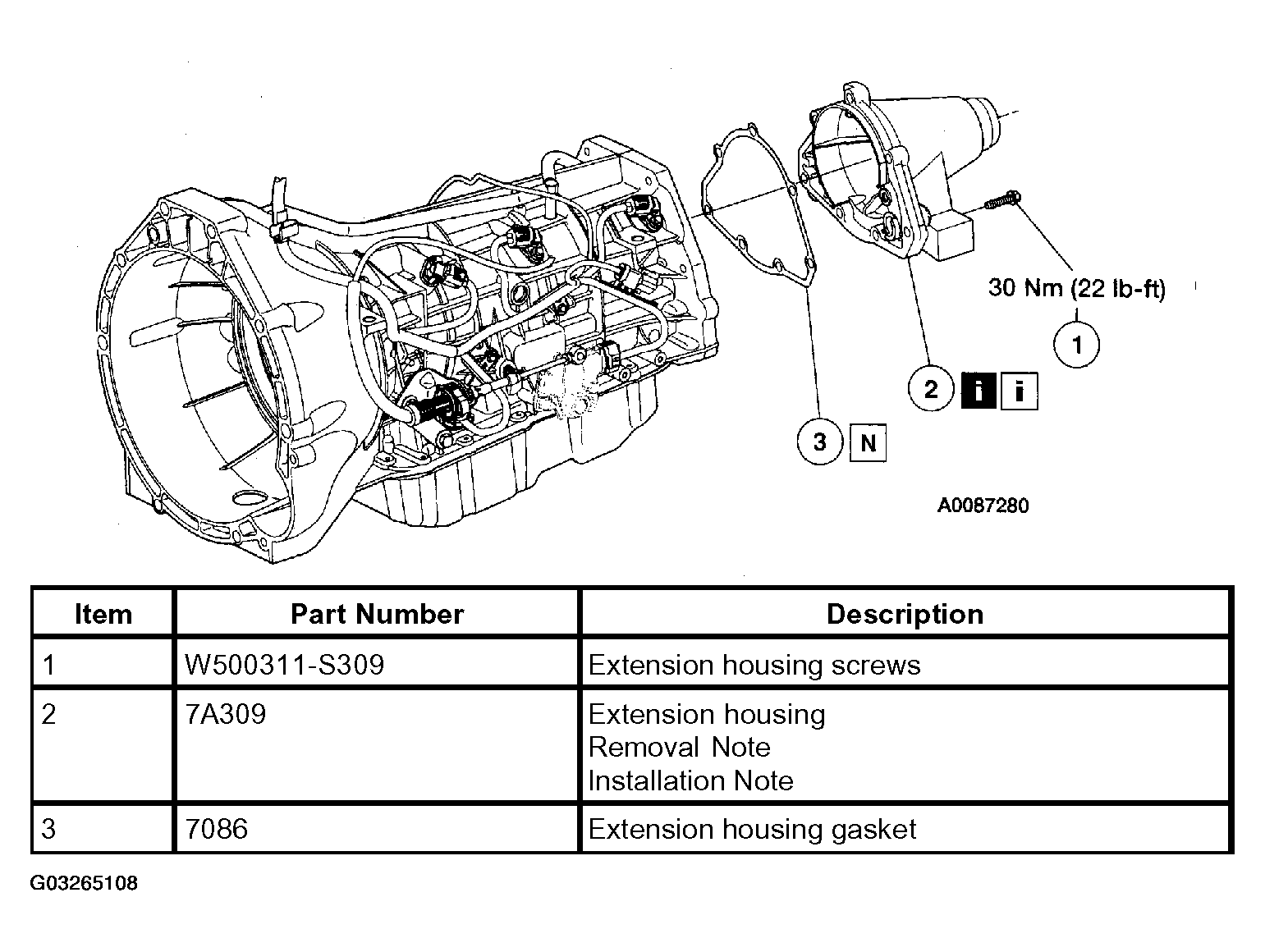

    Fig 1: Removing Extension Housing Components
    G03265108Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
  6. Fill the transmission with clean automatic transmission fluid. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
