Item 64: Center Support Assembly Disassembly Note

NOTE: The center support is repaired as an assembly. Any damage requires installing a new component.
    NOTE: When removing the center support, pull evenly around the center support web.

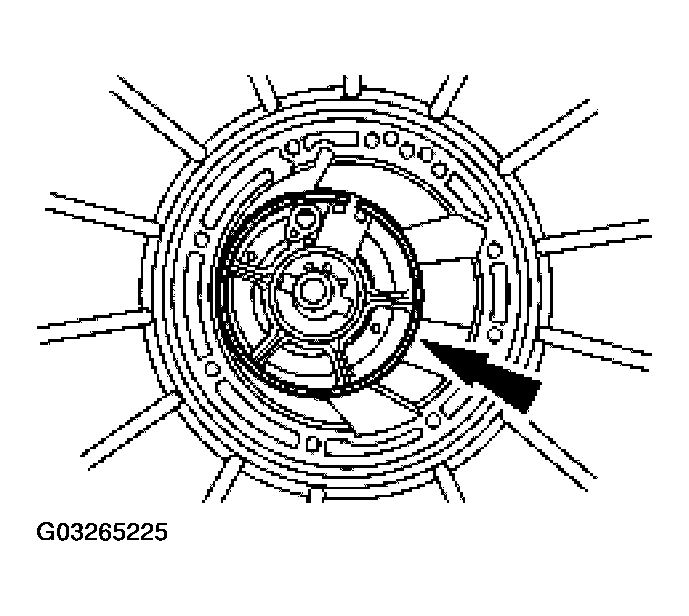

    Fig 1: Removing Center Support
    G03265225Courtesy of FORD MOTOR CO.
  1. Remove the center support.
