Item 5: Retaining Ring Disassembly Note

    WARNING: Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions may result in personal injury.
    CAUTION: Do not fully depress the special tool or damage to the spring retainer may occur.

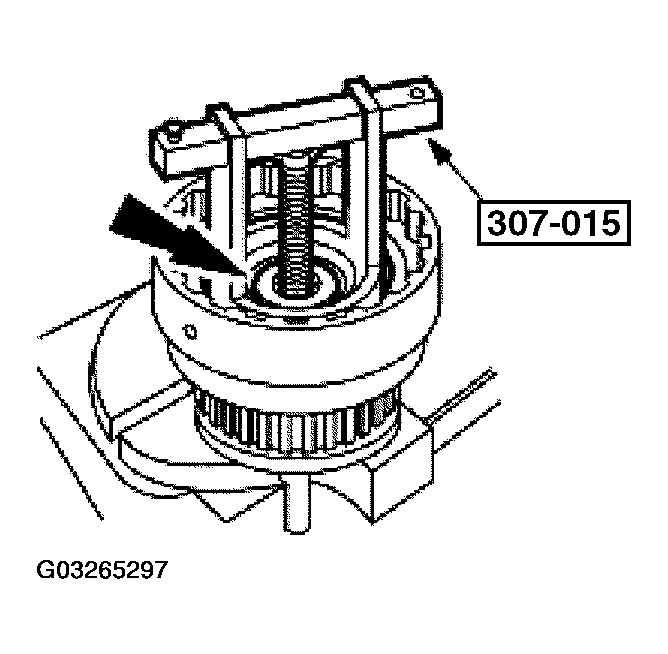

    Fig 1: Removing Forward Clutch Piston Retaining Ring
    G03265297Courtesy of FORD MOTOR CO.
  1. Using the special tool, remove the forward clutch piston retaining ring.
