Direct Clutch Drum Assembly: Material

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON®V

NOTE: Inspect the clutch components for damage or wear. Install new components as necessary.

Inspect the drum surface for damage.
Inspect the clutch piston bore and piston.
Check the fluid passages for obstructions. All fluid passages must be clean and free of obstructions.
Inspect the clutch plates for damage.
Inspect the clutch springs.

Disassemble the parts in the order indicated in the following illustration and table.

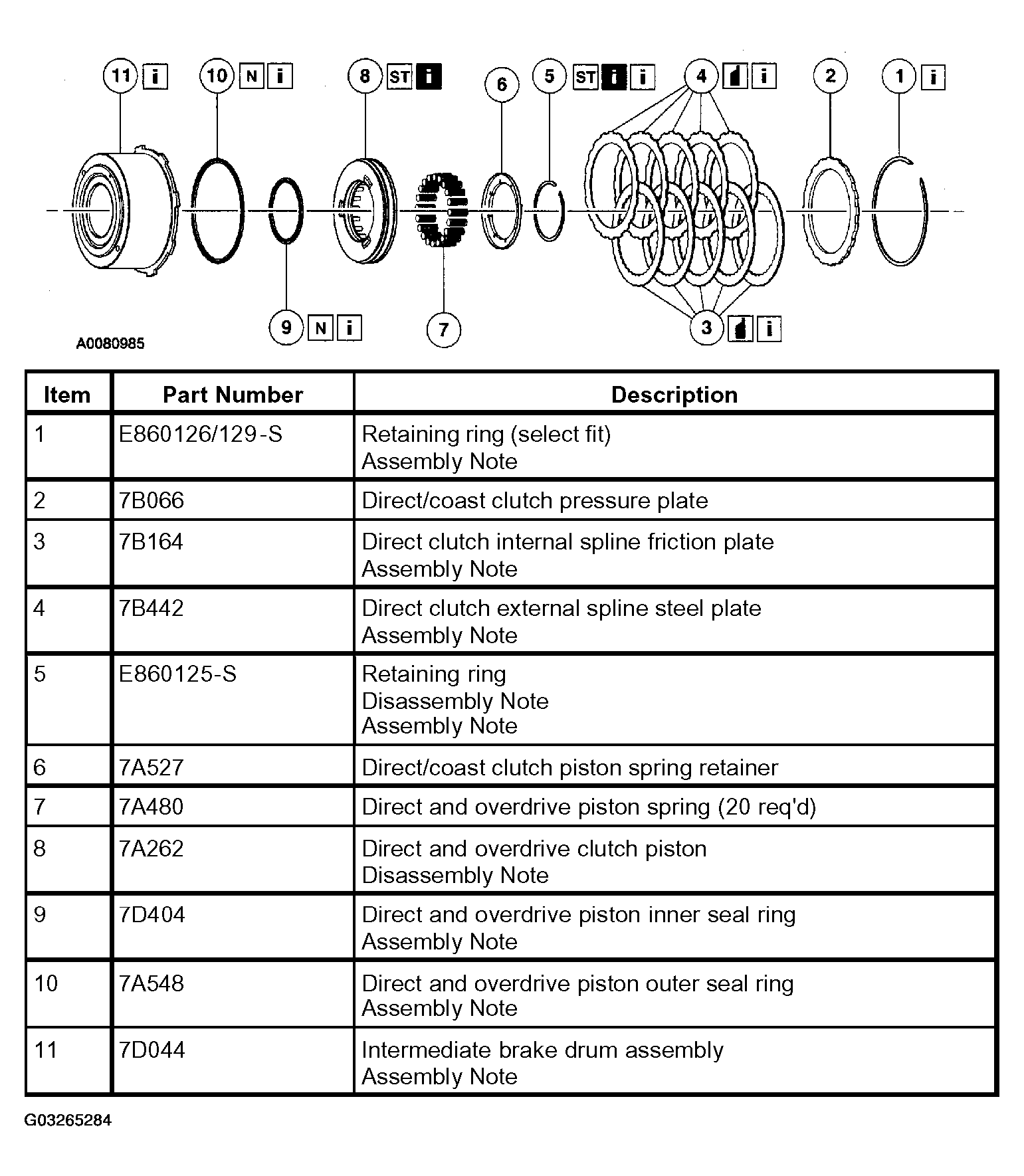

Fig 1: Exploded View Of Direct Clutch Drum Assembly Components
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
