Item 45: Retaining Ring Assembly Note

    CAUTION: Install the center support retaining ring with the tapered side facing up.
    CAUTION: Make sure the notch opening is not obstructed by the center support retaining ring.

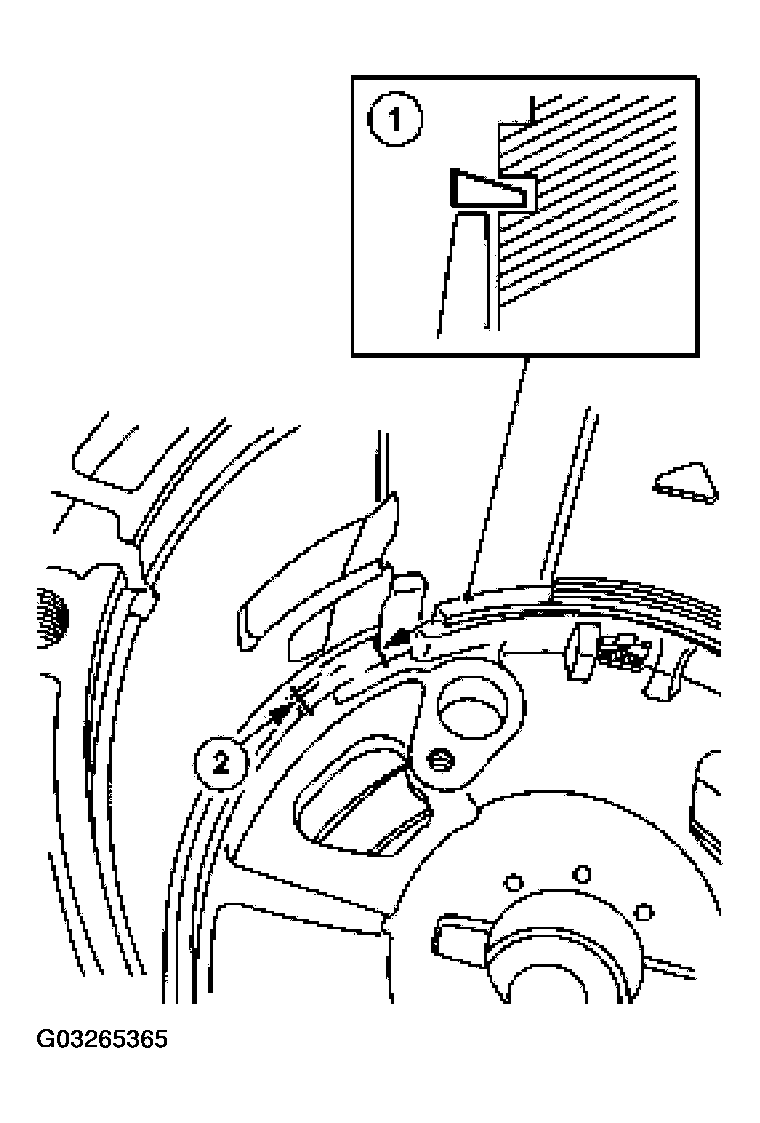

    Fig 1: Installing Center Support Retaining Ring
    G03265365Courtesy of FORD MOTOR CO.
  1. Install the center support retaining ring.
    1. Make sure the center support retaining ring is installed with the tapered side facing up.
    2. Make sure the opening of the center support retaining ring is positioned correctly.
