Liftgate Trim Panel

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration.
  2. To install, reverse the removal procedure.

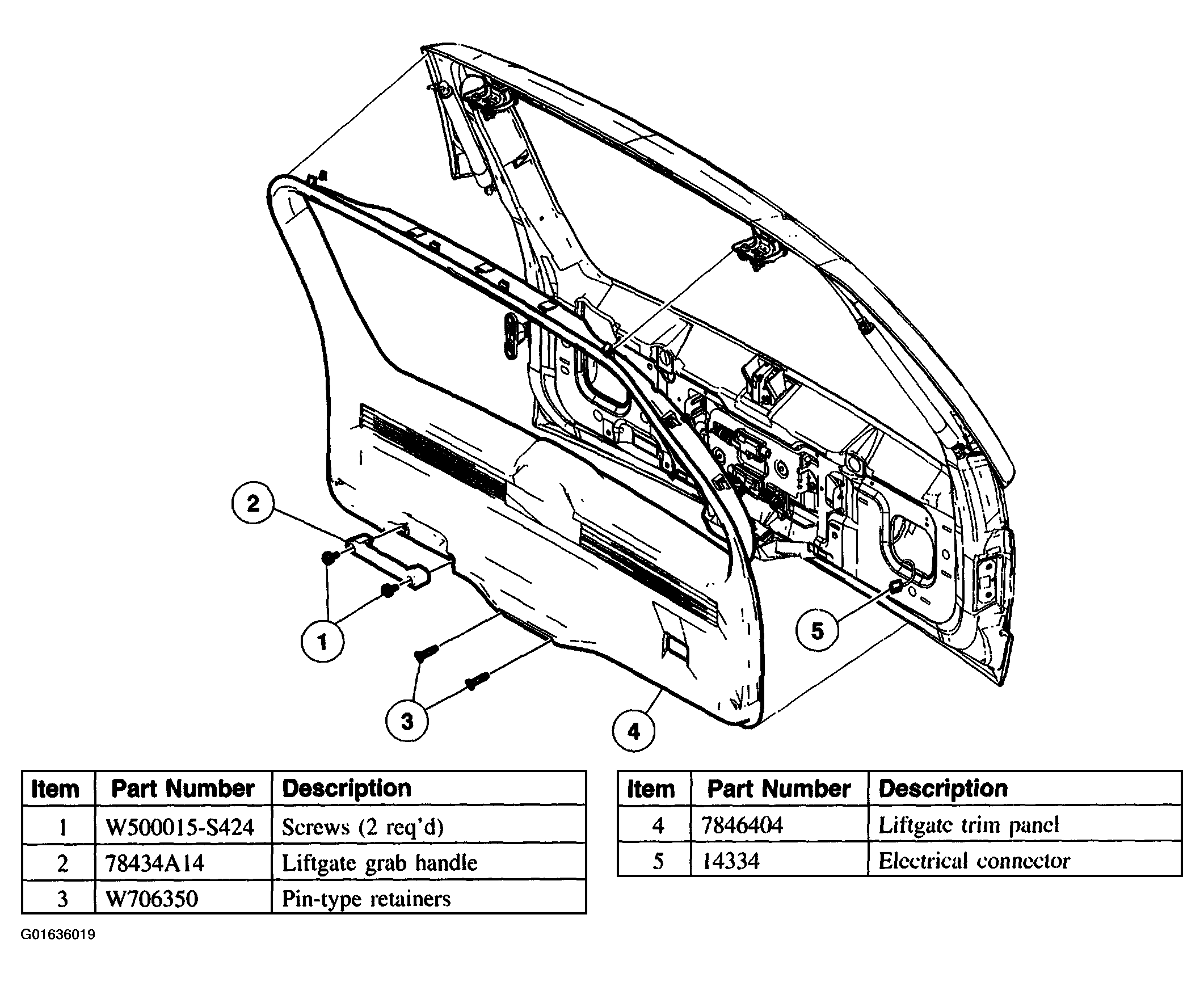

    Fig 1: Liftgate Trim Panel Removal Procedure
    G01636019Courtesy of FORD MOTOR CO.
