Ambient Air Temperature Sensor

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper radiator sight shield.
  2. Remove the ambient air temperature sensor.
  3. To install, reverse the removal procedure.

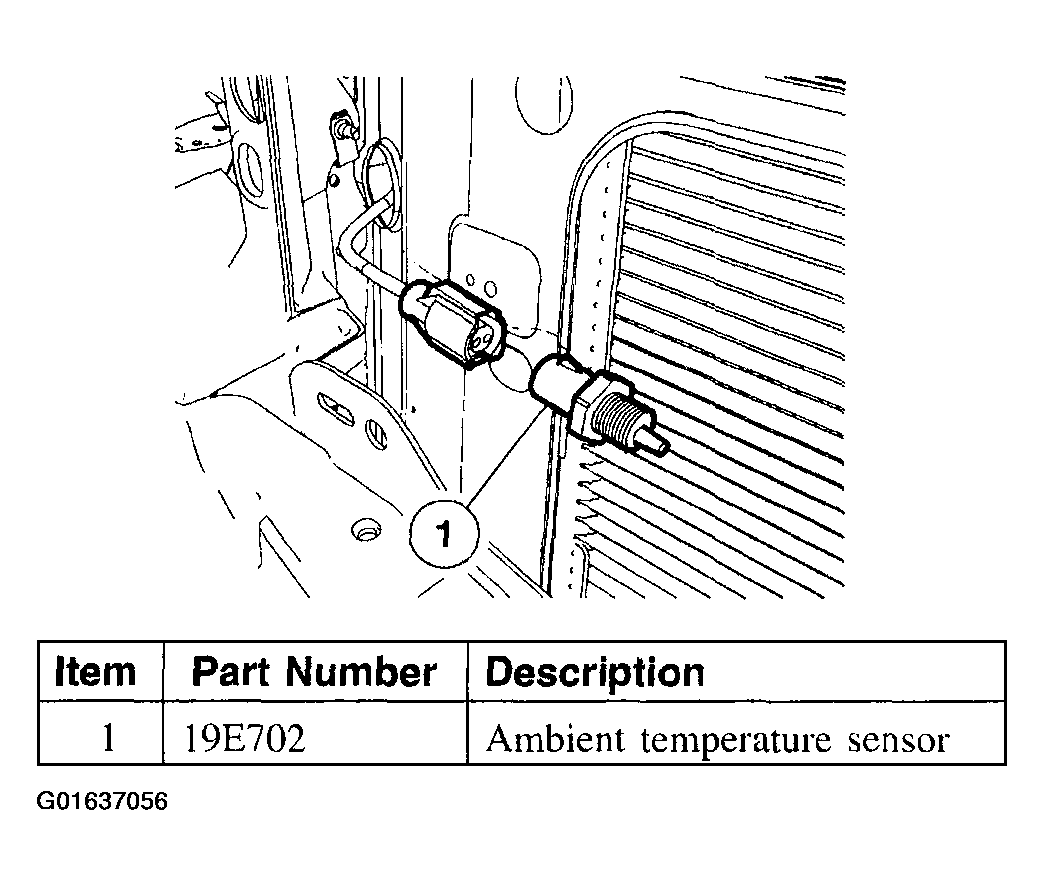

    Fig 1: Locating Ambient Air Temperature Sensor
    G01637056Courtesy of FORD MOTOR CO.
