Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
Remove the components in the order indicated in the following illustration.
To install, reverse the removal procedure.

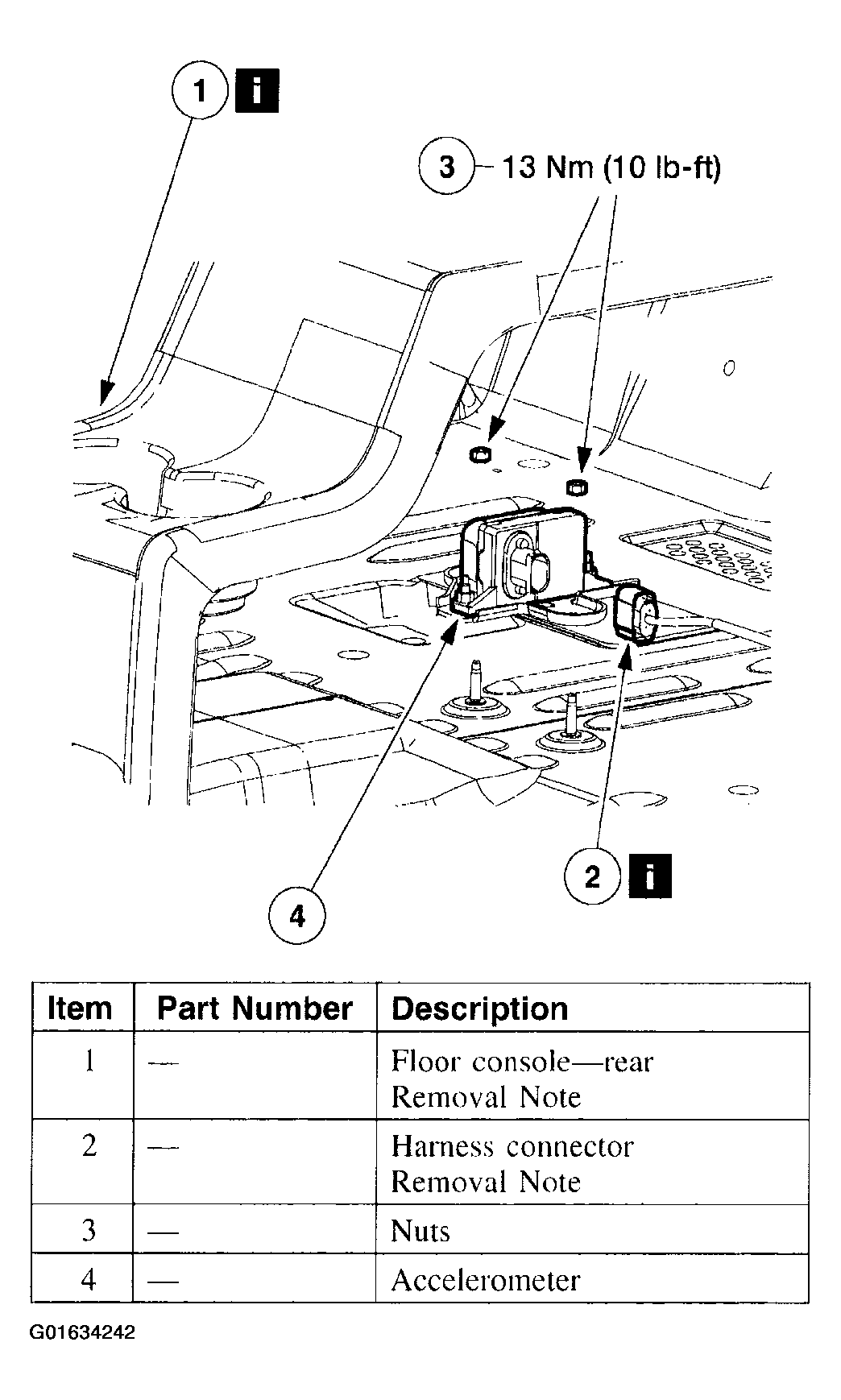

Fig 1: Removing Accelerometer Components Sequence
Courtesy of FORD MOTOR CO.

Item 1: Floor Console - Rear Removal Note

If equipped, remove the floor console - rear. For additional information, refer to BODY SYSTEM - INTERIOR .

Item 2: Harness Connector Removal Note

Fold back the carpeting flap to gain access to the accelerometer connector.
