Home >> Lincoln >> 2004 >> Aviator RWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Positive Crankcase Ventilation (PCV) Valve >> Notes

Positive Crankcase Ventilation (PCV) Valve: Notes

  1. Remove the engine cover.
  2. Remove the parts in the order indicated in the following illustration and table.

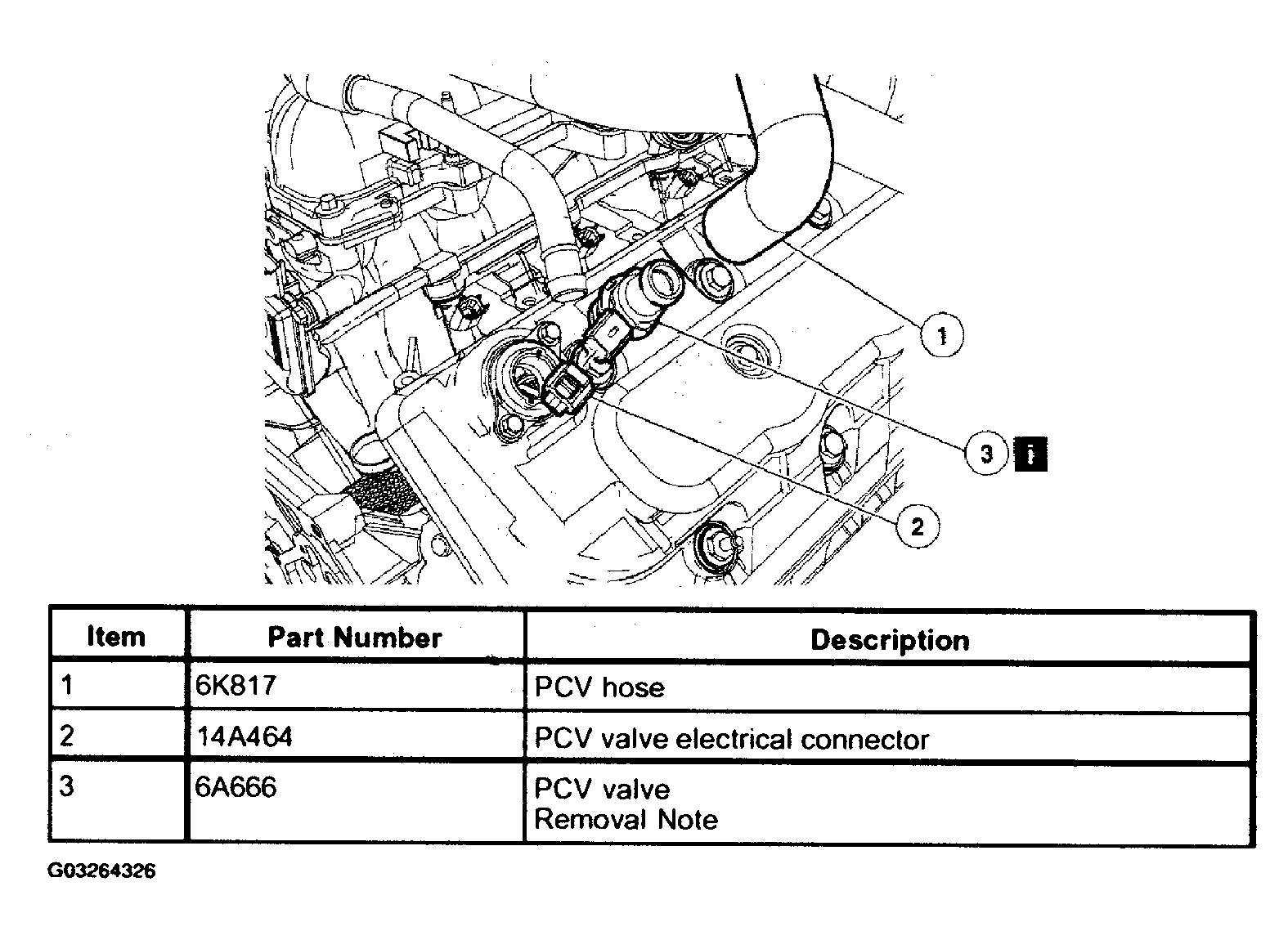

    Fig 1: Positive Crankcase Ventilation (PCV) Valve
    G03264326Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
