Exhaust Gas Recirculation (EGR) Valve: Notes

    NOTE: Access to the exhaust gas recirculation (EGR) tube is through the right front wheel well.
  1. If removal of the EGR tube is necessary, with the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to IDENTIFICATION CODES .
  2. Remove the parts in the order indicated in the following illustration and table.

    TO REMOVE INDIVIDUAL PARTS, ONLY CARRY OUT THE LISTED STEPS:

    EGR VALVE COMPONENT REMOVAL STEPS

    Part Steps
    Exhaust manifold-to-exhaust gas recirculation valve system module tube 1-3
    EGR valve system module 2, 4-7

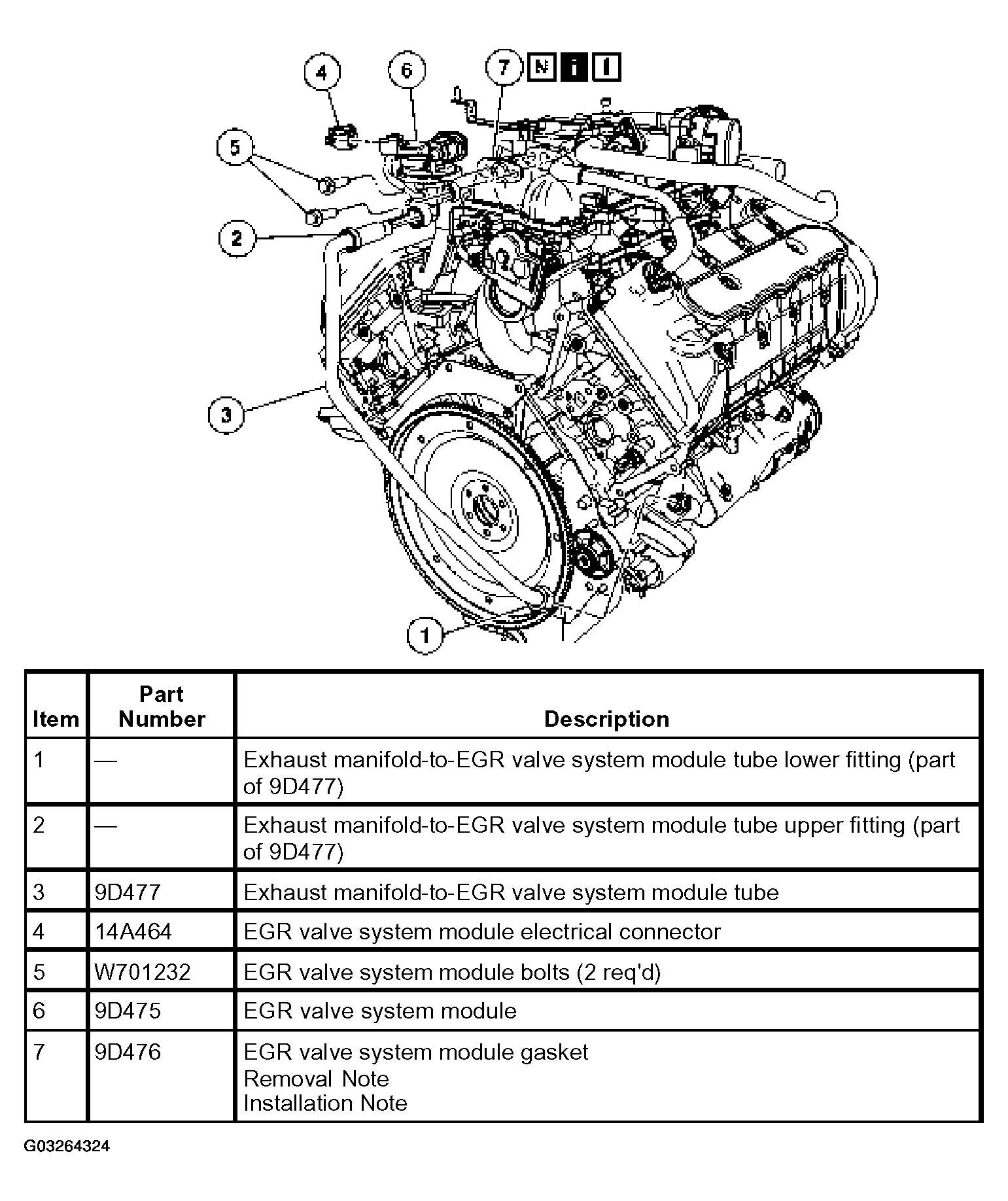

    Fig 1: Removing EGR Valve System Module
    G03264324Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
