Items 9 and 10: Piston and Connecting Rod Assembly Note

    NOTE: Connecting rod must be installed into the piston with identification markings toward the front.

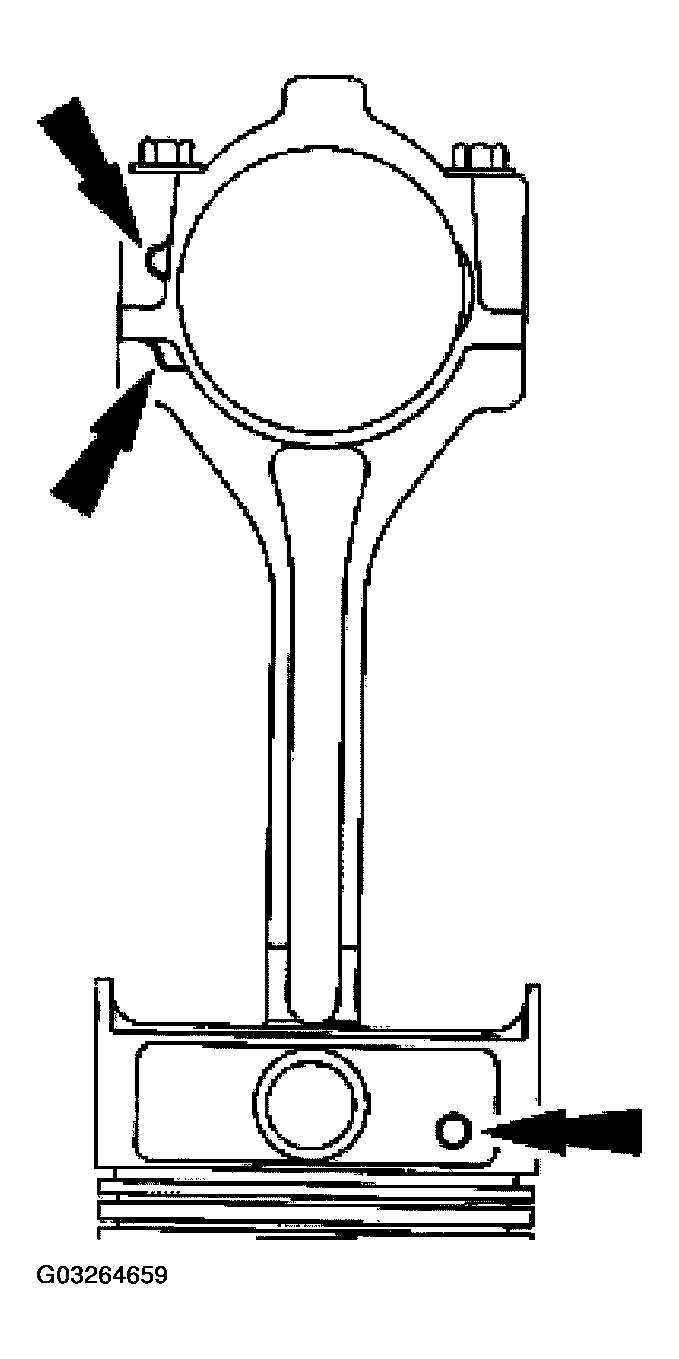

    Fig 1: Positioning Connecting Rod In Piston
    G03264659Courtesy of FORD MOTOR CO.
  1. Position the connecting rod in the piston.
