Home >> Lincoln >> 2004 >> Aviator RWD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Anti-Lock Control >> Removal And Installation >> Front Wheel Speed Sensor >> Removal And Installation

Removal And Installation

  1. Disconnect the battery.
  2. Remove the RH front rotor. For additional information, REFER to BRAKE SYSTEM .
  3. Remove the parts in the order indicated in the following illustration and table.

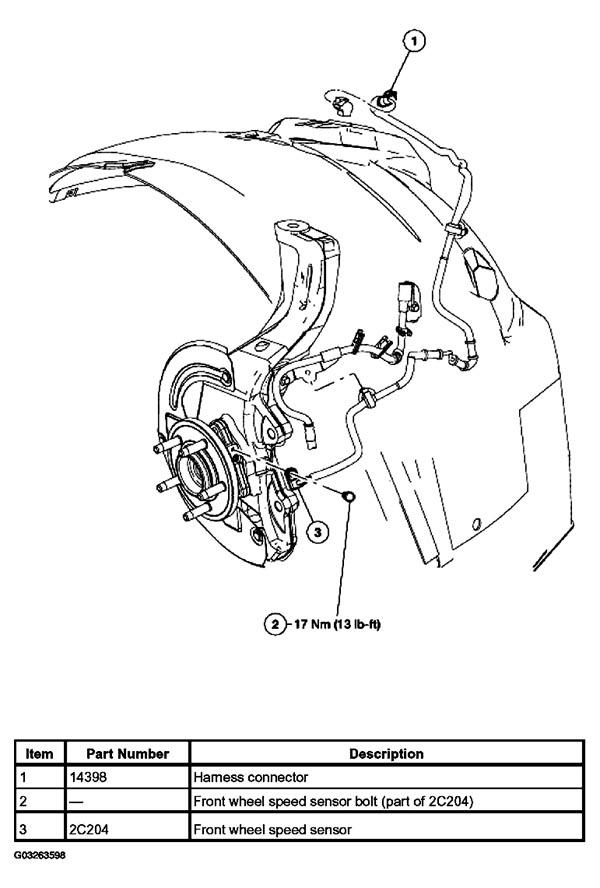

    Fig 1: Identifying Removal Order Of Front Wheel Speed Sensor Components
    G03263598Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
