Removal And Installation

  1. Disconnect the battery.
  2. Remove the second row seats. For additional information, refer to SEATING .
  3. Remove the rear floor console. For additional information, refer to BODY SYSTEM - INTERIOR .
  4. Remove the parts in the order indicated in the following illustration and table.

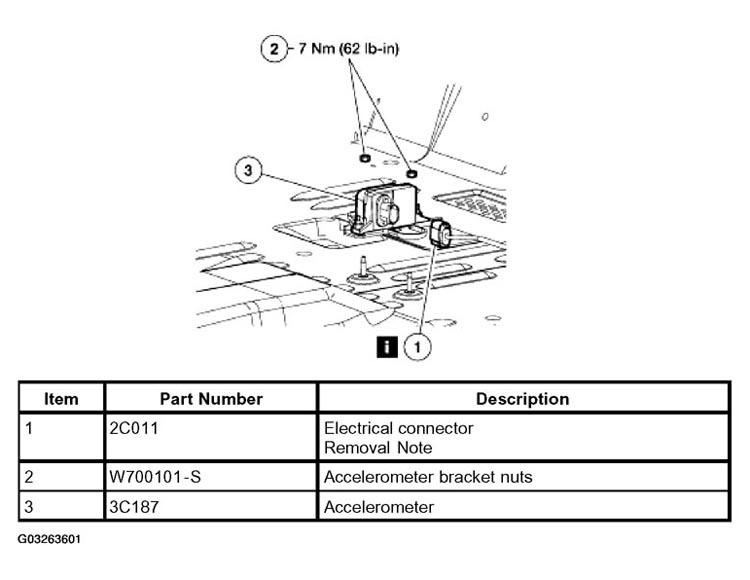

    Fig 1: Identifying Removal Order Of Accelerometer Components
    G03263601Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
