Item 1: Transmission Assembly Installation Note

Install the special tool.

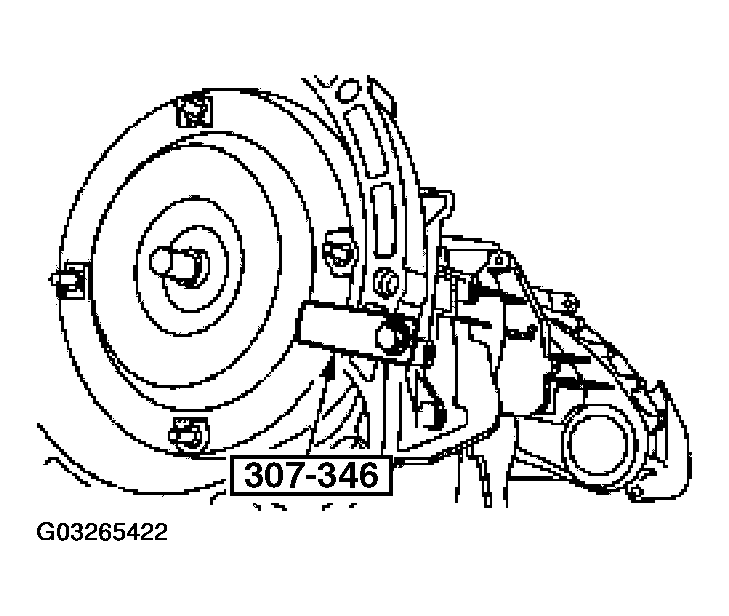

Fig 1: Installing Special Tool
Courtesy of FORD MOTOR CO.

NOTE: Align the flexplate-to-converter marks made during the removal procedure.

Raise and position the transmission to the back of the engine. Remove the special tool prior to attaching the transmission to the engine.
Install the seven engine-to-transmission retaining bolts.

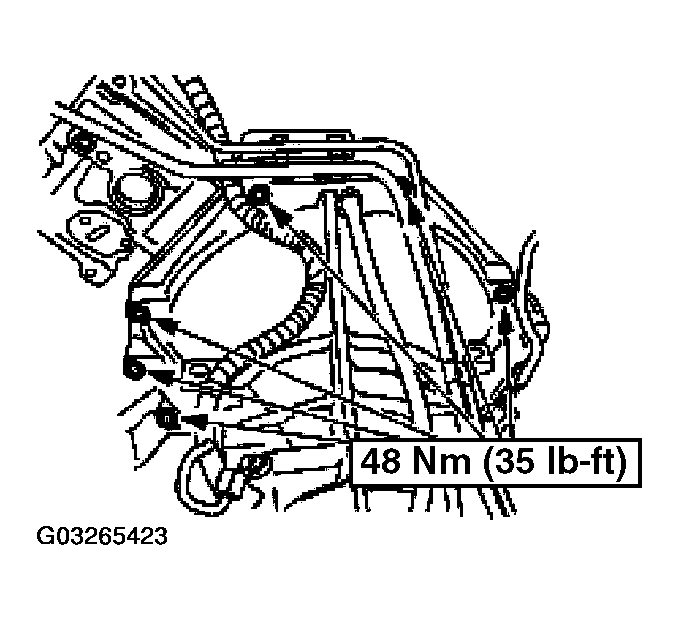

Fig 2: Installing Seven Engine-To-Transmission Retaining Bolts
Courtesy of FORD MOTOR CO.
Position the fuel line bracket into place prior to installing the transmission retaining screws.
