Item 5: TR Sensor Screws Installation Note

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual lever must be in the NEUTRAL position.

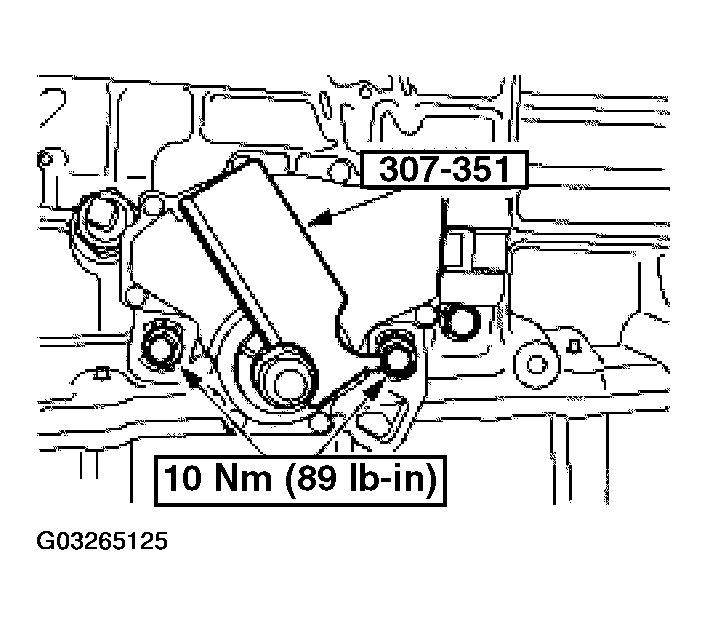

Fig 1: Tightening Screws In Alternating Sequence

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
