Item 62: Band Adjusting Lock Nut Assembly Note

    CAUTION: Do not allow the intermediate band adjusting screw to back out. The band strut could fall out of position.<
    Fig 1: Installing Nut On Band Adjustment Screw
    G03265386Courtesy of FORD MOTOR CO.
  1. Install a new nut on the band adjustment screw.
    2. CAUTION: The intermediate servo must be installed prior to band adjustment.

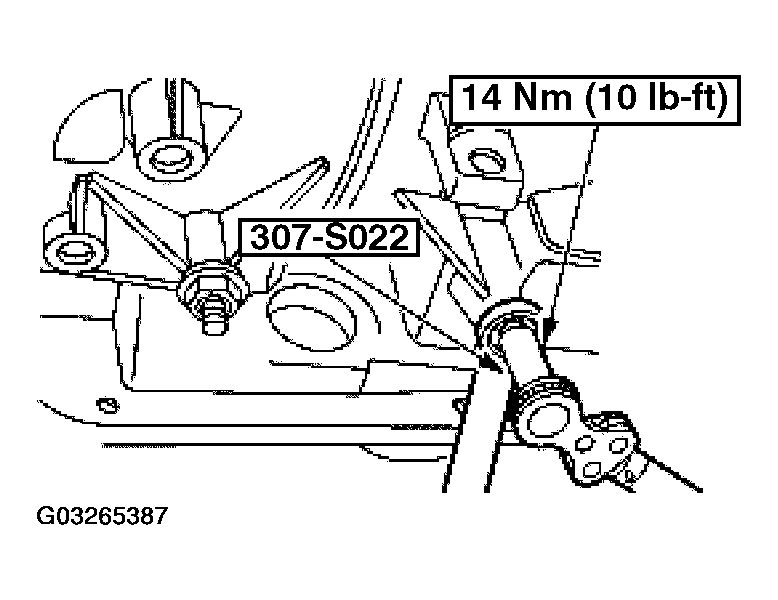

    Fig 2: Tightening Intermediate Band Adjustment Screw
    G03265387Courtesy of FORD MOTOR CO.
  2. Tighten the intermediate band adjustment screw. Then back off the screw exactly (2) turns and hold that position.
  3. Tighten the intermediate band lock nut.
    1. Hold the intermediate band adjustment screw stationary.
    2. Tighten the intermediate band lock nut.
    Fig 3: Tightening Intermediate Band Lock Nut
    G03265388Courtesy of FORD MOTOR CO.
