Stabilizer Bar And Link - Front: Notes

NOTE: Use the hex holding feature to prevent the studs from turning while removing or installing the stabilizer bar link nuts.

NOTE: Carry out this step if completely removing the stabilizer bar and link.

Remove the wheel and tire assemblies. For additional information, refer to WHEEL AND TIRE - FRONT .

Remove the parts in the order indicated in the following illustration and table. Remove the stabilizer bar or the link individually.

To remove individual parts, only carry out the listed steps:

COMPONENT REMOVAL INDEX

Part	Steps
Stabilizer bar, bushing and bracket assembly	1-5
Stabilizer bar link	1-3

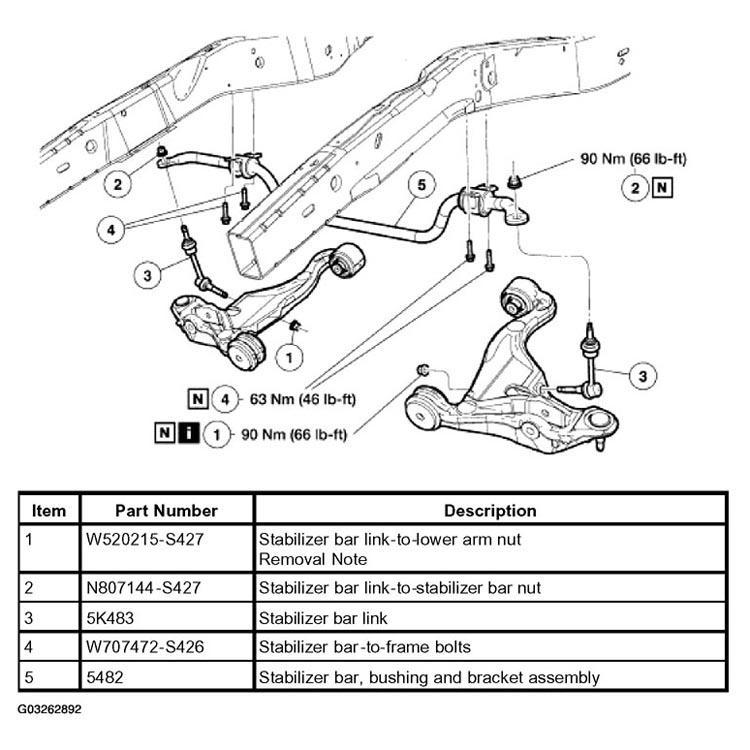

Fig 1: Identifying Stabilizer Bar And Link Components

Courtesy of FORD MOTOR CO.
