Stabilizer Bar And Link - Rear: Notes

  1. Remove the wheel and tire assemblies. For additional information, refer to WHEEL AND TIRE - REAR .
  2. Remove the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
  3. Remove the parts in the order indicated in the following illustration and table.

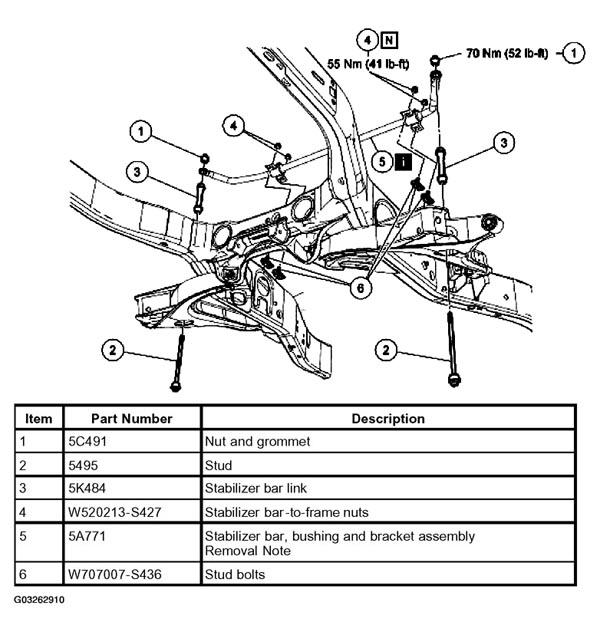

    Fig 1: Identifying Stabilizer Bar And Link Components
    G03262910Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
