Disassembly and Assembly

1. Remove the steering gear. For additional information, refer to STEERING GEAR .
2. Clean the exterior of the steering gear with solvent. Drain any excess power steering fluid.
3. Index-mark the tie-rod end, to the tie-rod end jam nut and to the spindle tie-rod.
4. Disassemble the components in the order indicated in the following illustration and table.

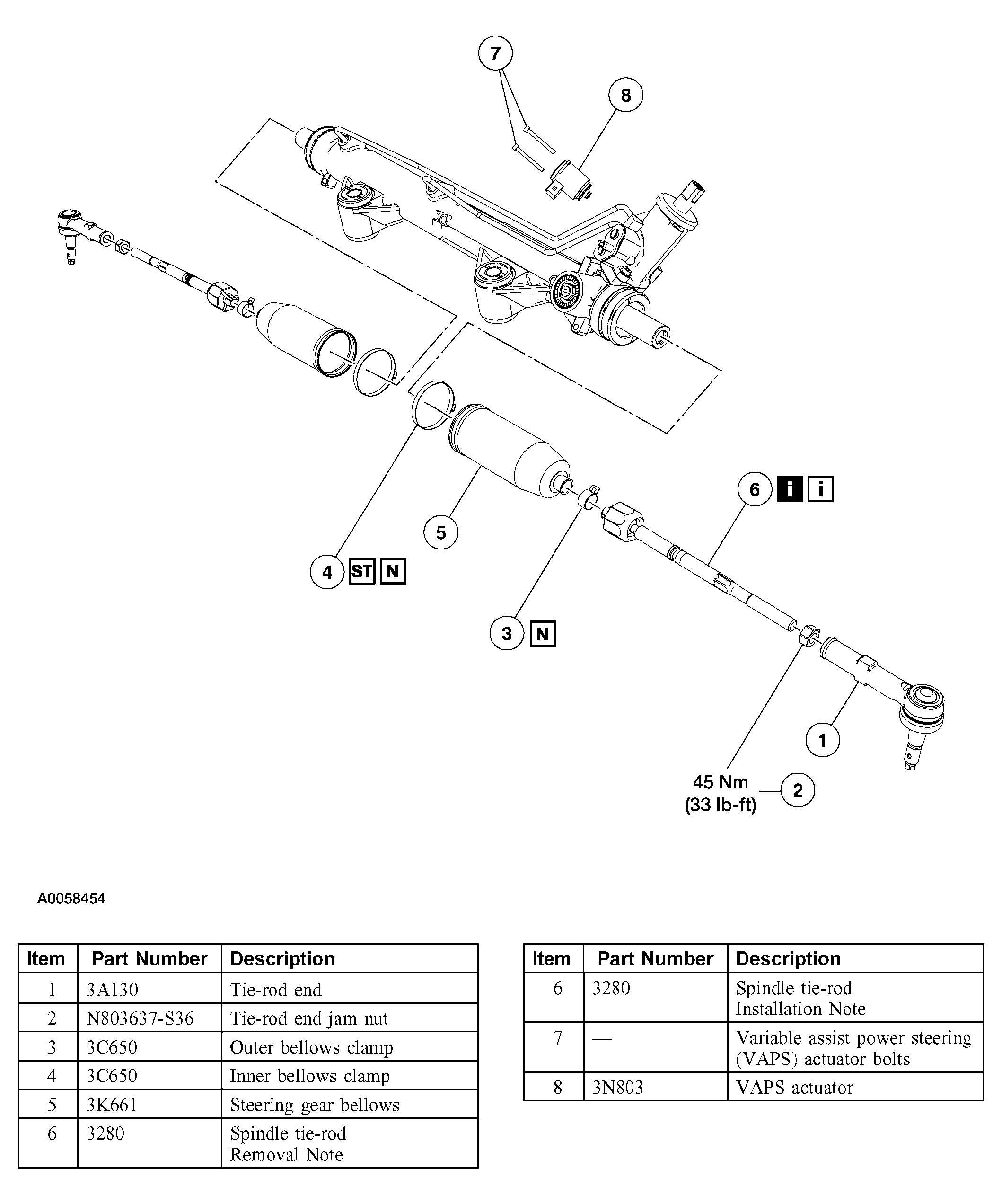

   Fig 1: Removing Steering Gear

   Courtesy of FORD MOTOR CO.
5. To assemble, reverse the disassembly procedure.
6. After installing the steering gear in the vehicle, adjust the front toe. For additional information, refer to SUSPENSION SYSTEM article .

Item 6: Spindle Tie-Rod Removal Note

CAUTION: To resist rotation and prevent damage to the steering gear during removal of the spindle tie-rods, center the steering gear and position the rack gear in a soft-jawed vice.

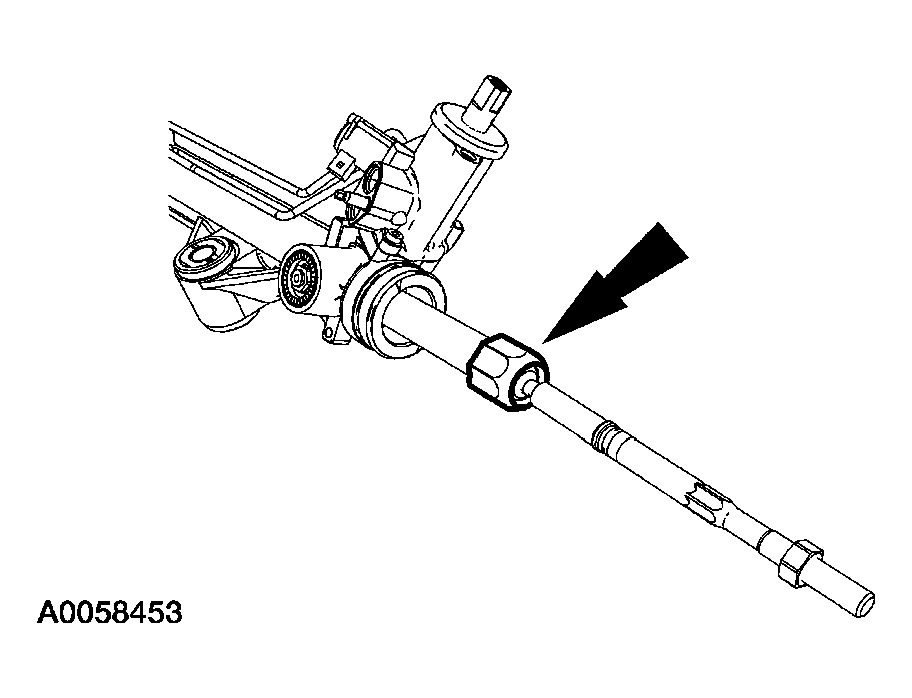

Fig 2: Removing Spindle Tie-Rod
Courtesy of FORD MOTOR CO.
1. Remove the spindle tie-rod.

Item 6: Spindle Tie-Rod Installation Note

CAUTION: To resist rotation and prevent damage to the steering gear during installation of the spindle tie-rods, center the steering gear and position the rack gear in a soft-jawed vice.

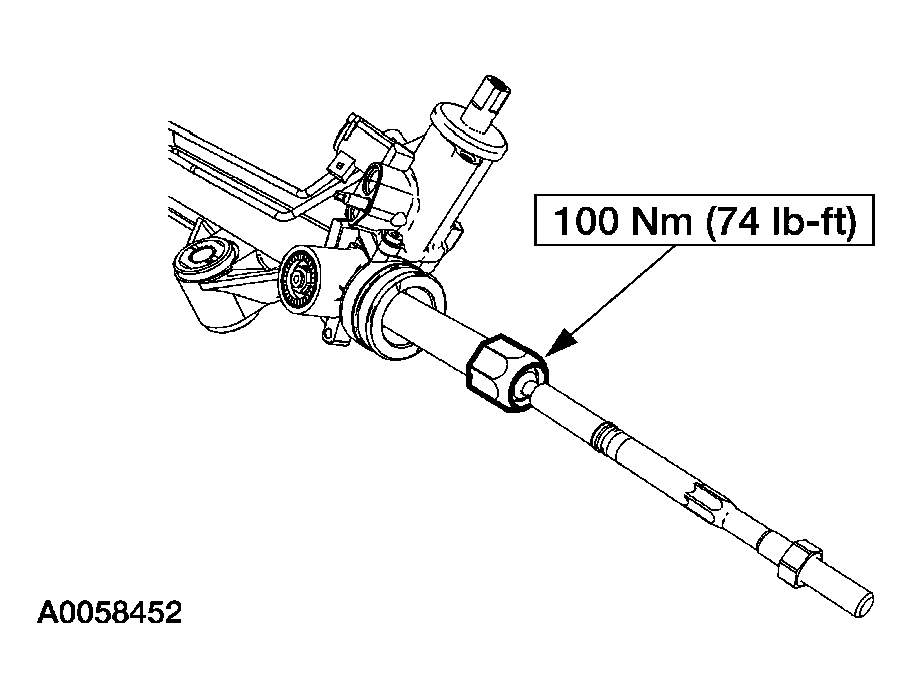

Fig 3: Installing Spindle Tie-Rod
Courtesy of FORD MOTOR CO.
1. Install the spindle tie-rod.
