Variable Assist Power Steering (VAPS) Solenoid C2231
Variable Assist Power Steering (VAPS) Solenoid C2231

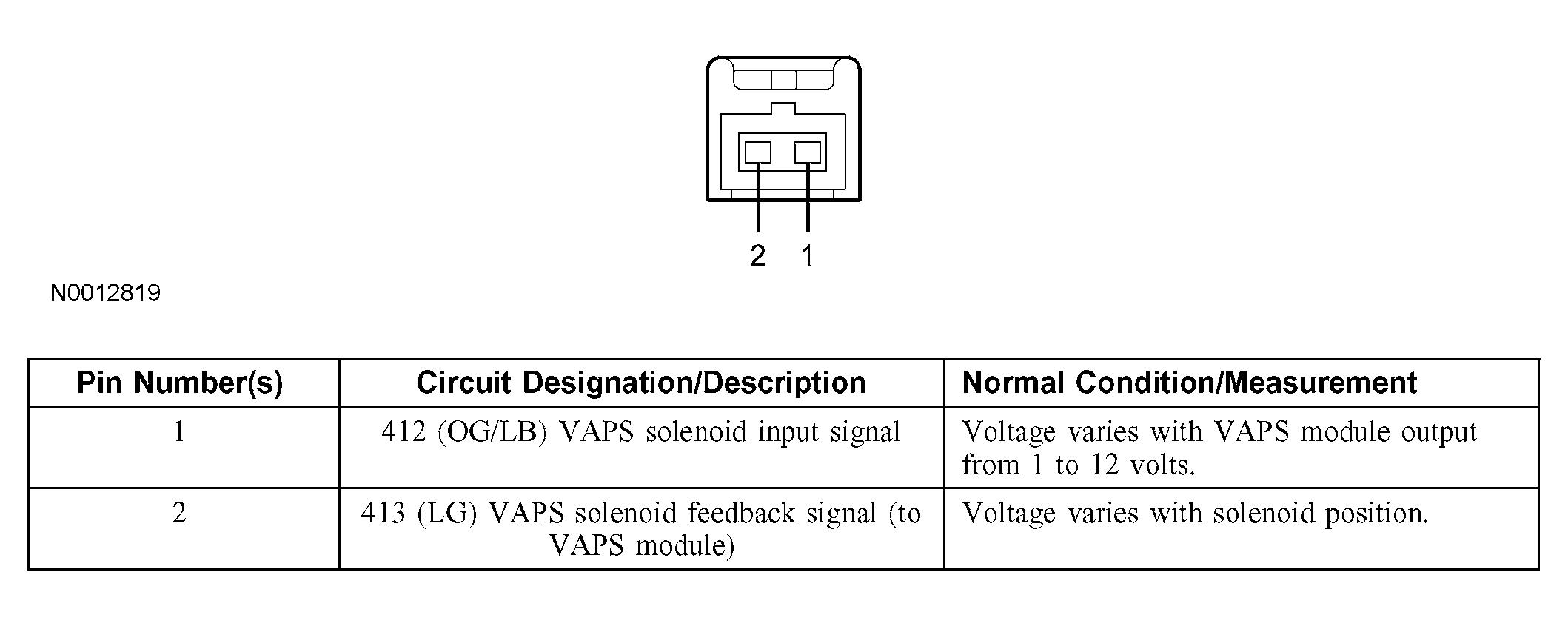

Fig 1: Identifying Variable Assist Power Steering Solenoid C2231 Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
