Piston - Pin Diameter

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
    • If out of specification, install new components as necessary.

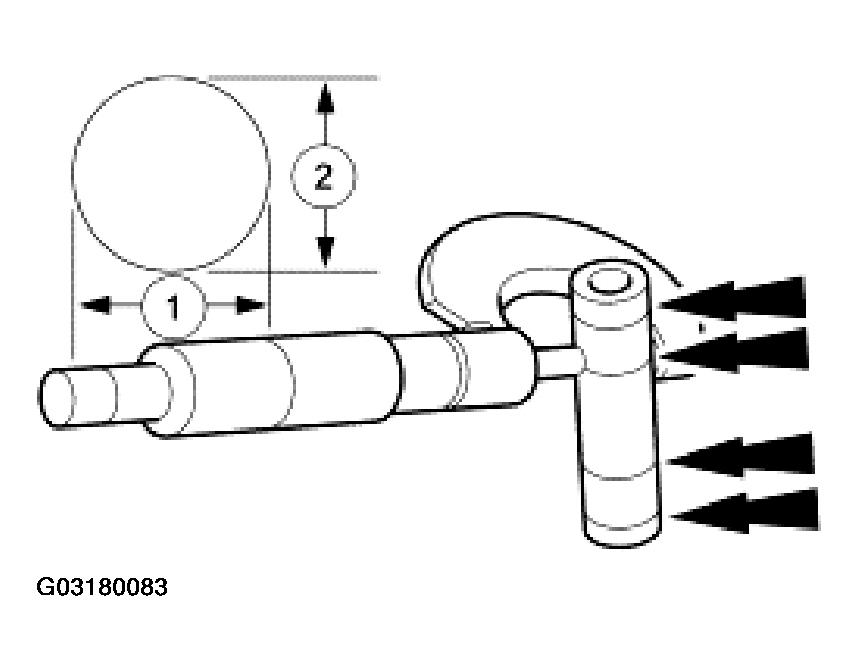

    Fig 1: Measuring Piston Pin Diameter
    G03180083Courtesy of FORD MOTOR CO.
