Section 437 (Power Steering System)
>>
Description & Operation
>>
Power Steering
>>
Notes
Power Steering: Notes
WARNING:
This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

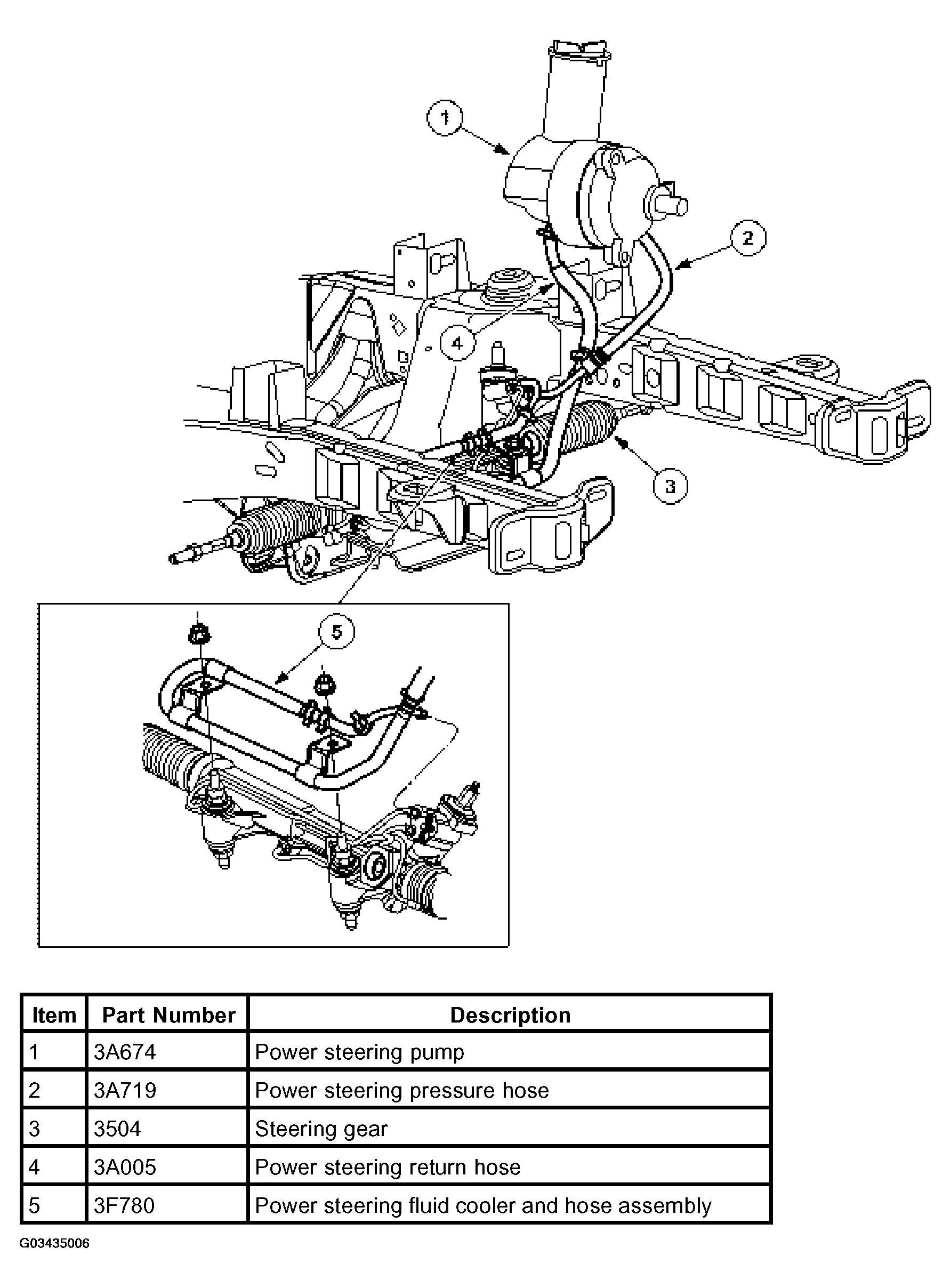

Fig 1: Identifying Power Steering System View - Typical
Courtesy of FORD MOTOR CO.

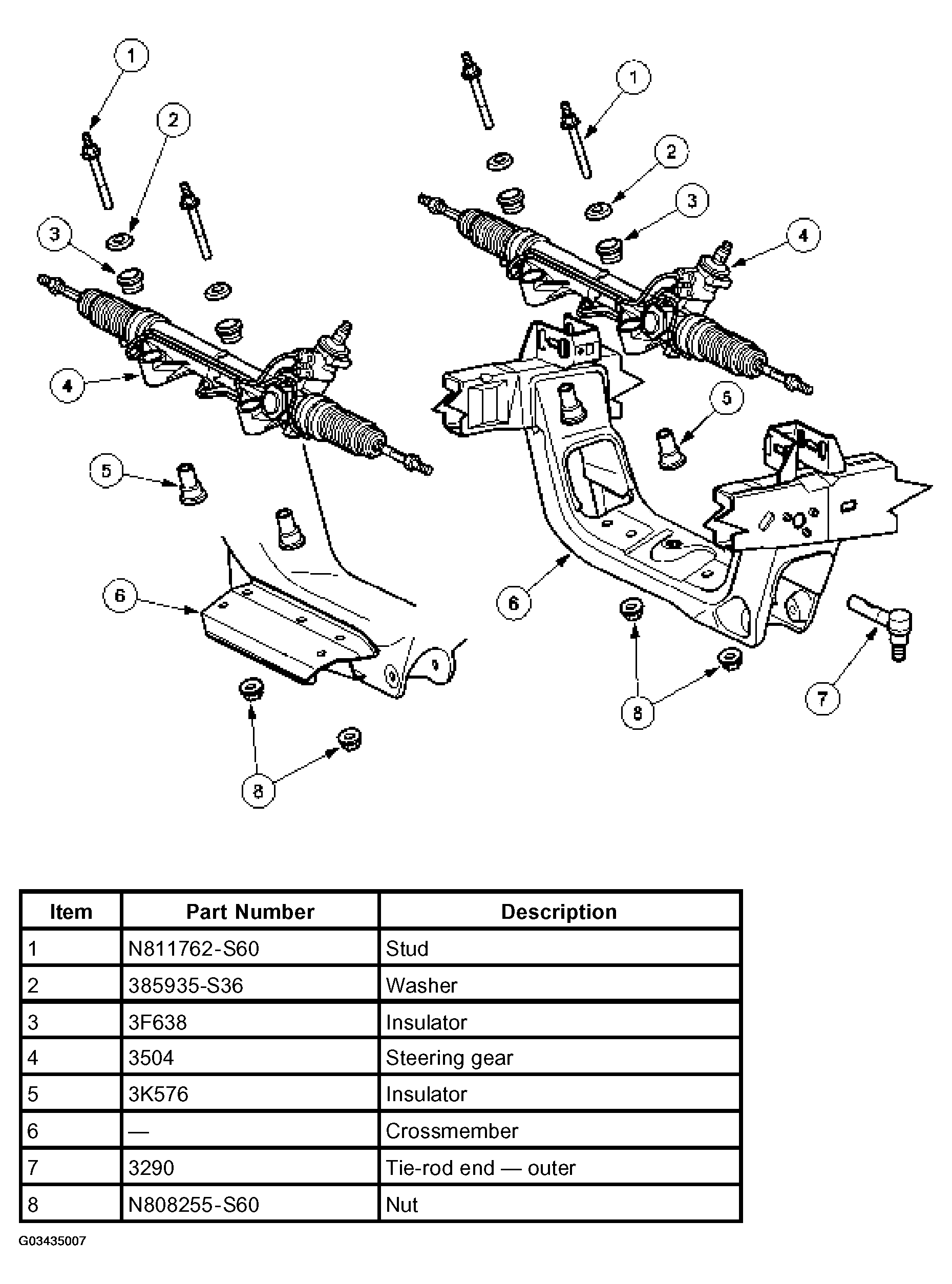

Fig 2: Identifying Steering Gear Mounting - 4x2/4x4
Courtesy of FORD MOTOR CO.

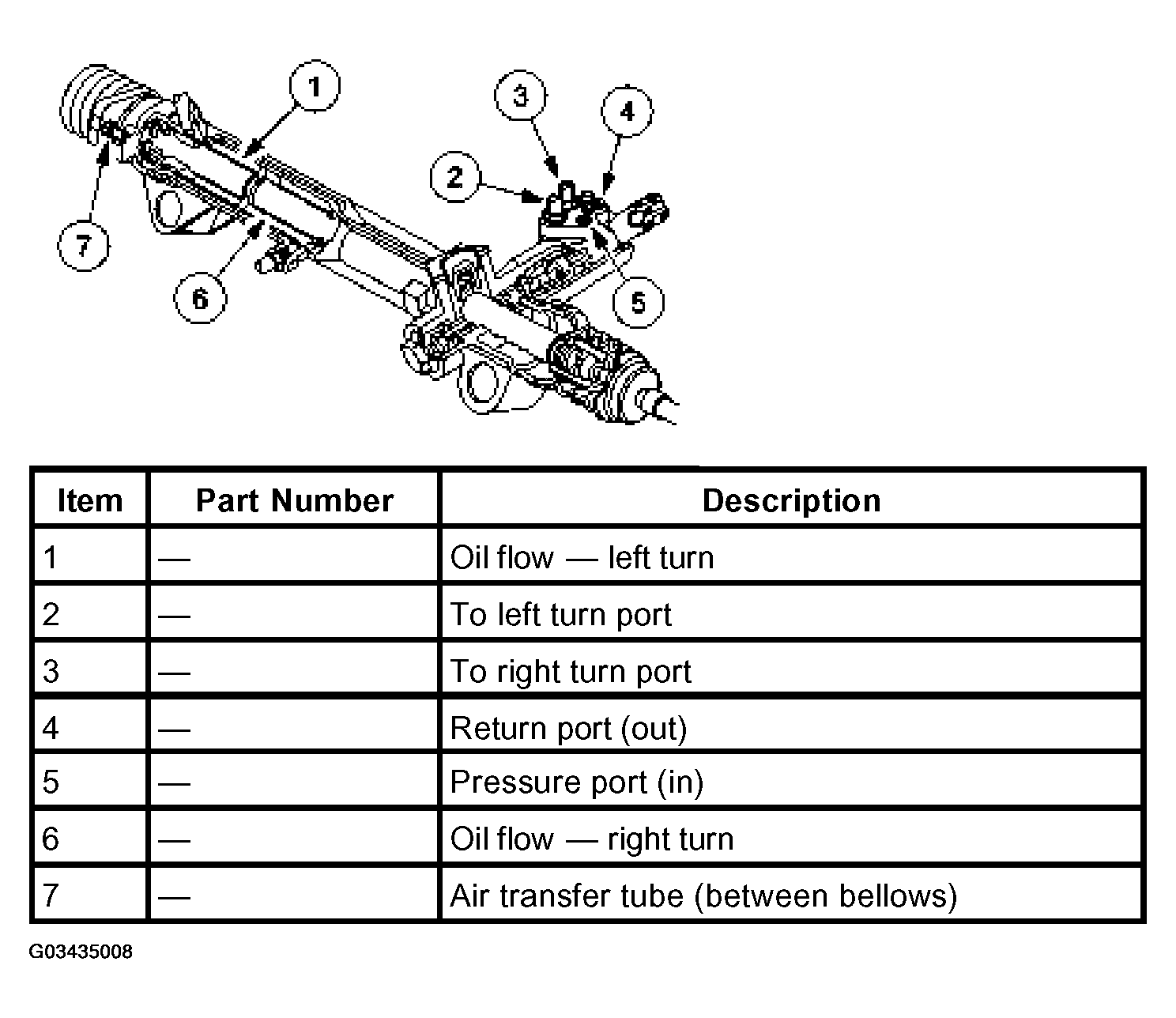

Fig 3: Identifying Steering Gear
Courtesy of FORD MOTOR CO.
