WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

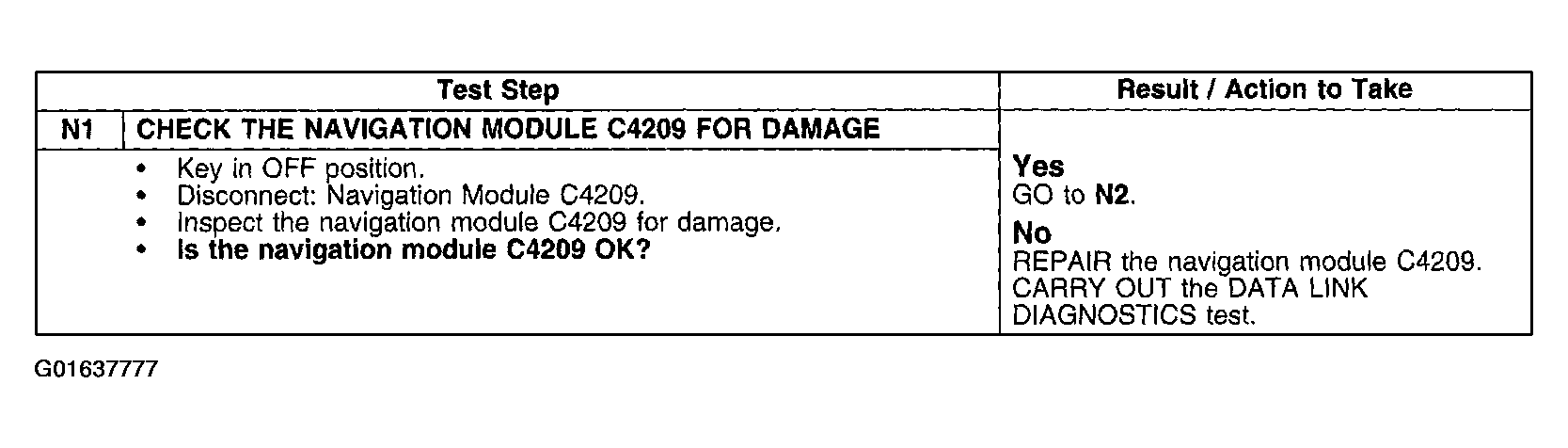

Fig 1: Pinpoint Test N: The Navigation Module Cluster Does Not Respond To The Diagnostic Tool (Step N1)
Courtesy of FORD MOTOR CO.

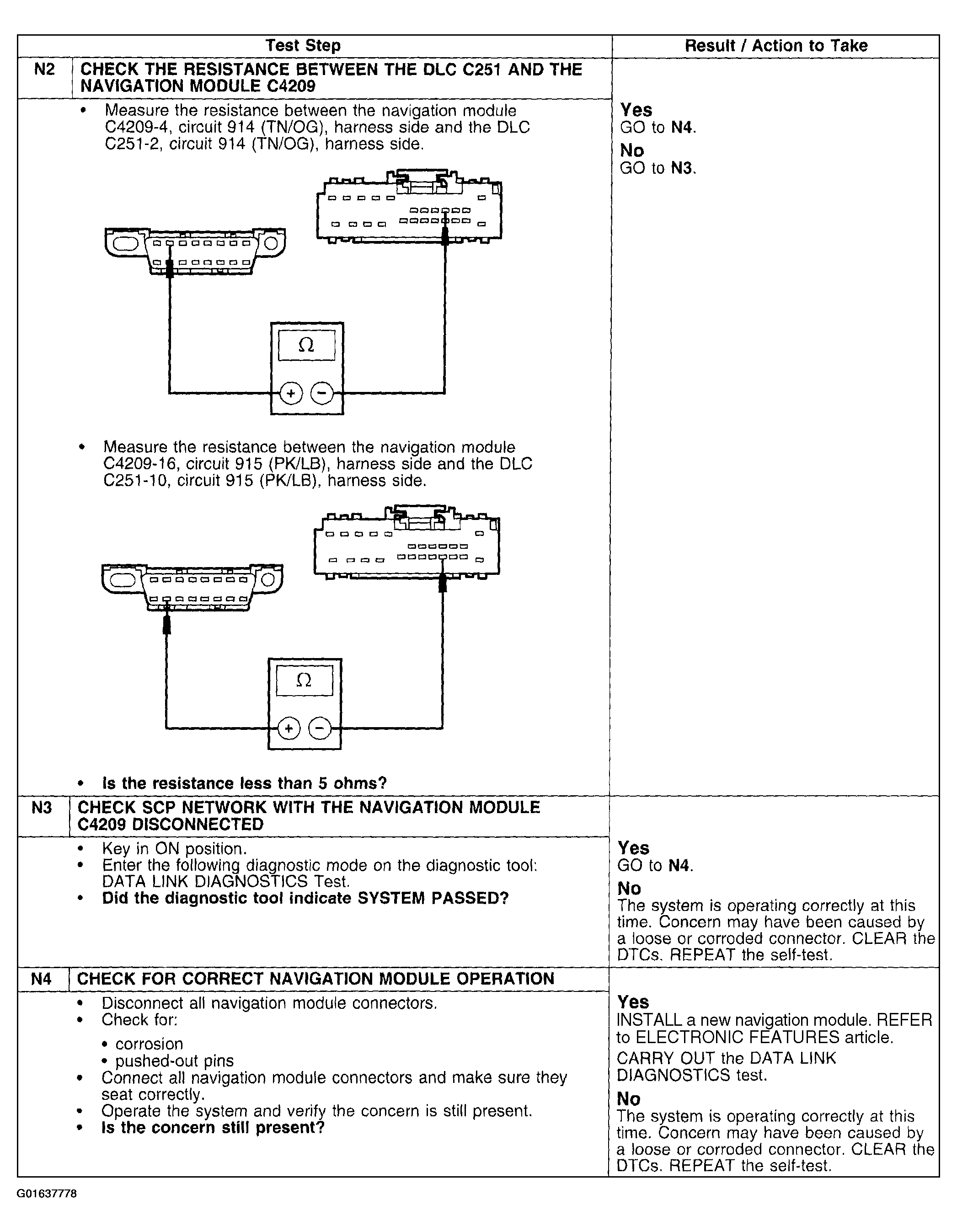

Fig 2: Pinpoint Test N: The Navigation Module Cluster Does Not Respond To The Diagnostic Tool (Steps N2-N4)
