Test Procedure

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

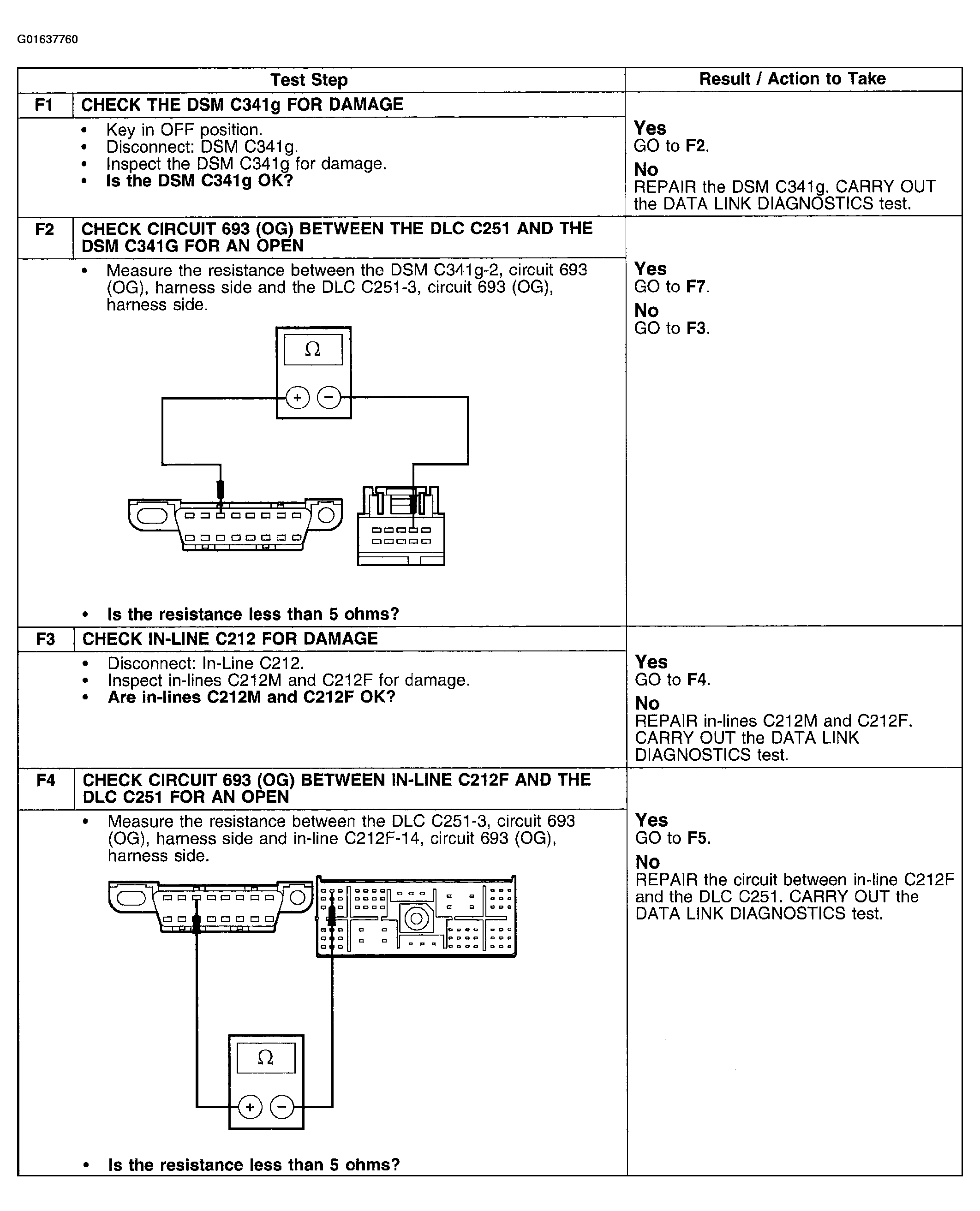

Fig 1: Pinpoint Test F: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps F1-F4)
G01637760Courtesy of FORD MOTOR CO.

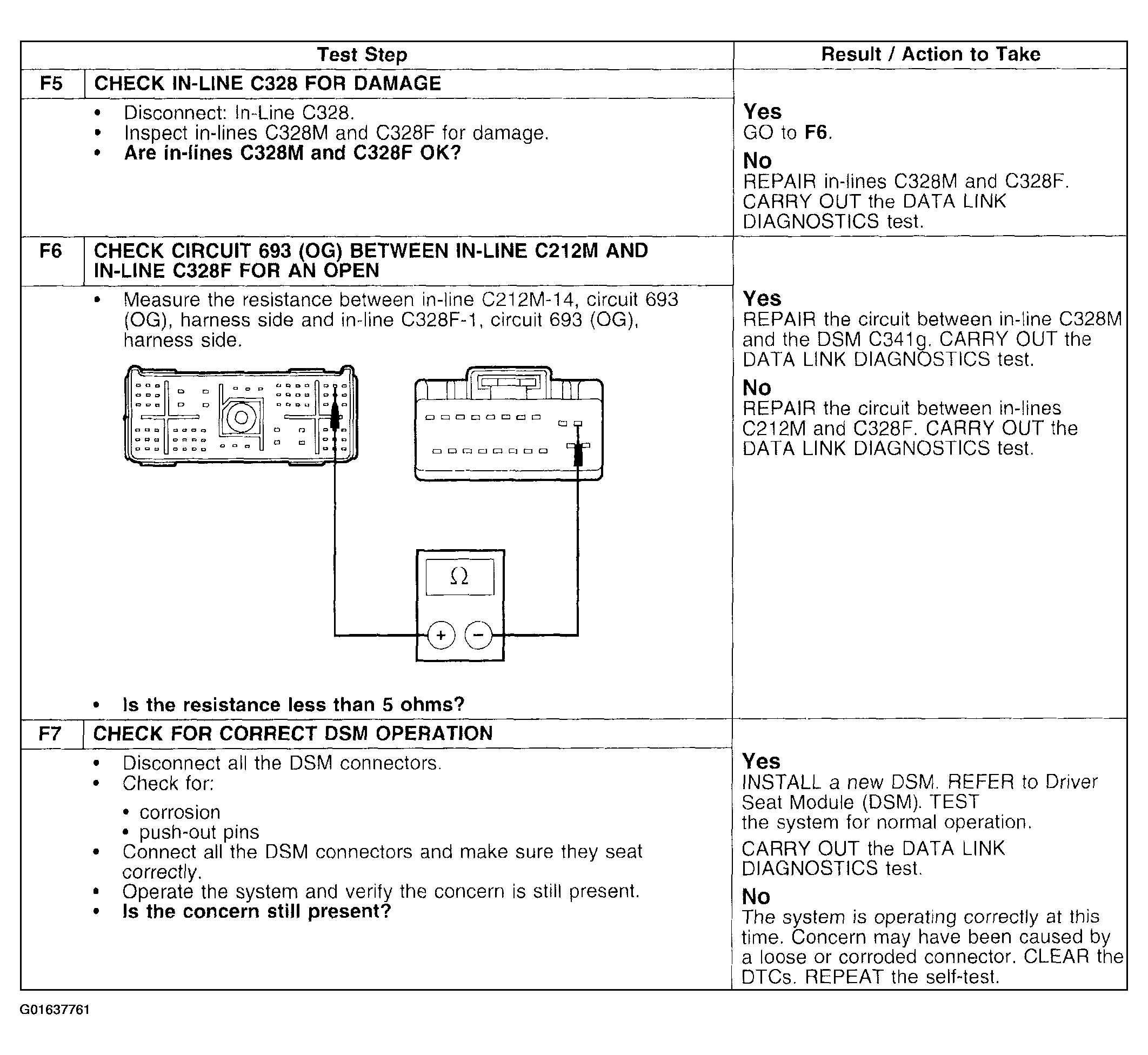

Fig 2: Pinpoint Test F: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps F5-F7)
G01637761Courtesy of FORD MOTOR CO.
