Test Procedure

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

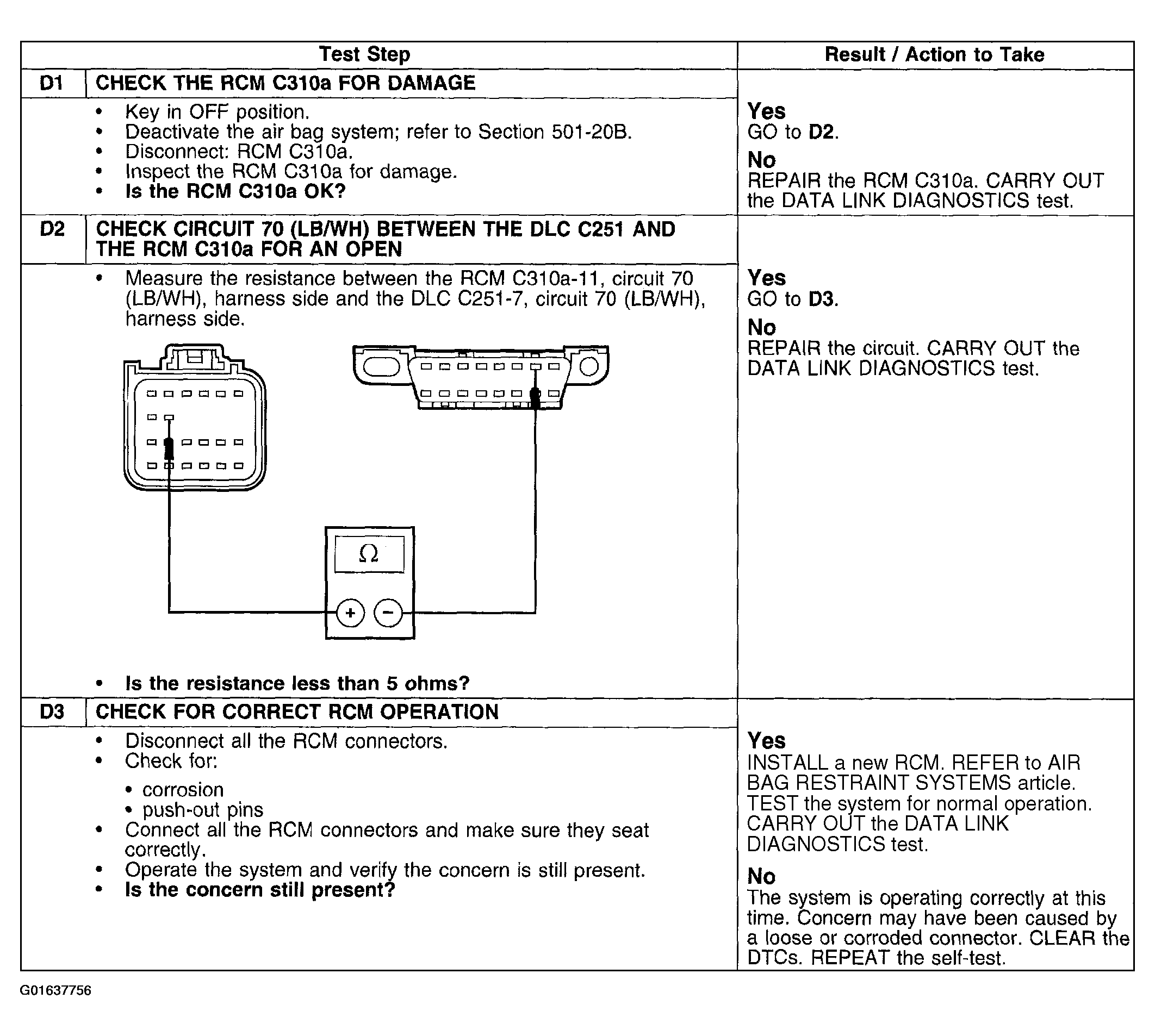

Fig 1: Pinpoint Test D: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool
G01637756Courtesy of FORD MOTOR CO.
