Digital Versatile Disc (DVD) Player

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Removal the components in the order indicated in the following illustration.

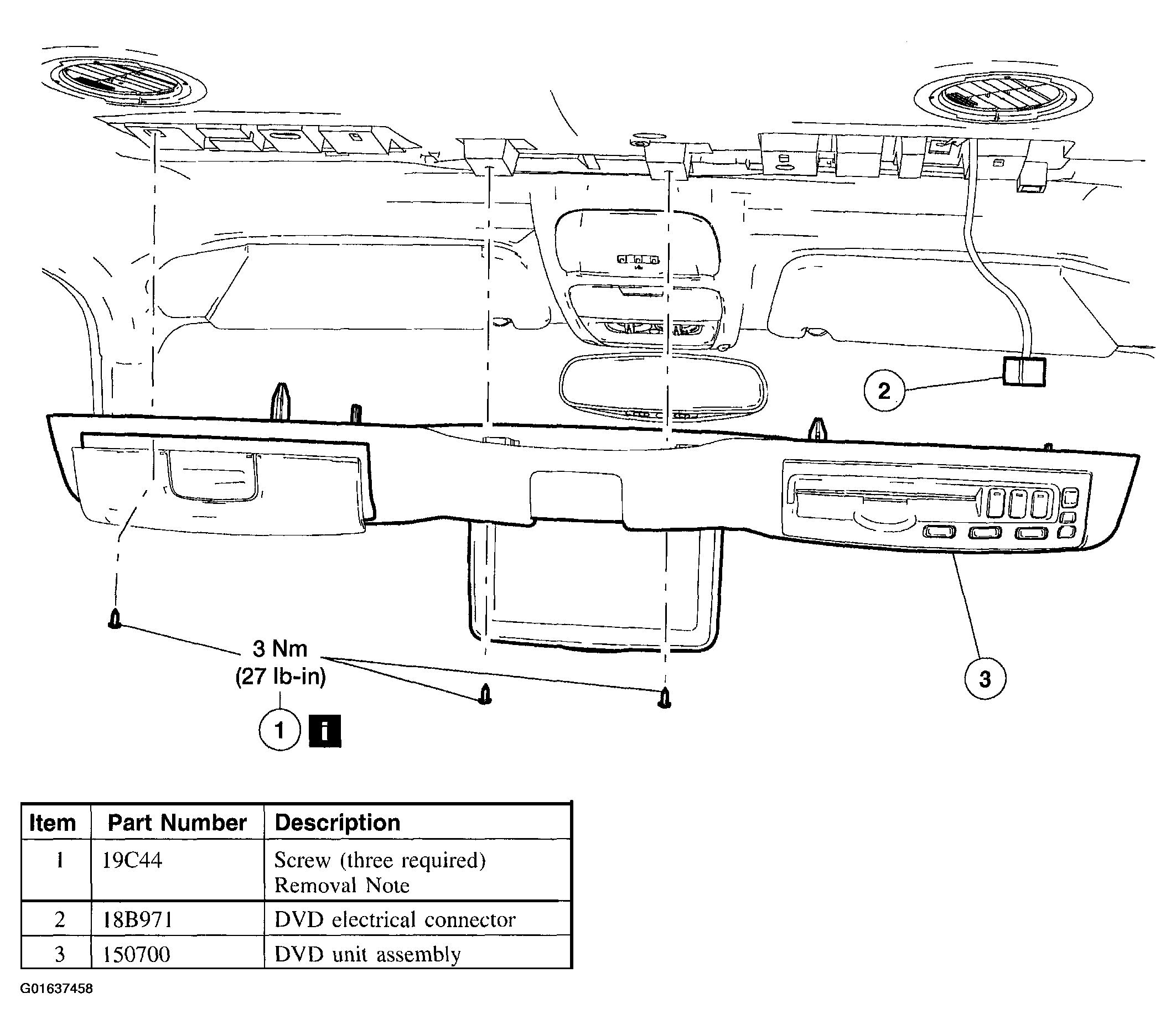

    Fig 1: Digital Versatile Disc (DVD) Player Removal Procedure
    G01637458Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

Item 1 Digital Versatile Disc (DVD) Player Removal Note

  1. Open the DVD display and the storage compartment door.
