WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

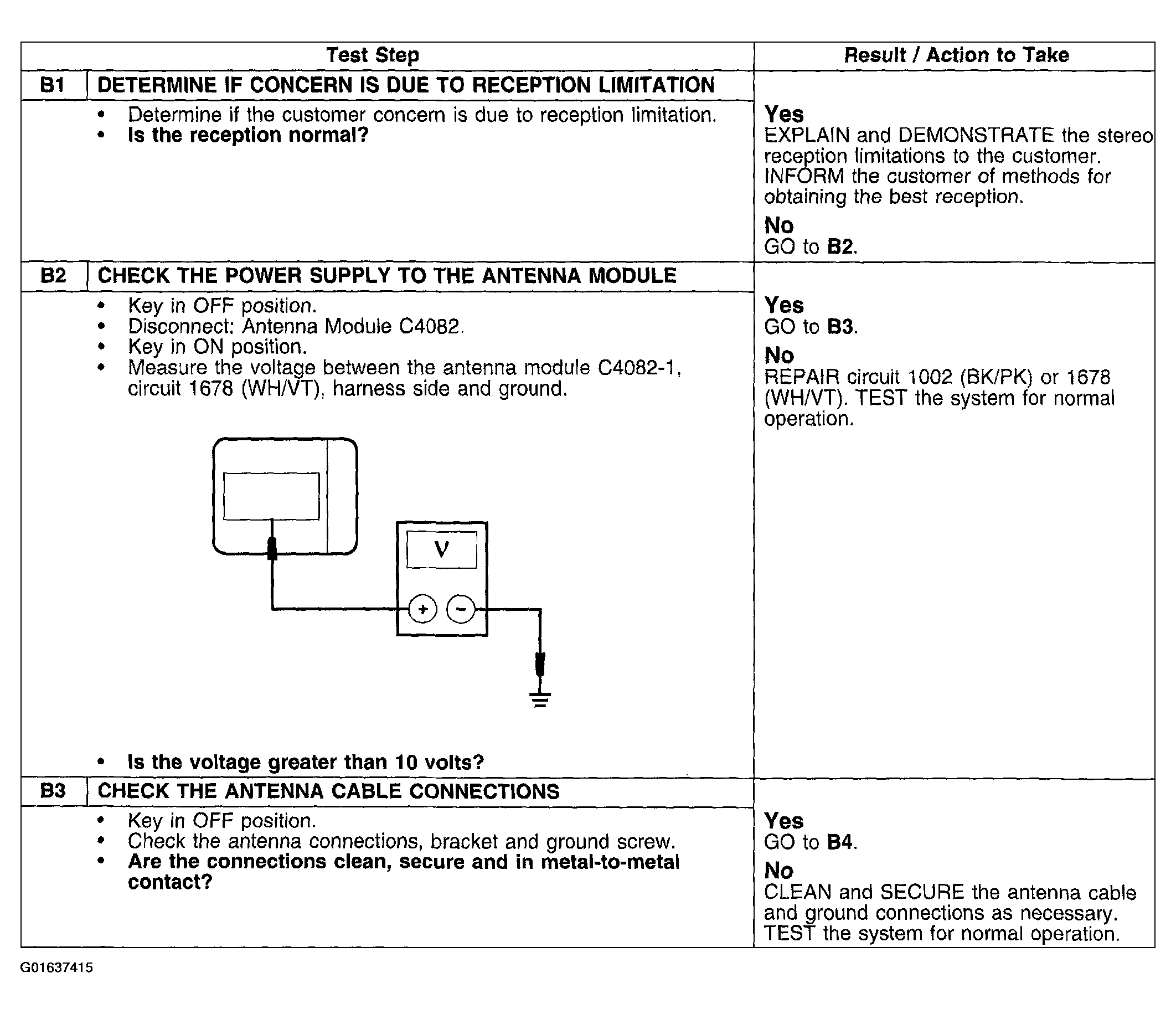

Fig 1: Pinpoint Test B: Poor Reception (Steps B1-B3)
Courtesy of FORD MOTOR CO.

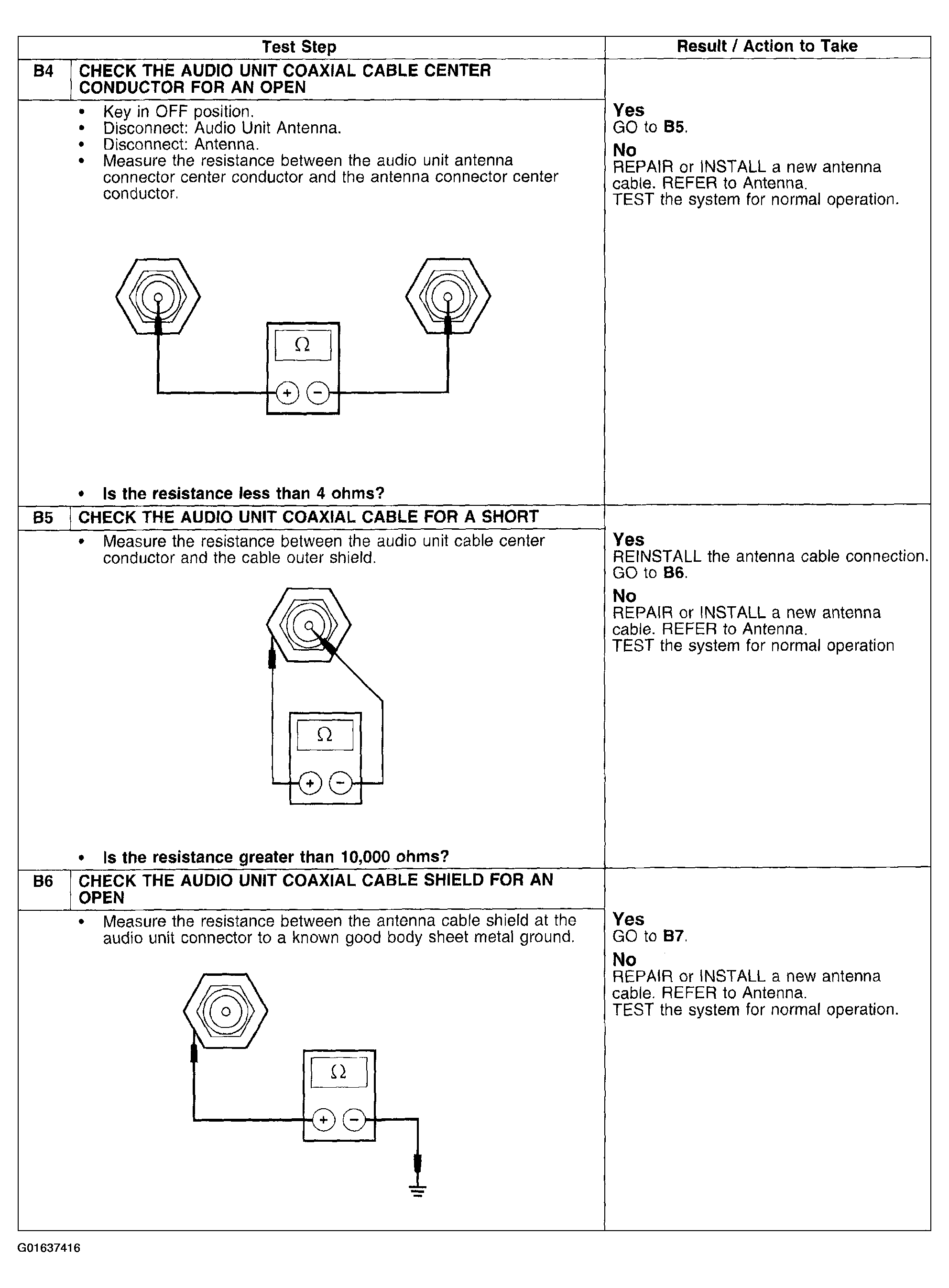

Fig 2: Pinpoint Test B: Poor Reception (Steps B4-B6)
Courtesy of FORD MOTOR CO.

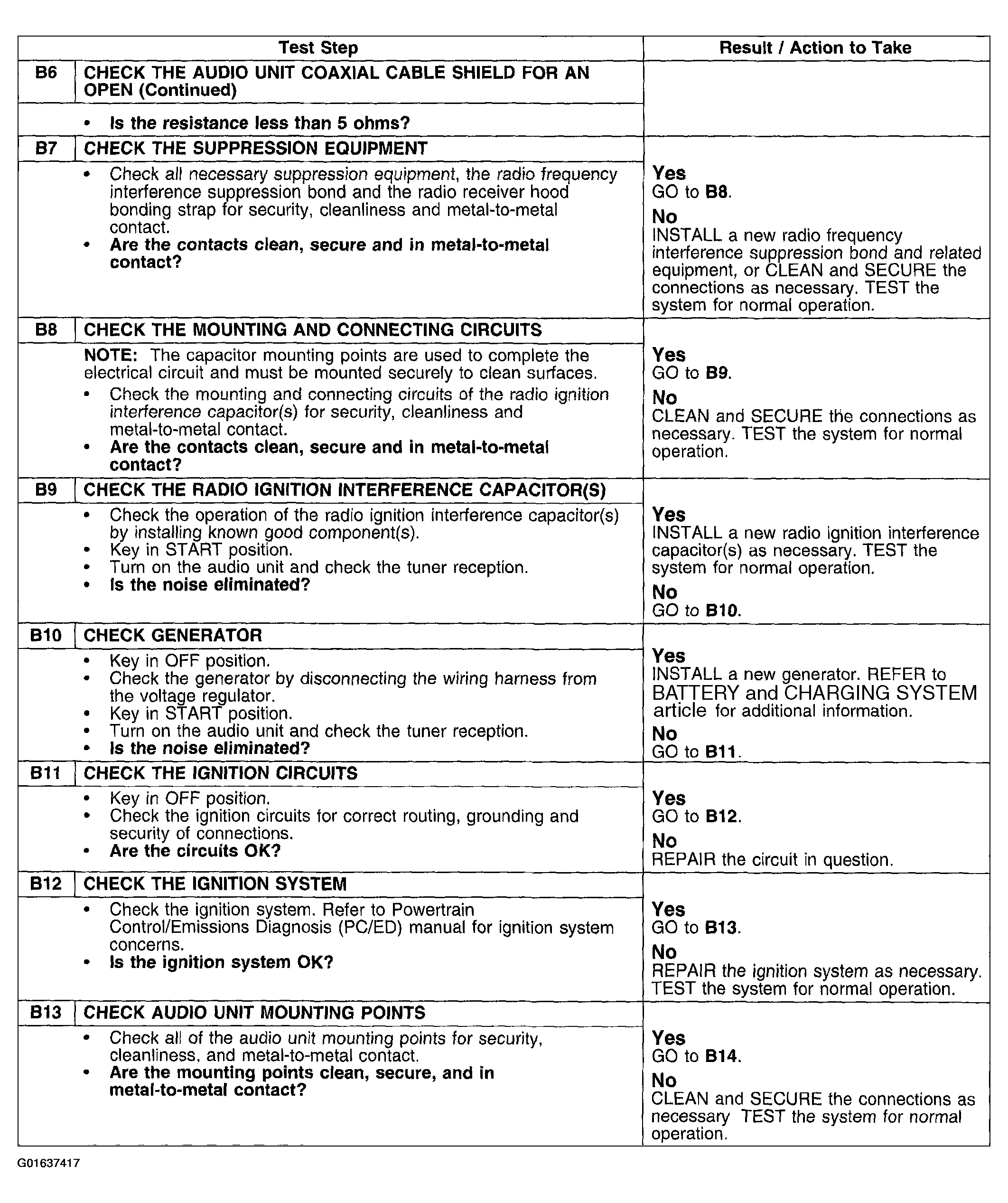

Fig 3: Pinpoint Test B: Poor Reception (Steps B6-B13)
Courtesy of FORD MOTOR CO.

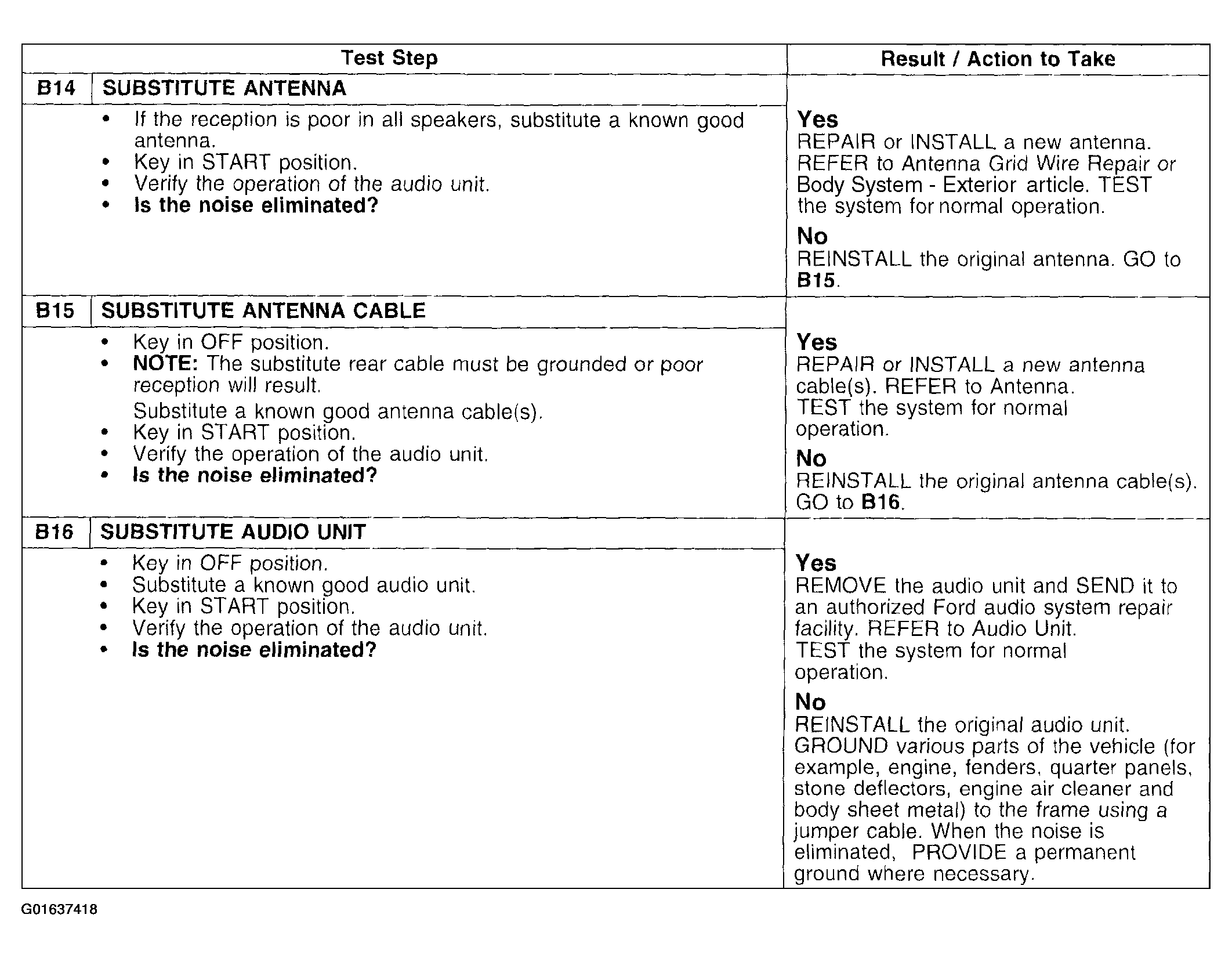

Fig 4: Pinpoint Test B: Poor Reception (Steps B14-B16)
