Oil Pressure Switch

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist.
  2. Remove the components in the order indicated in the following illustration.
  3. To install, reverse the removal procedure.

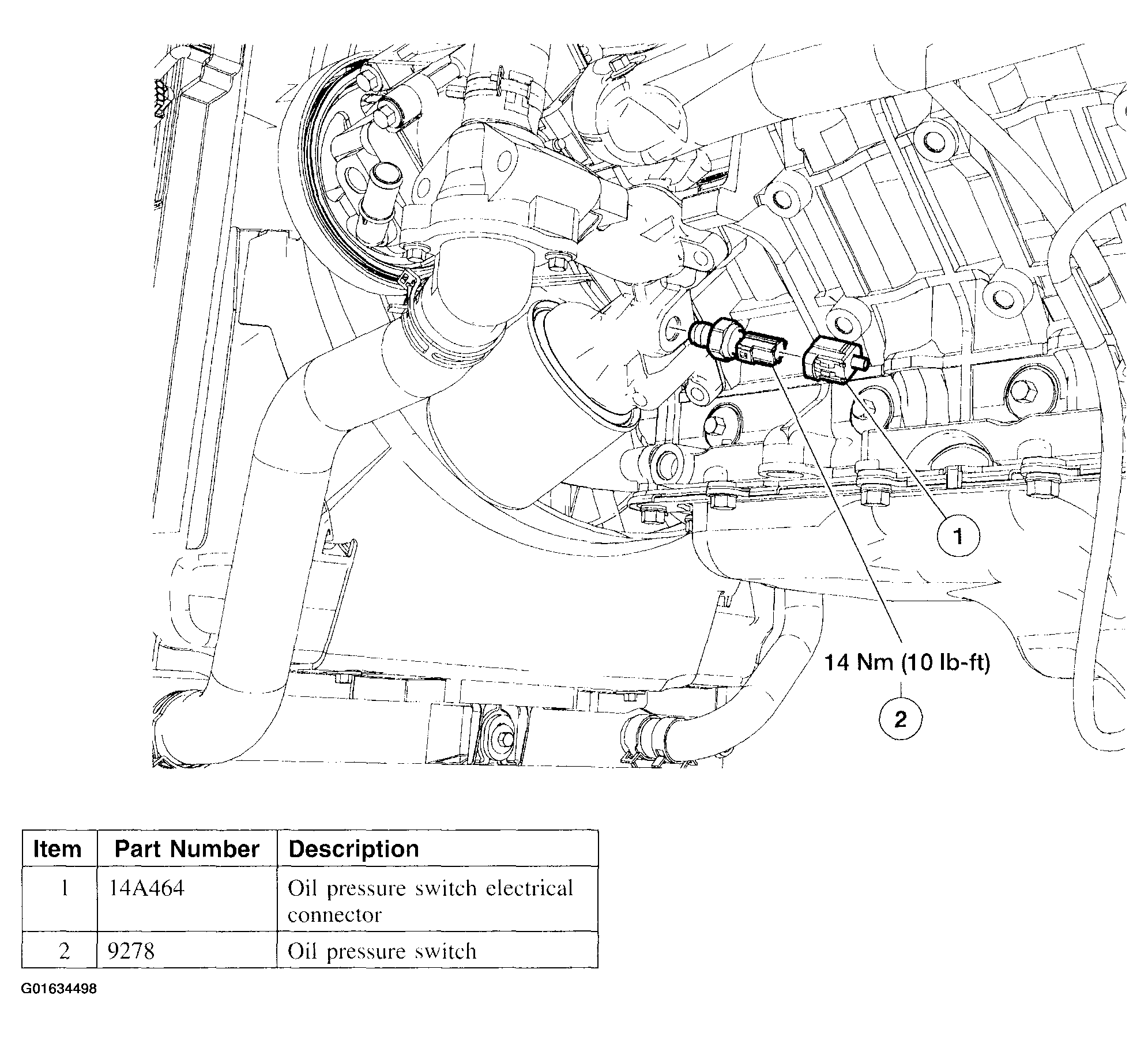

    Fig 1: Removal Sequence Of Oil Pressure Switch
    G01634498Courtesy of FORD MOTOR CO.
