Rear Disc Brake: Material

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

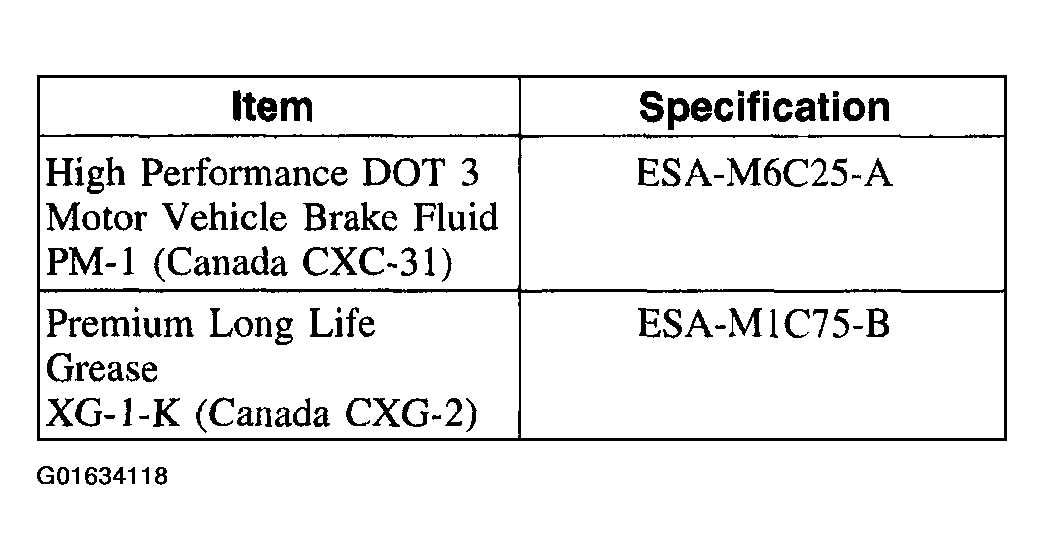

Fig 1: Material Specifications

Courtesy of FORD MOTOR CO.

Remove the wheel and tire assembly. For additional information, refer to SUSPENSION SYSTEM .
Remove the components in the order indicated in the following illustration.

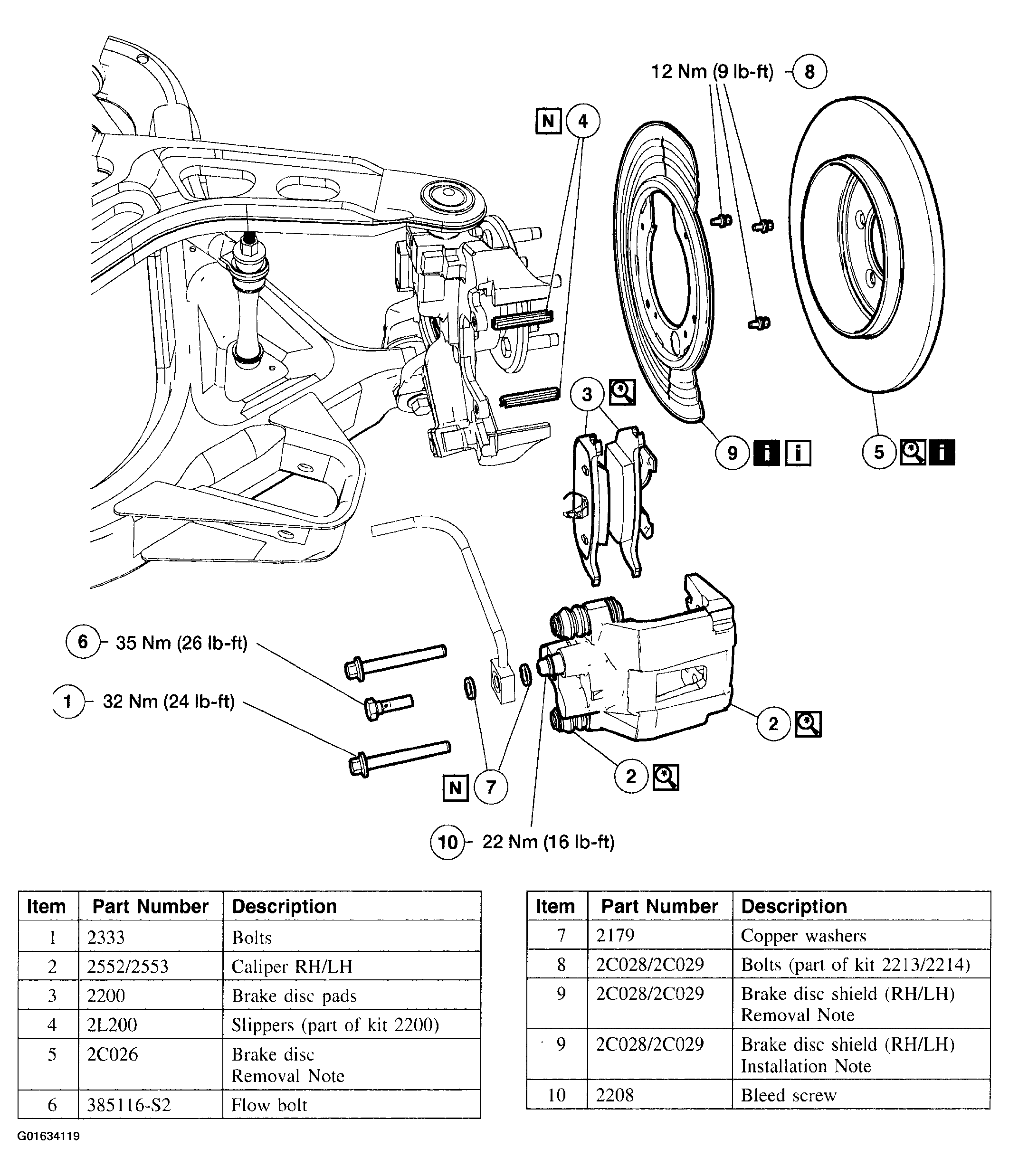

Fig 2: Removal Sequence Of Rear Disc Brake
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Bleed the brake system. For additional information, refer to BRAKE SYSTEM BLEEDING .

Item 5: Brake Disc Removal Note

If the brake disc binds on the parking brake shoe and lining, remove the adjustment hole access plug and contract the parking brake shoe and lining.

Item 9: Brake Disc Shield Removal Note

Cut the brake disc shield at the perforations.

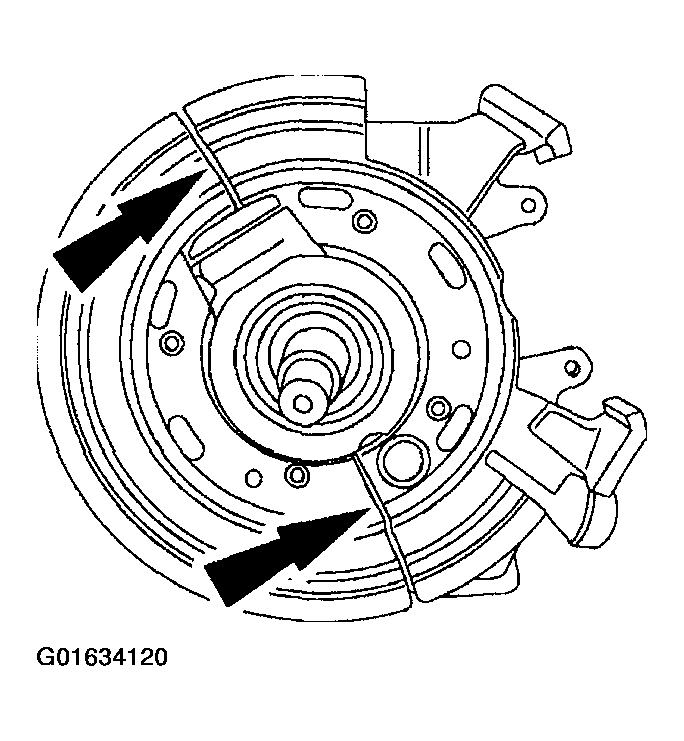

Fig 3: Locating Brake Disc Shield
Courtesy of FORD MOTOR CO.

Item 9: Brake Disc Shield Installation Note

Cut the brake disc shield at the perforations.

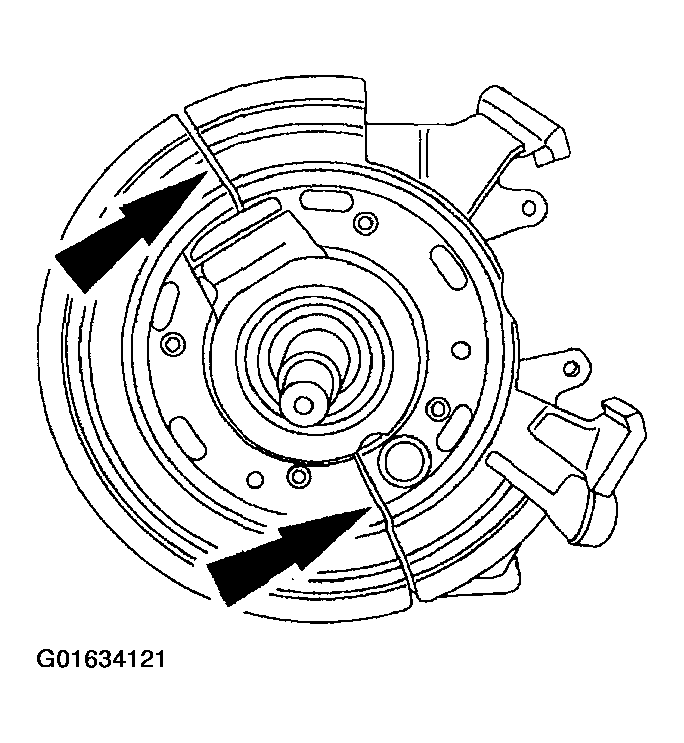

Fig 4: Locating Brake Disc Shield
Courtesy of FORD MOTOR CO.
