Brake Master Cylinder: Material

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

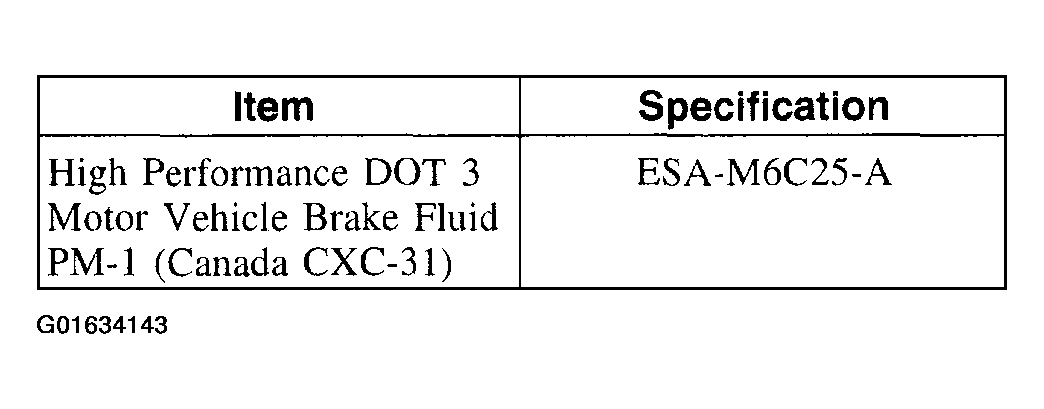

Fig 1: Material Specifications

Courtesy of FORD MOTOR CO.

CAUTION: If the master cylinder body is damaged, install a new unit as an assembly.

CAUTION: Clamp on the master cylinder flange only when securing the master cylinder in a vise.

Remove the brake master cylinder. For additional information, refer to BRAKE MASTER CYLINDER AND BRAKE BOOSTER .
Secure the brake master cylinder in a vise.
Disassemble the IVD master cylinder assembly in the order indicated in the following illustration.

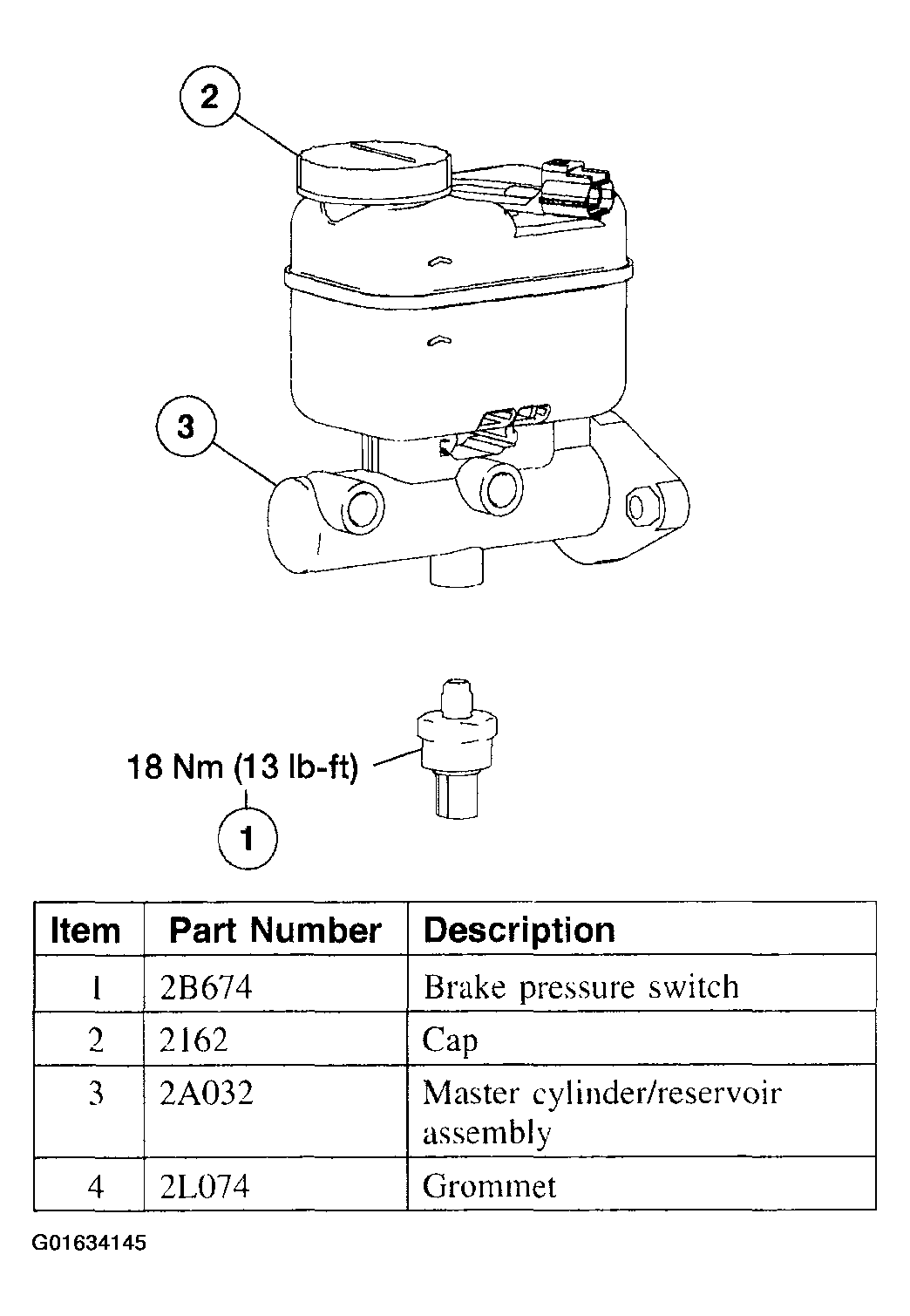

Fig 2: Disassembling Sequence Of IVD Master Cylinder Assembly
Courtesy of FORD MOTOR CO.
Disassemble the ABS master cylinder assembly in the order indicated in the following illustration.

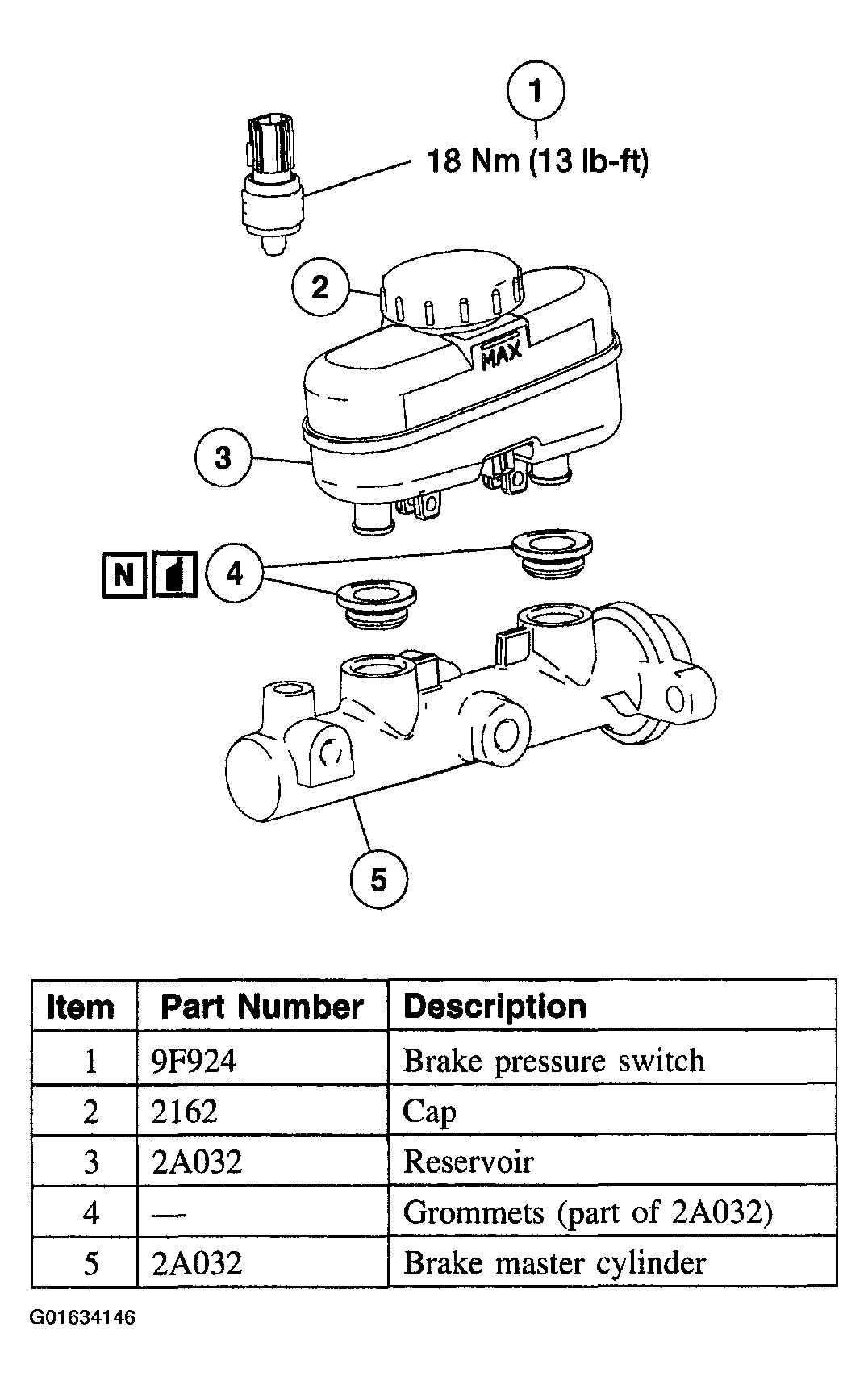

Fig 3: Disassembling Sequence Of ABS Master Cylinder Assembly
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
