Brake Fluid Level Indicator Switch-C124

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

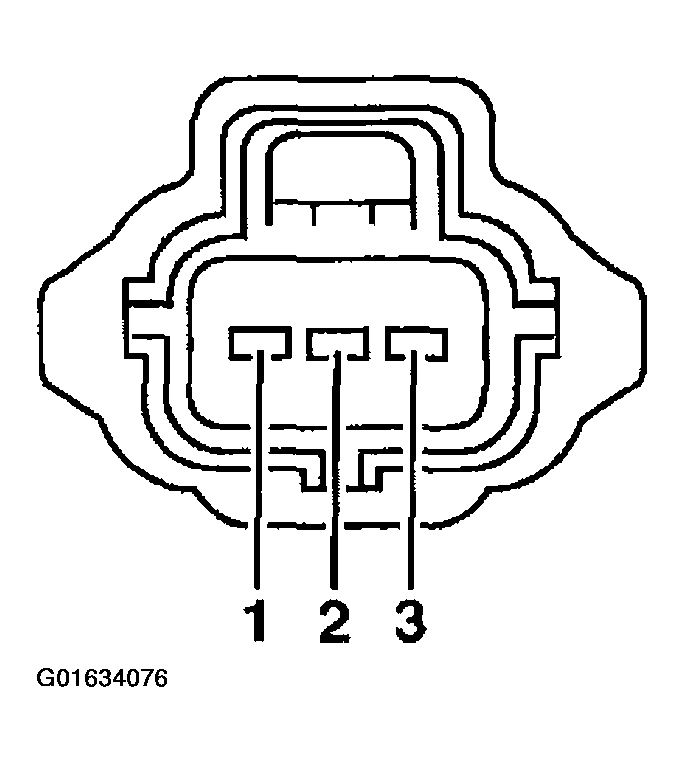

Fig 1: Brake Fluid Level Indicator Switch-C124 Connector Terminal
G01634076Courtesy of FORD MOTOR CO.

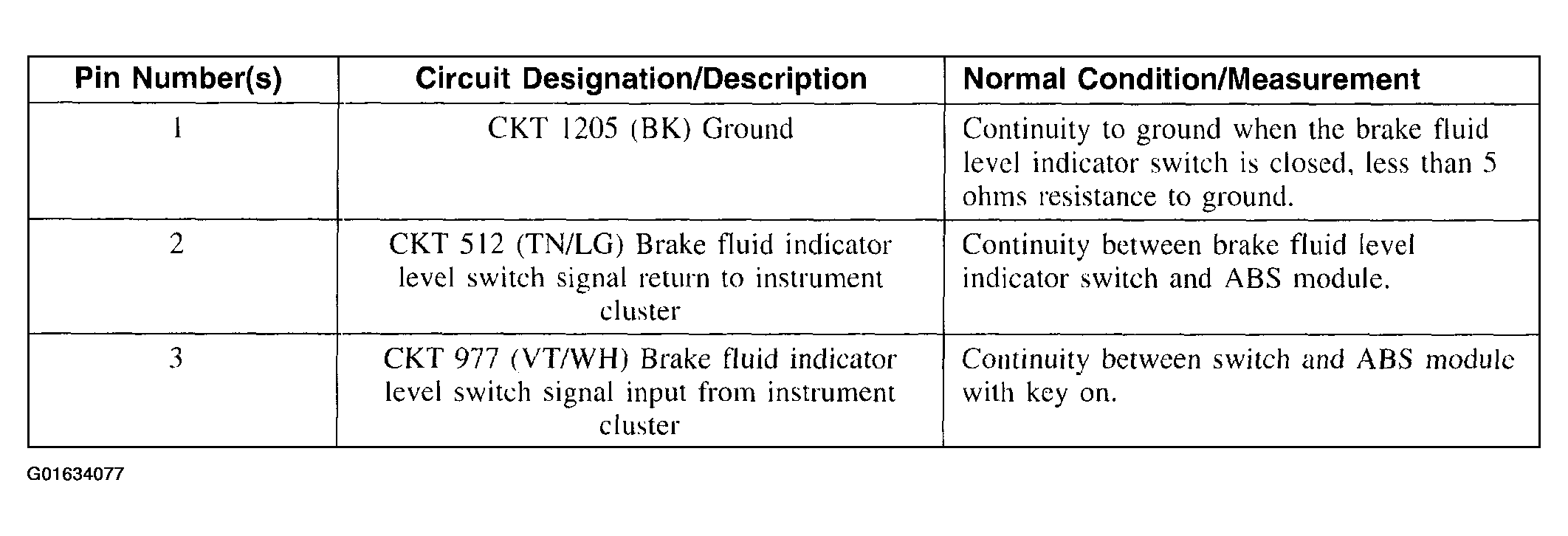

Fig 2: Brake Fluid Level Indicator Switch-C124 Reference And Terminal Readings
G01634077Courtesy of FORD MOTOR CO.
