Luggage Compartment Lid Alignment

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

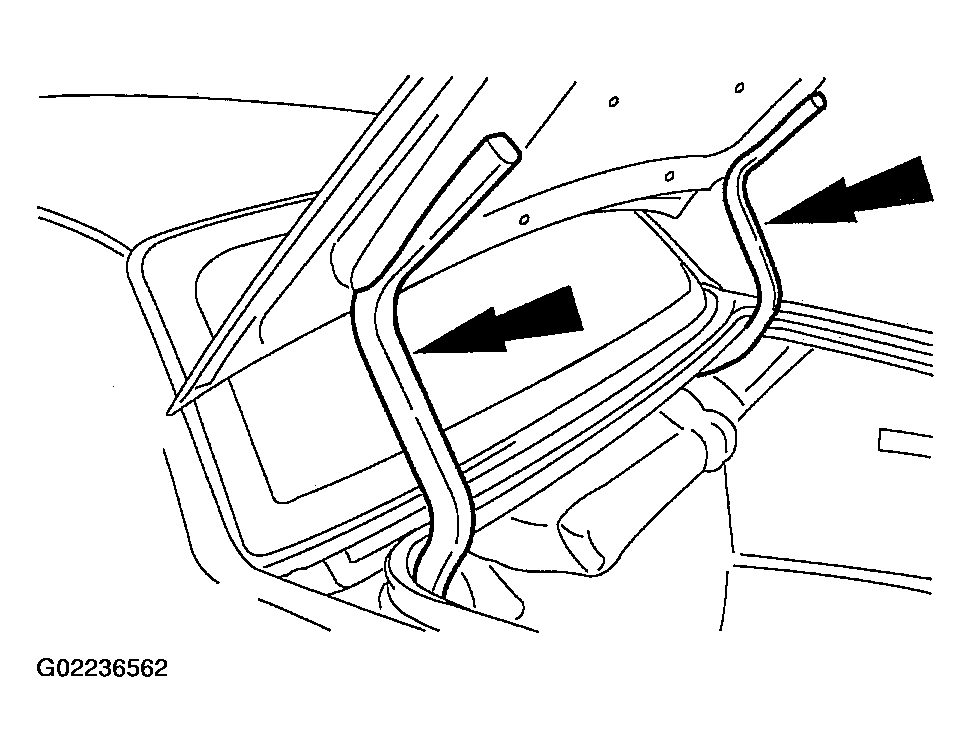

Remove the luggage compartment lid hinge covers.

Fig 1: Removing Hinge Covers
Courtesy of FORD MOTOR CO.

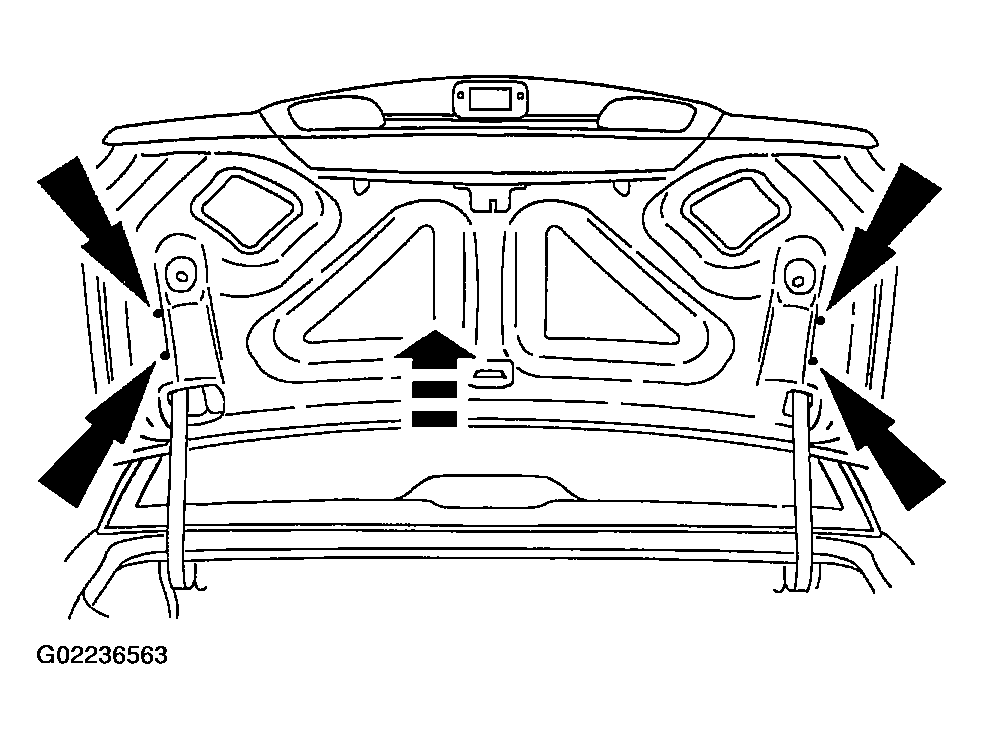

Loosen the luggage compartment lid bolts.

Fig 2: Loosening Luggage Compartment Lid Bolts
Courtesy of FORD MOTOR CO.
Adjust the luggage compartment lid as necessary.

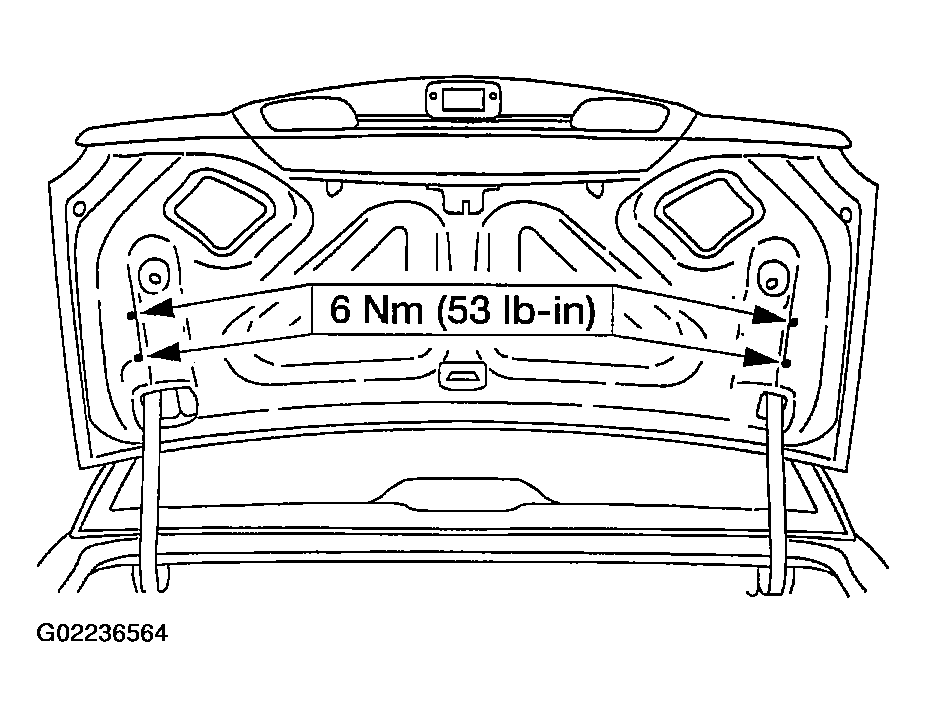

Tighten the luggage compartment hinge bolts.

Fig 3: Tightening Luggage Compartment Hinge Bolts
Courtesy of FORD MOTOR CO.

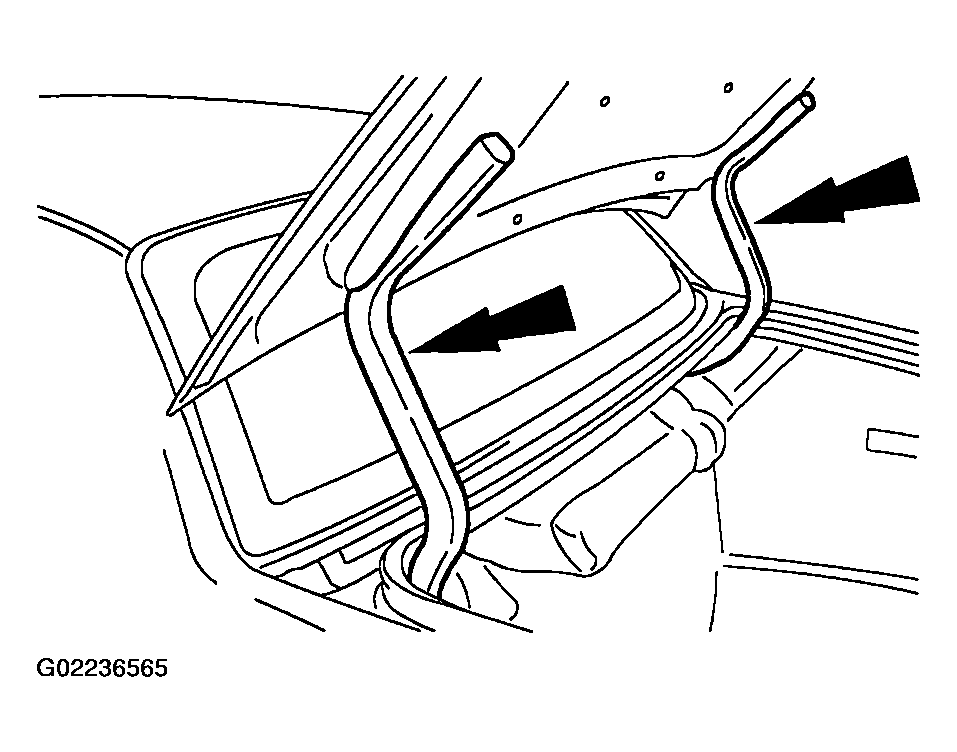

Install the luggage compartment lid hinge covers.

Fig 4: Installing Hinge Covers
Courtesy of FORD MOTOR CO.
