Component Locations
WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

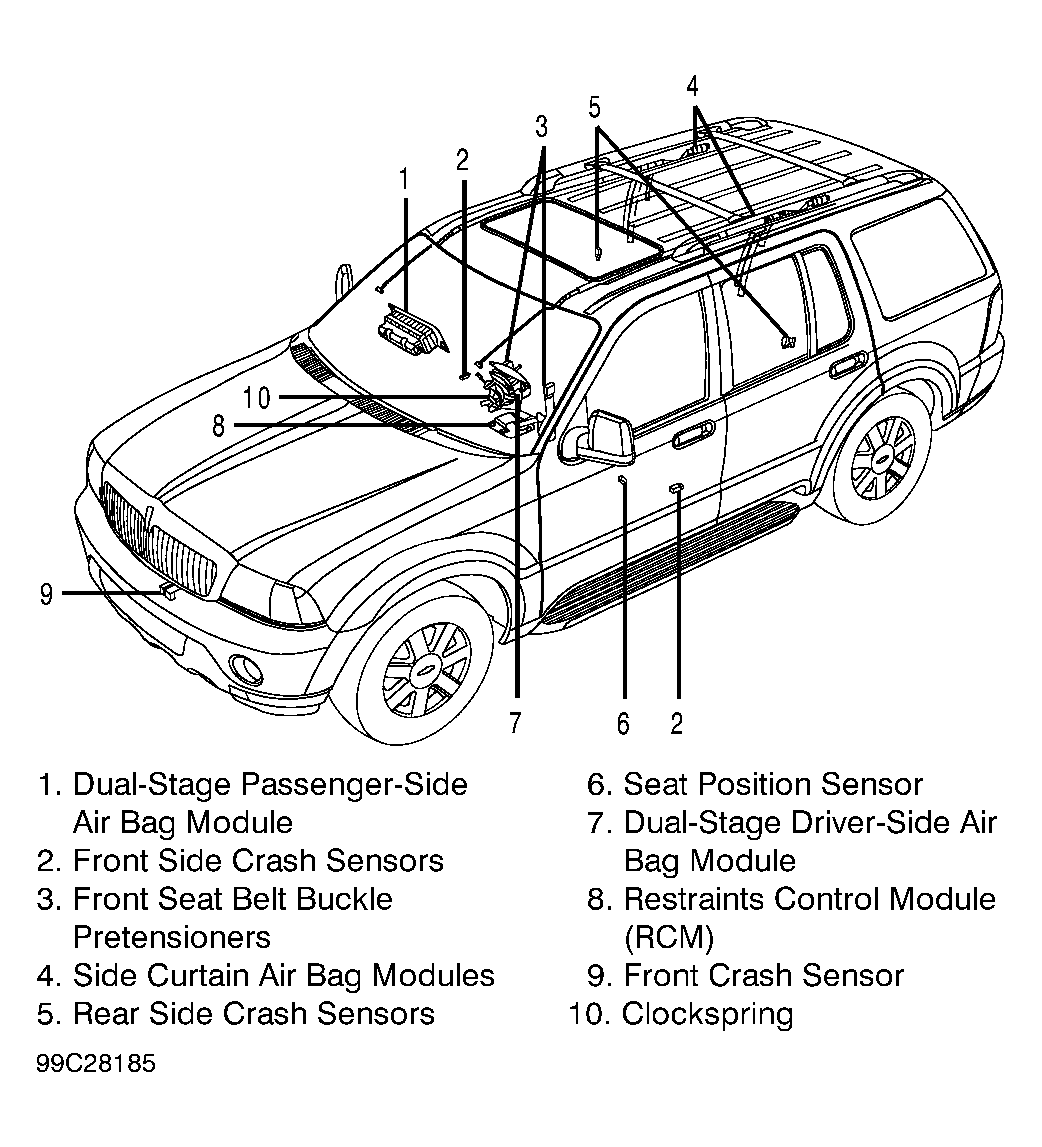

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Dual-stage driver-side air bag module | Center of steering wheel | ||
| Dual-stage passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Front crash sensor | Bottom of hood latch support bracket | ||
| Front side crash sensors | Base of right & left B-pillars | ||
| Restraints control module | On tunnel, under center console | ||
| Rear side crash sensors | Base of right & left C-pillars | ||
| Seat belt buckle switches | Integrated with front seat belt buckles | ||
| Seat belt pretensioners | Integrated with front seat belt buckles | ||
| Seat position sensor | On left front seat track frame | ||
| Side curtain air bag modules | Behind right & left sides of headliner, between A-pillar & C-pillar | ||
|
|||
