Torsion Bar Loading

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Safety glasses must be worn when carrying out this operation. Failure to follow these instructions may result in personal injury.
  1. If equipped, remove the luggage compartment lid motor. For additional information, refer to LUGGAGE COMPARTMENT LID MOTOR .
    2. NOTE: The luggage compartment lid tension should be decreased if the luggage compartment lid opens with more force than desired. The luggage compartment lid tension should be increased if the luggage compartment lid opens with less force than desired.
  2. Open and support the luggage compartment lid in the full-open position.
    3. WARNING: Use care when adjusting the luggage compartment lid torsion bar. It is under tension and could spring out of control if not handled correctly. Failure to follow these instructions may result in personal injury.

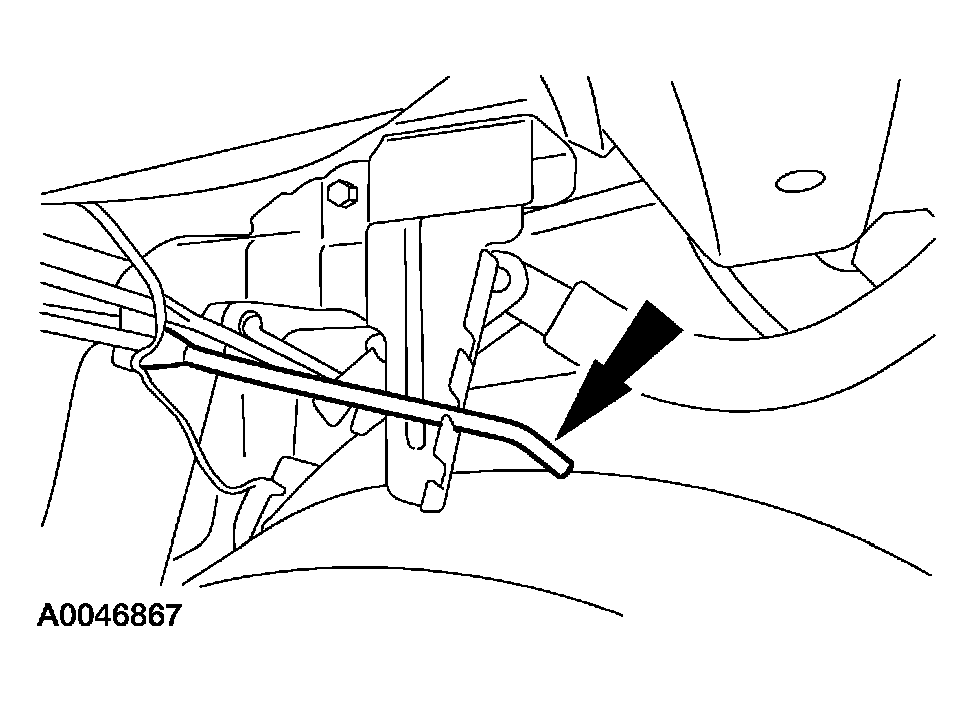

    Fig 1: Moving End Of Luggage Compartment Lid Torsion Bar
    G04011816Courtesy of FORD MOTOR CO.
  3. Move the end of the luggage compartment lid torsion bar to another position.
  4. Check the adjustment.
    5. WARNING: Use care when adjusting the luggage compartment lid torsion bar. It is under tension and could spring out of control if not handled correctly. Failure to follow these instructions may result in personal injury.
    Fig 2: Moving End Of Luggage Compartment Lid Torsion Bar
    G04011816Courtesy of FORD MOTOR CO.
  5. Move the end of the luggage compartment lid torsion bar to another position.
  6. Check the adjustment.
  7. If equipped, install the luggage compartment lid motor. For additional information, refer to LUGGAGE COMPARTMENT LID MOTOR .
  8. Carry out the initialization procedure. For additional information, refer to LUGGAGE COMPARTMENT LID MOTOR INITIALIZATION .
