Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, Refer to BATTERY, MOUNTING AND CABLES .
Disconnect the mass air flow (MAF) sensor electrical connector.

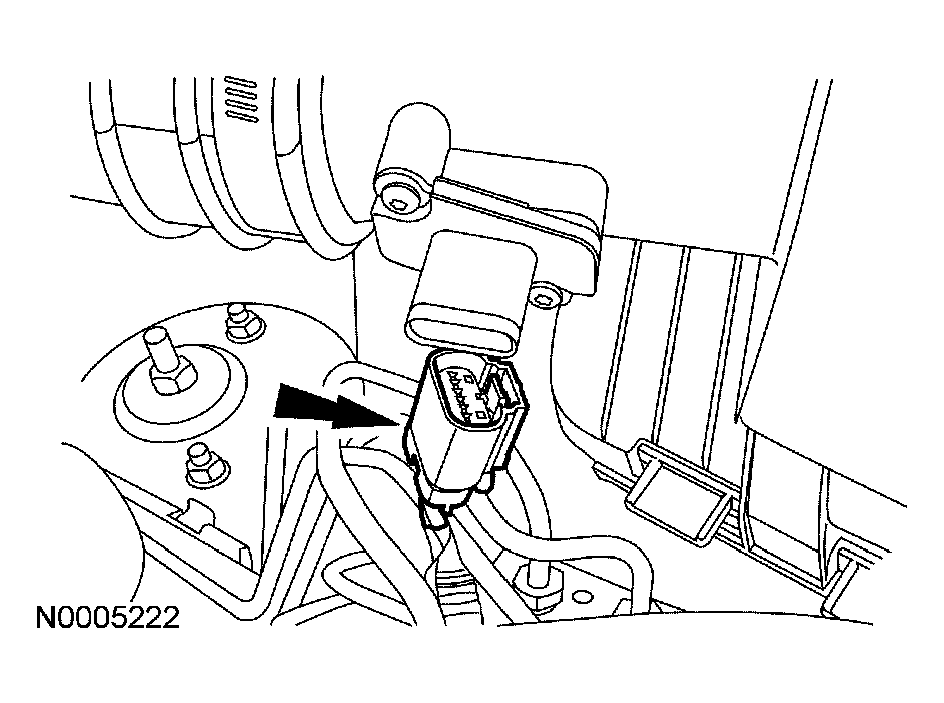

Fig 1: Disconnecting MAF Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the MAF sensor.
1. Remove the MAF sensor retaining screws.
2. Remove the MAF sensor.

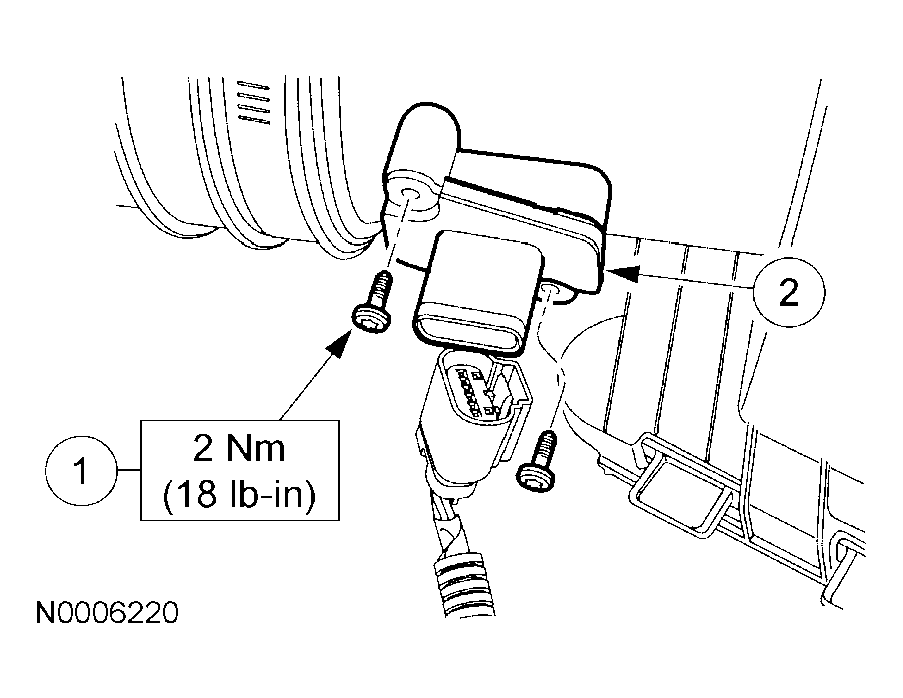

Fig 2: Removing MAF Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
