Mass Air Flow (MAF) Sensor
CAUTION:
The MAF sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.
- Disconnect the battery ground cable.

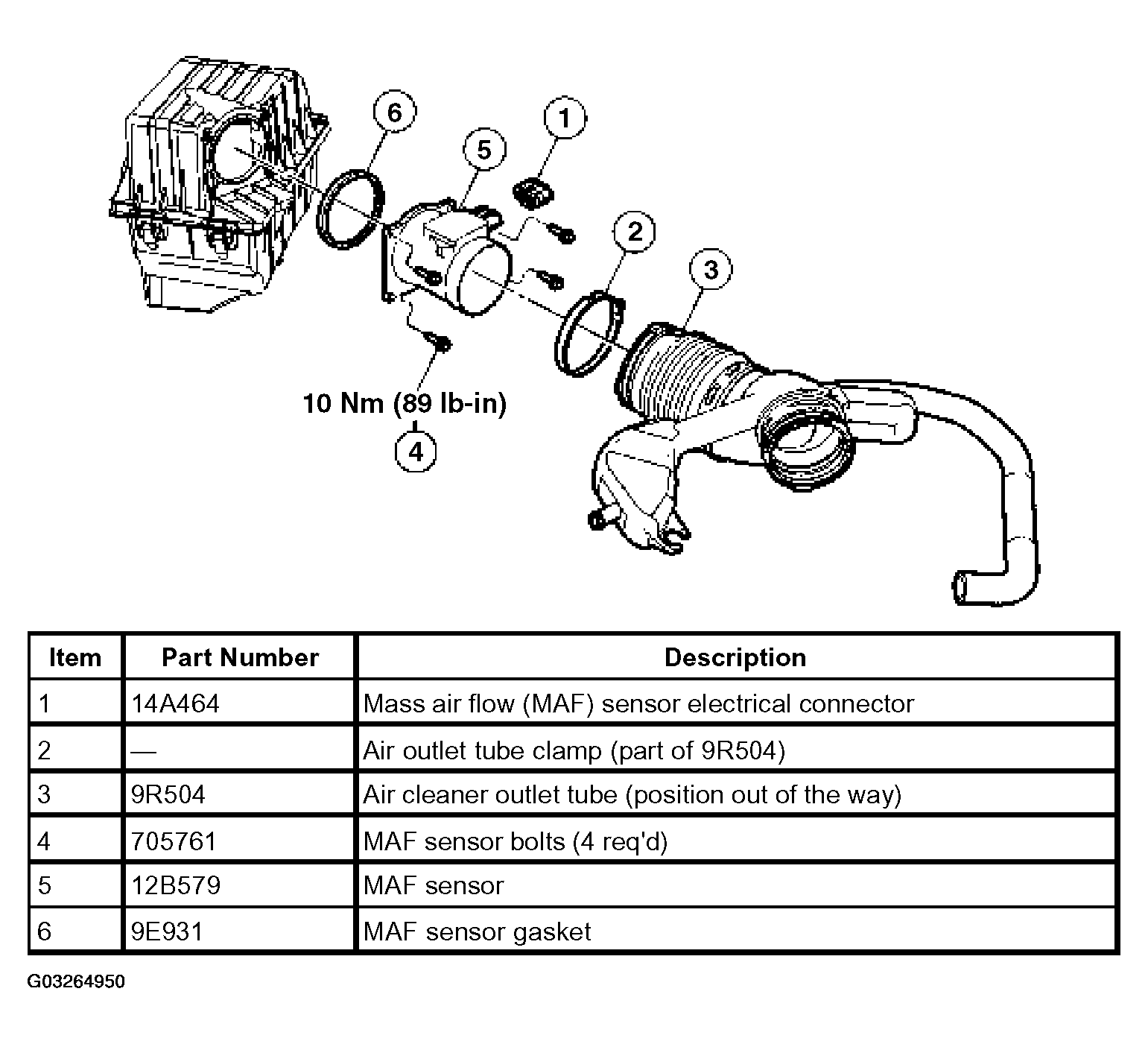

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
