Knock Sensor (KS)

  1. Disconnect the battery ground cable.
  2. Remove the lower intake manifold. For additional information, ENGINE .
  3. Remove the parts in the order indicated in the following illustration and table.

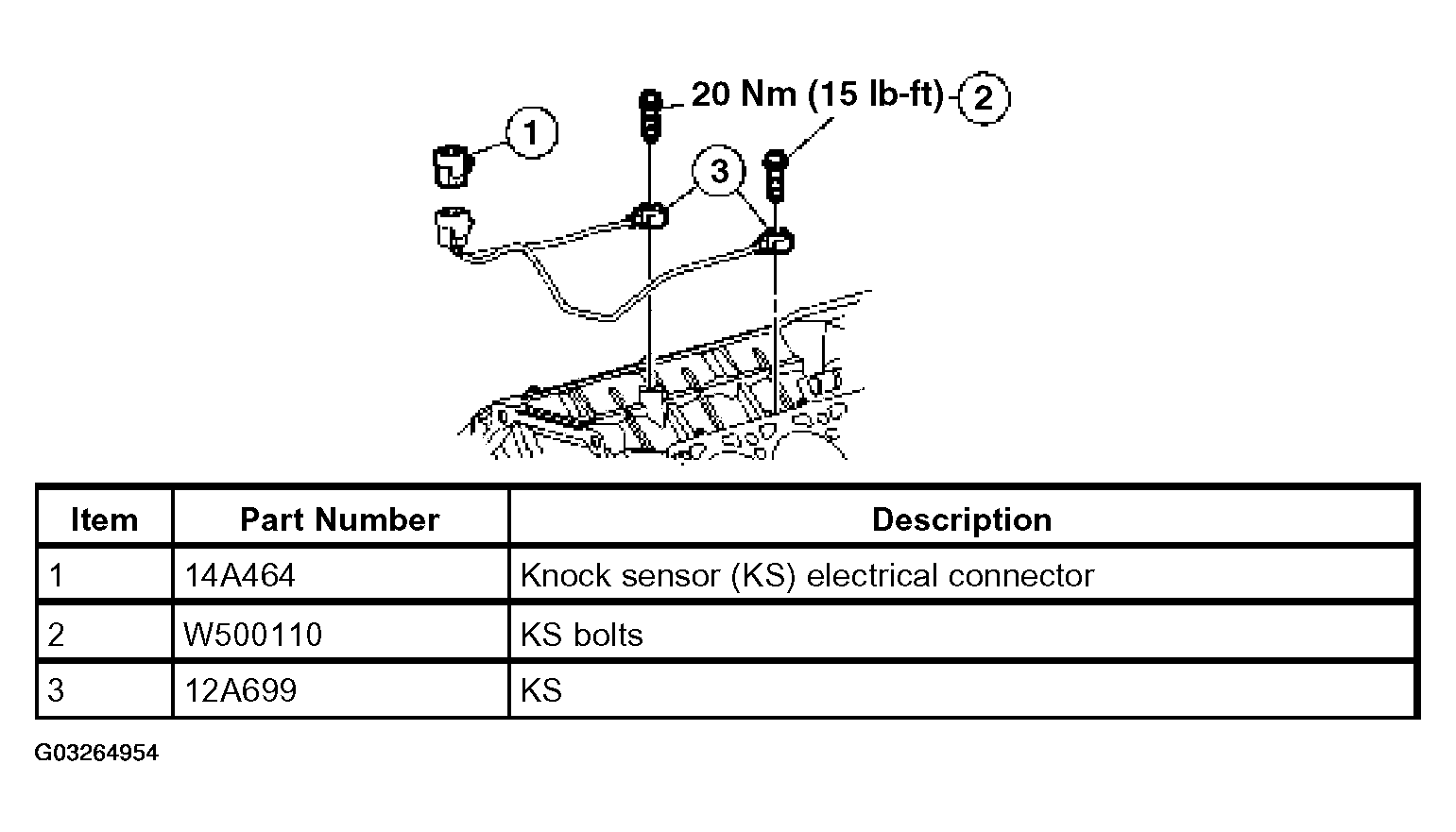

    Fig 1: Removing Knock Sensor (KS)
    G03264954Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
