Camshaft Position (CMP) Sensor

  1. Disconnect the battery ground cable.
  2. Remove the engine appearance cover.
  3. Remove the power steering reservoir and bracket. For additional information, refer to STEERING SYSTEM article.
  4. Remove the parts in the order indicated in the following illustration and table.

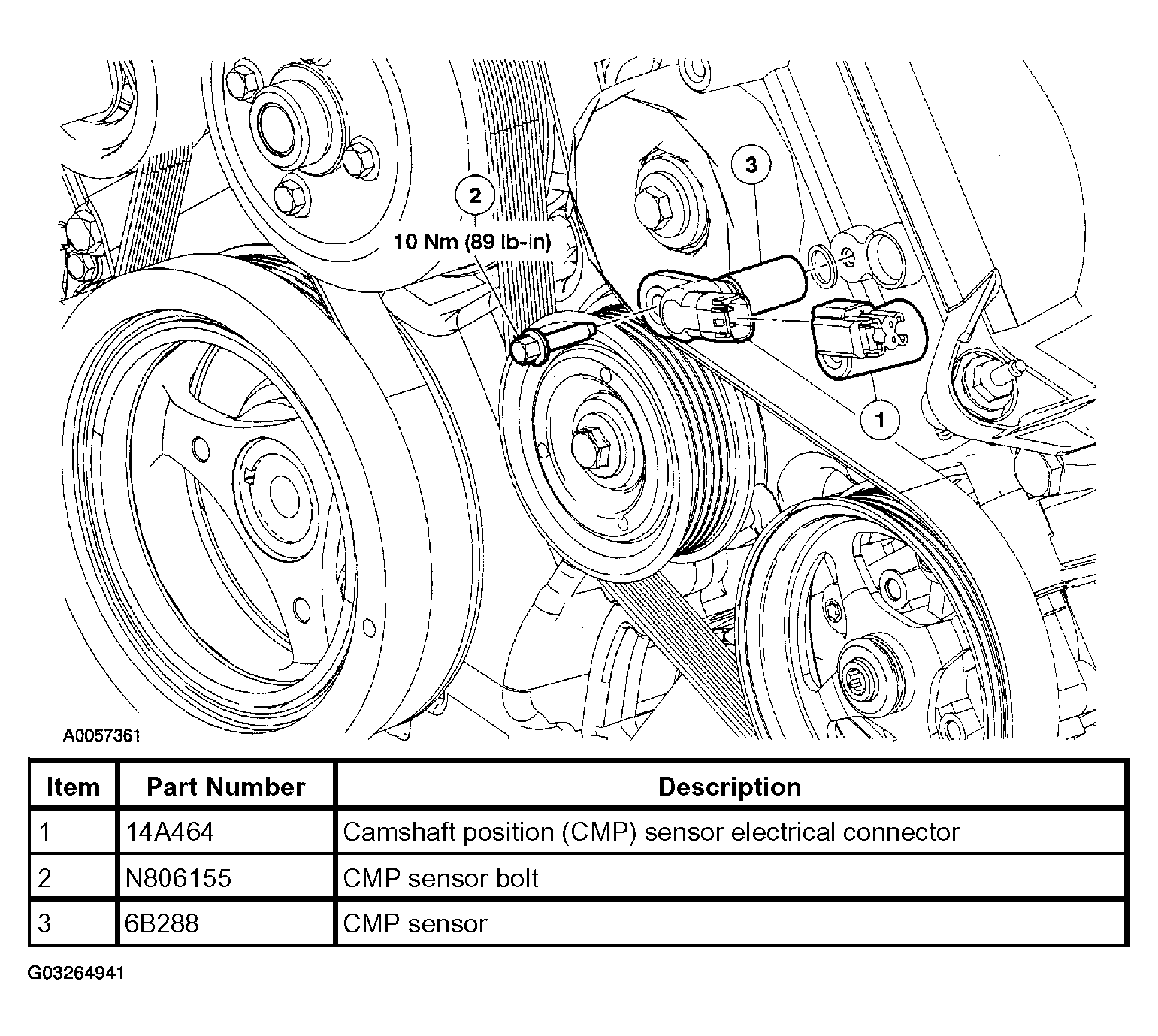

    Fig 1: Removing Camshaft Position (CMP) Sensor
    G03264941Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
