Push Rod Engines

  1. Inspect the roller for flat spots or scoring. If any damage is found, inspect the camshaft lobes and valve tappet for damage.

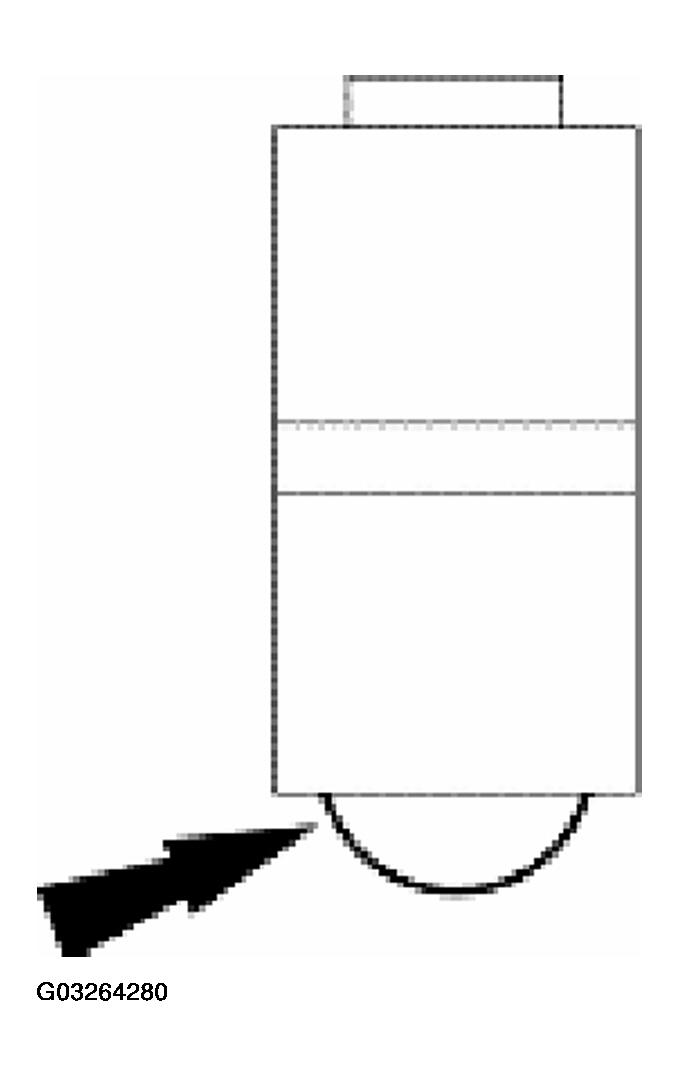

    Fig 1: Inspecting Roller For Flat Spots Or Scoring (Push Rod Engines)
    G03264280Courtesy of FORD MOTOR CO.
